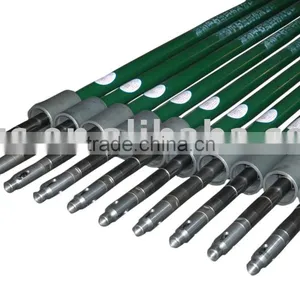

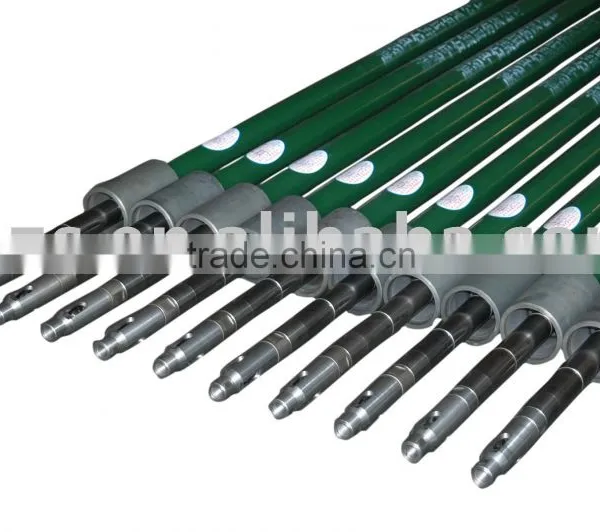

Help CenterSubsurface Sucker Rod Pump
Related Products
Specifications

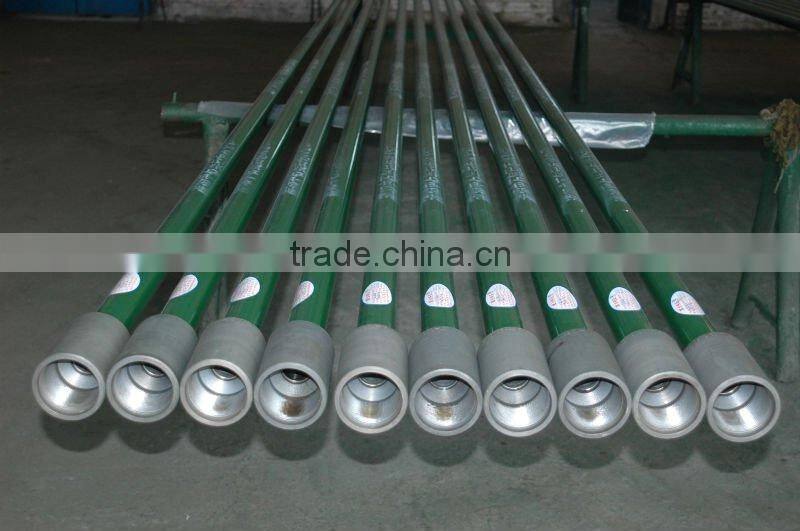

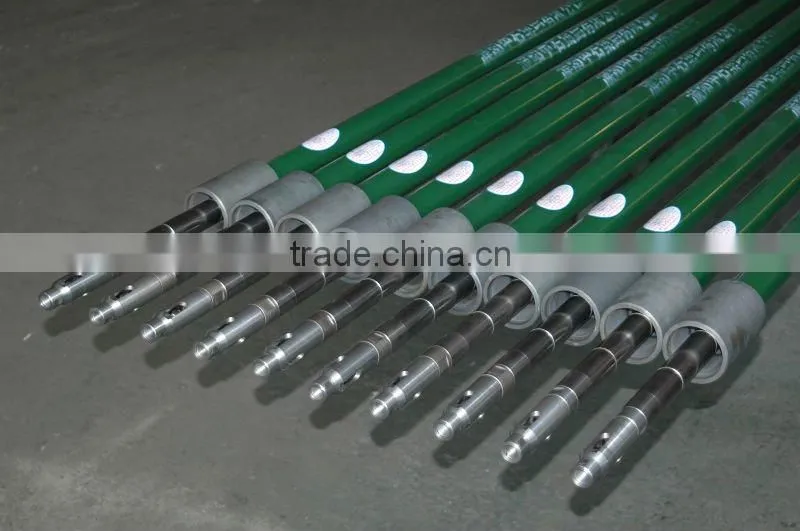

subsurface sucker rod pump1. API 11AX certificate
2. Corrosion resistance
3. anti-friction aspect.
specifications:

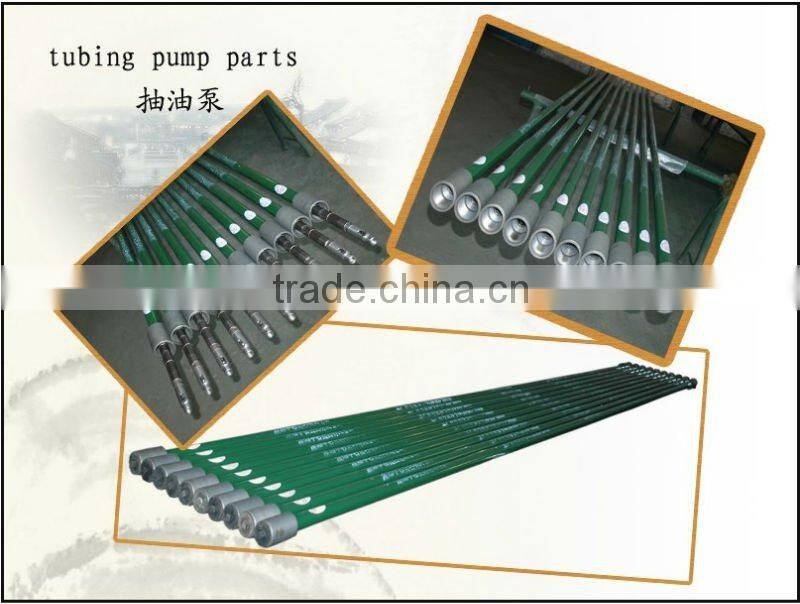

API tubing pump/ subsurface tubing pump/ sucker rod tubing pump/ high quality pistion pump
Technology parameter
|
Nominal diameter mm |
Length series of the plunger m |
Extension nipple length m |
Stroke range of the plunger m |
O.D. of the connecting oil pipe mm |
Diameter of the connecting pumping rod mm |
Pump constant m3/d |
Max. O.D. mm |
28 |
0.6 0.9 1.2 1.5 |
0.3 0.6 0.9 |
0.6-6.0 |
60.3,73.0 |
16 |
0.916 |
88.9 |
32 |
60.3,73.0 |
16 |
1.140 |
88.9 |
|||
38 |
60.3,73.0 |
16/19 |
1.642 |
88.9 |
|||
44 |
60.3,73.0 |
19 |
2.235 |
88.9 |
|||
57 |
73.0 |
19 |
3.694 |
88.9 |
|||
70 |
88.9 |
22 |
5.518 |
107 |
|||
83 |
101.6 |
22 |
7.707 |
114 |
|||
95 |
114.3 |
25 |
10.261 |
121 |
why choose us
1. Description :
Comparing with conventional tubing pump,The API subsurface sucker rod heavy wall tubing pump for oilfield has better performance in corrosion resistance & antifriction aspects.Plunger of it is nickel plated on alloy base,inside wall of barrel is plated hard cadmium,key parts,such as valve hood,valve ball,are made of materials with excellent mechanical performance and corrosion resistant property.Compared with conventional pump,the series of pump has a longer working life.
2. Features:

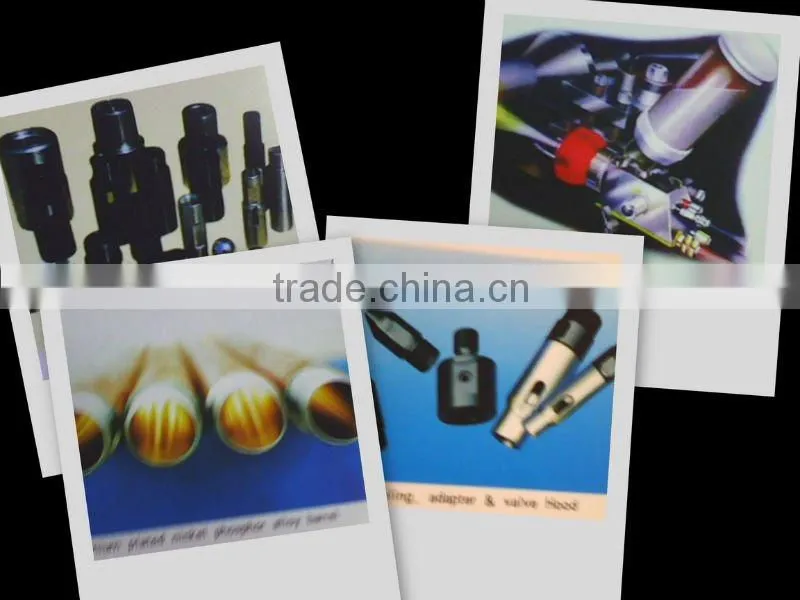

♦ Surface of the plunger is coated with nickel alloy and inside wall of the barrel is coated with hardness chrome.

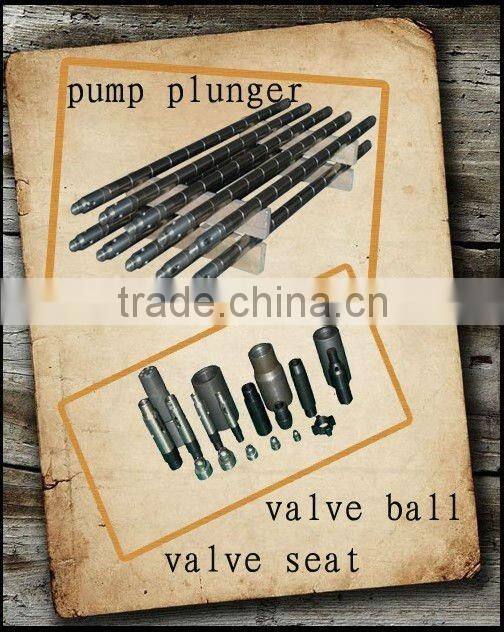

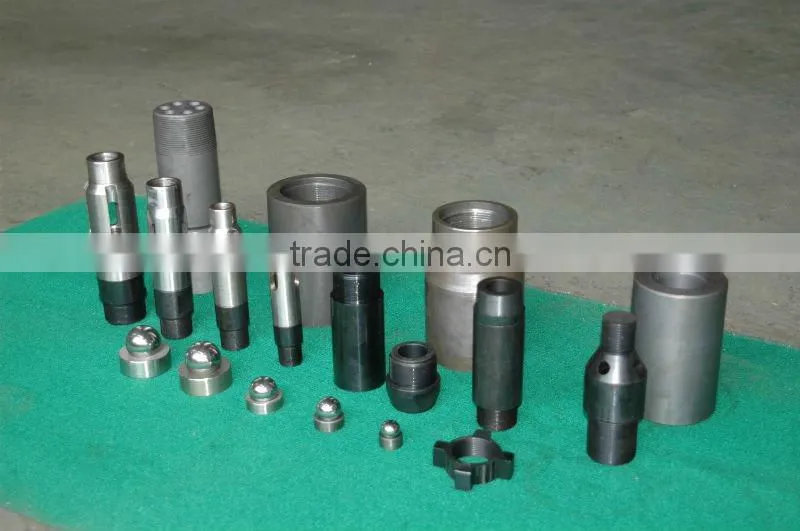

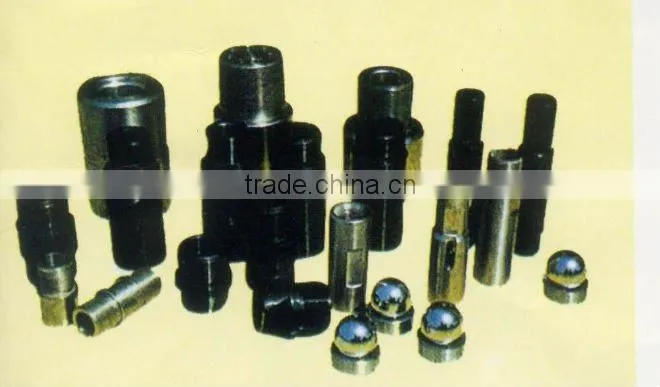

♦ All the main parts of valve case, ball, and seat are made of strong corrosion-resisting and excellent mechanical properties material.

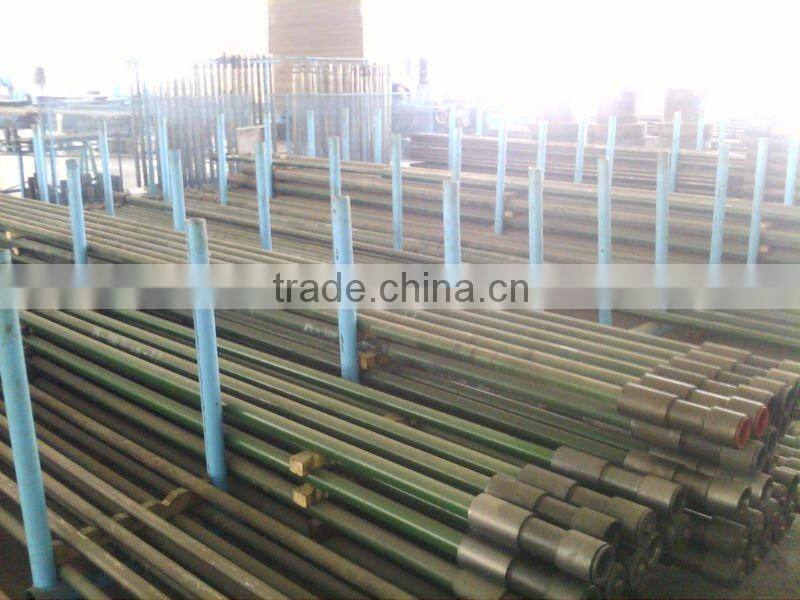

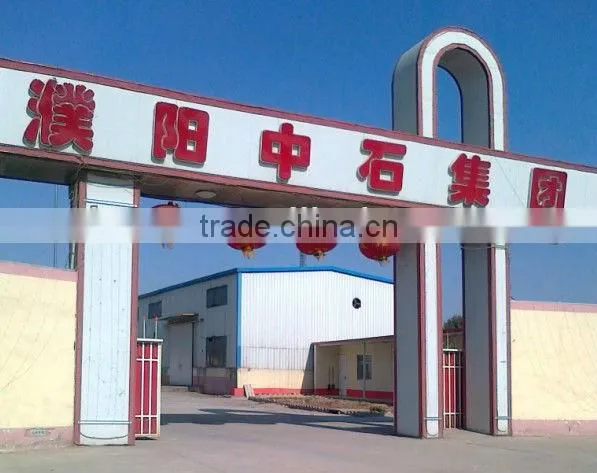

3. Welcome to our factory!!!
4. Our product range:
♦ pumping unit/ tubing pump/ sucker rod/ X-mas tree/ casing head/ casing pipe/ tubing pipe/ drill pipe/ polished rod/ coupling
♦ production packer/ water flow regulator/ tubing anchor/ safety joint/ screen pipe/ sand screen
♦ float collar/ float shoe/ casing centraliser/ stop collar/ cementing head/ stage collar/ cement basket/ cementing plug
♦ air cannon/ diesel fuel tank/ water jacket heater/ multifunction pressure vessel/ air tank
♦ mud tank/ shale shaker/ vacuum degasser/ desilter/ desander/ gas-luiquid separater/ mud gun/ centrifuge/ sand pump/ slurry agitator/ shear pump/ cyclone mixing device
♦ container house/ color steel sandwich panel house
♦ belt feeder
5. API certificate:
We are on contact now, all you have to do is sending me an enquiry or a call, you will get reply in 12 hours!
Sharpay's here waiting for you!
My skype: sharpay0308
TEL: 0086-151-3628-6271
