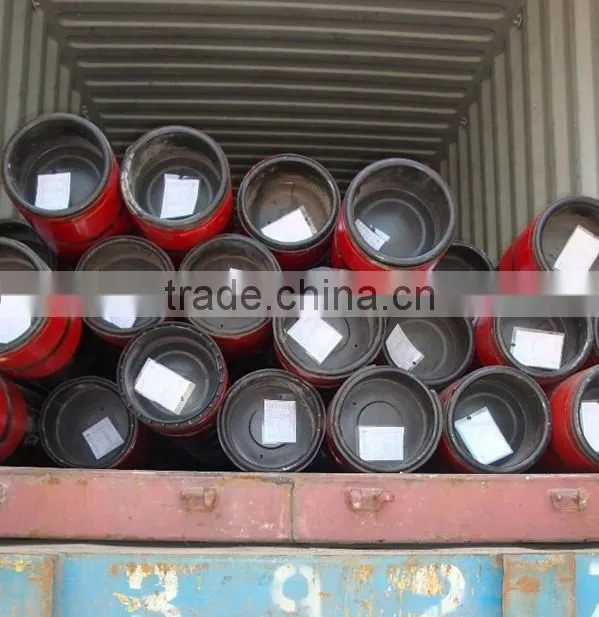

Help CenterAPI 5ct Casing Pipe Made of T95 Material
Related Products
-
BTC Connection Casing Pipe in N80 MaterialUS$ 1,000 - 1,700MOQ: 10 Tons -
Water Flow RegulatorUS$ 1,200 - 1,500MOQ: 1 Wp
-
Beam Pumping Unit, Beam Pump Jacks, Crank Balance Pumping UnitsUS$ 2,000 - 2,000MOQ: 1 Piece
-
Oilfield Mud Circulation Tank SystemUS$ 10,000 - 100,000MOQ: 1 Set
-
Integrated-style Well Drilling Solid Mud CleanerNegotiableMOQ: 1 Set
Specifications
API 5ct casing pipe1.Grades:J55,K55,N80,L80
2.OD:from 2-3/8"-13-3/8"
3.WT:from4.83mm to13.06mm
4. Length range:R2 R3
why choose us
1. specifications:
api casing pipe
Technology parameter
Size |
Outside Diameter |
Inside Diameter |
Grade |
Wall Thickness |
|||
in |
mm |
in |
mm |
in |
mm |
||
4-1/2 |
4.500 |
114.30 |
4.000 |
101.60 |
J55K55N80 |
0.250 |
6.35 |
3.920 |
99.57 |
J55K55N80 |
0.290 |
7.37 |
|||
5 |
5.000 |
127.00 |
4.408 |
111.96 |
J55K55N80 |
0.296 |
7.52 |
4.276 |
108.61 |
N80P110 |
0.362 |
9.29 |
|||
4.126 |
104.80 |
N80P110 |
0.437 |
11.10 |
|||
5-1/2 |
5.500 |
139.70 |
4.892 |
124.26 |
J55K55N80 |
0.304 |
7.72 |
4.778 |
121.36 |
N80 |
0.361 |
9.17 |
|||
4.670 |
118.62 |
N80 |
0.415 |
10.54 |
|||
7 |
7.000 |
177.80 |
6.366 |
161.70 |
J55K55N80 |
0.317 |
8.05 |
6.276 |
159.41 |
J55K55N80 |
0.362 |
9.19 |
|||
6.184 |
157.07 |
N80 |
0.408 |
10.36 |
|||
9-5/8 |
9.625 |
244.48 |
8.755 |
222.38 |
N80 |
0.435 |
11.05 |
8.681 |
222.50 |
N80 |
0.472 |
11.99 |
|||
10-3/4 |
10.750 |
273.05 |
10.050 |
255.27 |
H40 J55K55N80 |
0.350 |
8.89 |
9.850 |
250.19 |
J55K55N80 |
0.450 |
11.43 |
|||
13-3/8 |
13.375 |
339.72 |
12.615 |
320.42 |
J55K55 |
0.380 |
9.65 |
12.415 |
315.34 |
J55K55N80 |
0.480 |
12.19 |
|||

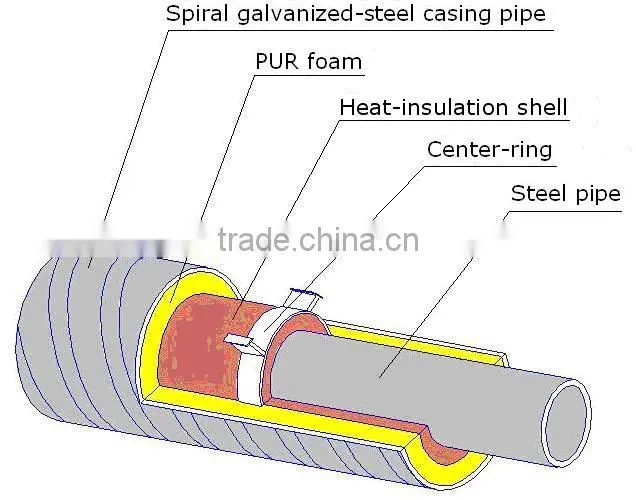

2. Structure chart for your reference:

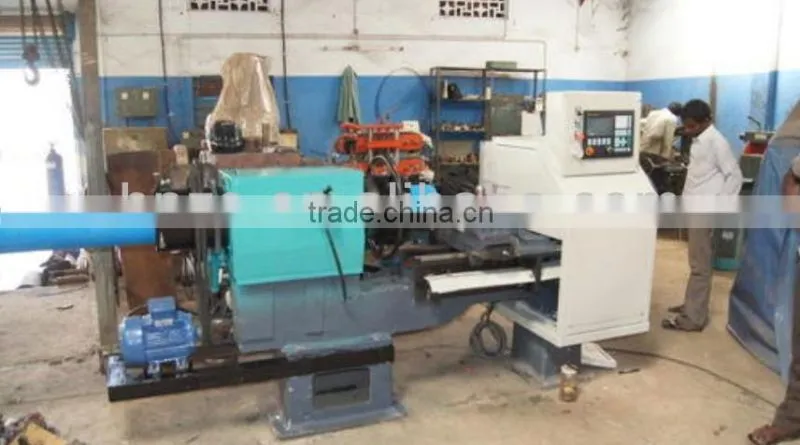

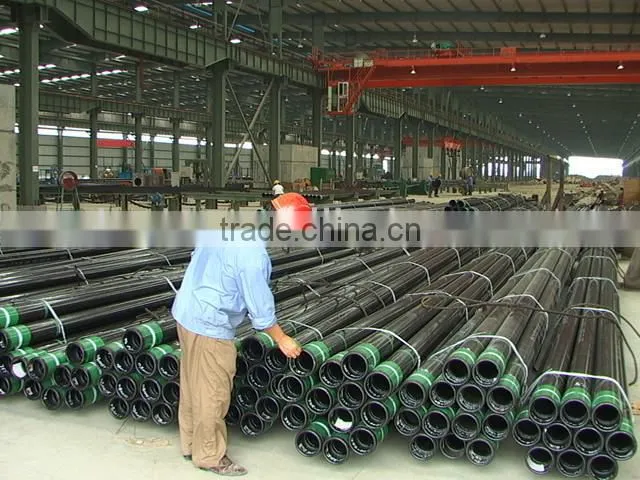

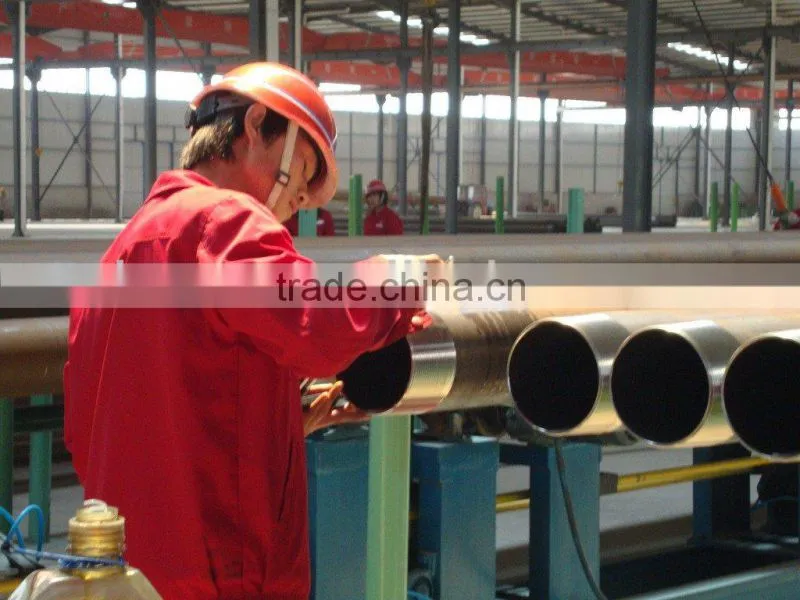

3. Welcome to our factory!!!
4. Our product range:
♦ pumping unit/ tubing pump/ sucker rod/ X-mas tree/ casing head/ casing pipe/ tubing pipe/ drill pipe/ polished rod/ coupling
♦ production packer/ water flow regulator/ tubing anchor/ safety joint/ screen pipe/ sand screen
♦ float collar/ float shoe/ casing centraliser/ stop collar/ cementing head/ stage collar/ cement basket/ cementing plug
♦ air cannon/ diesel fuel tank/ water jacket heater/ multifunction pressure vessel/ air tank
♦ mud tank/ shale shaker/ vacuum degasser/ desilter/ desander/ gas-luiquid separater/ mud gun/ centrifuge/ sand pump/ slurry agitator/ shear pump/ cyclone mixing device
♦ container house/ color steel sandwich panel house
♦ belt feeder
5. API certificate--we are professional!
We are on contact now, all you have to do is sending me an enquiry or a call, you will get reply in 12 hours!
