Specifications

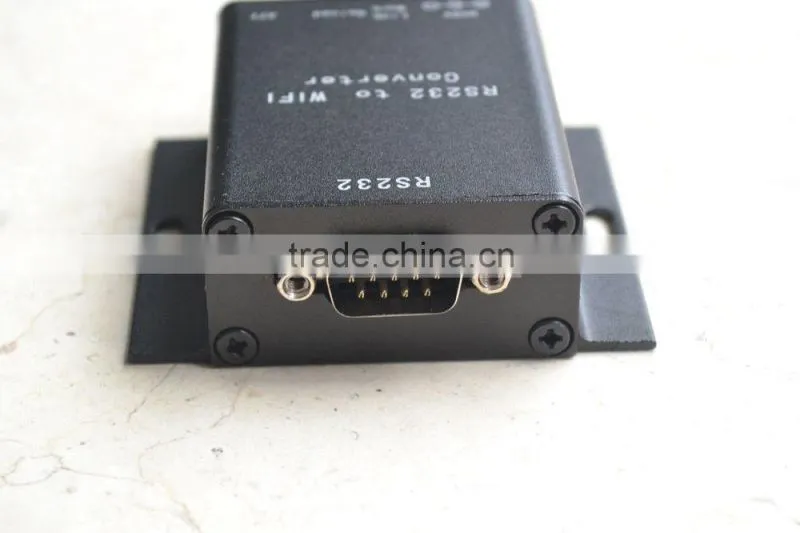

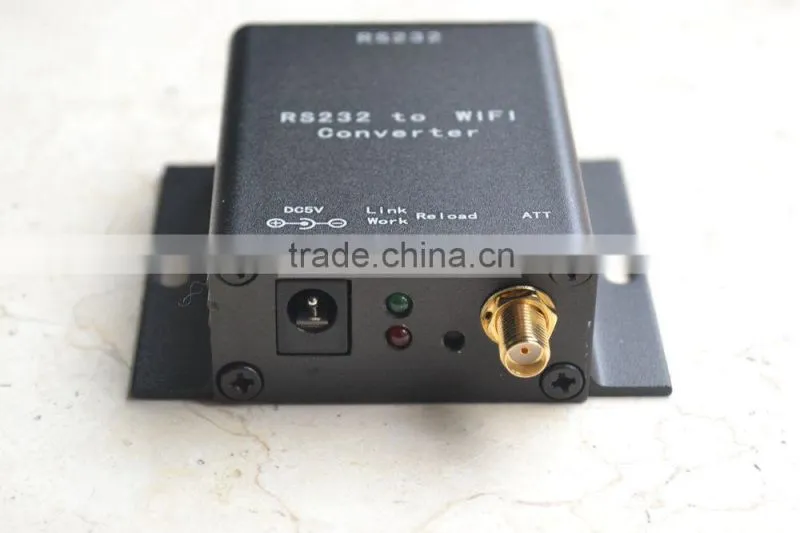

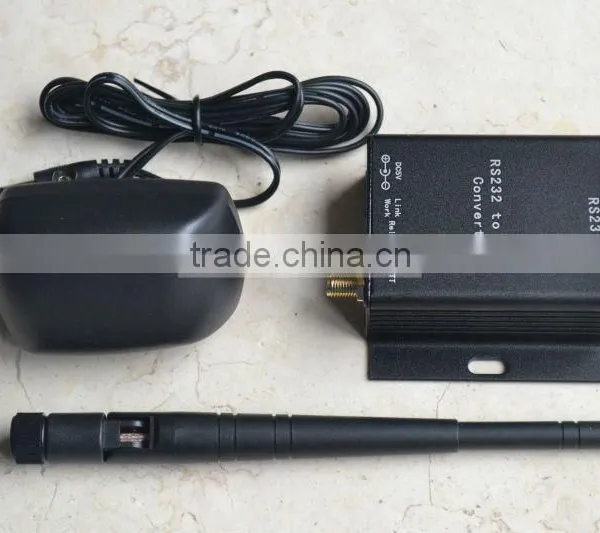

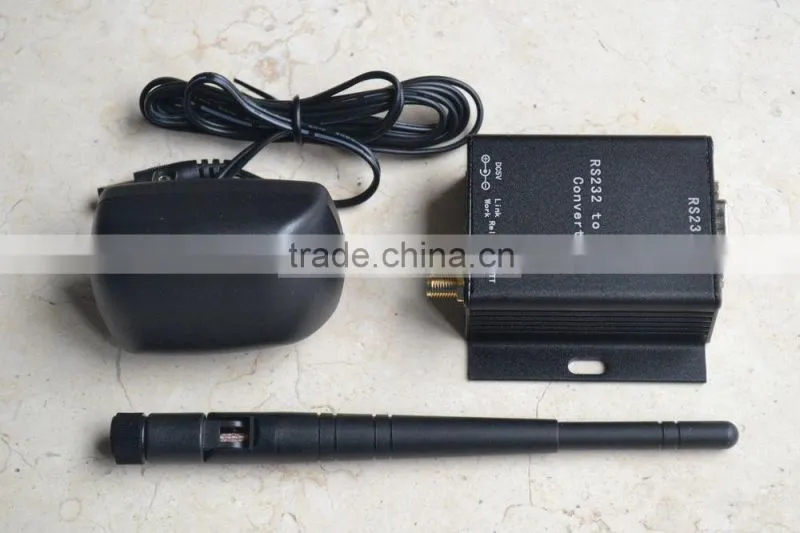

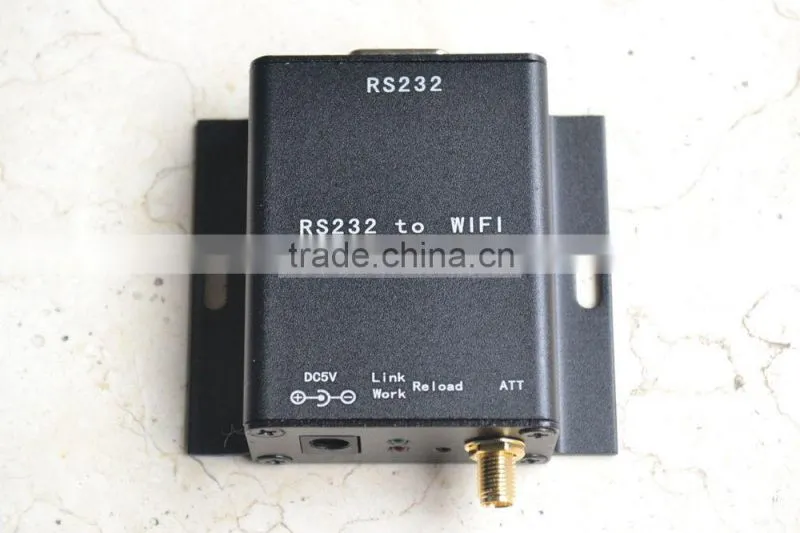

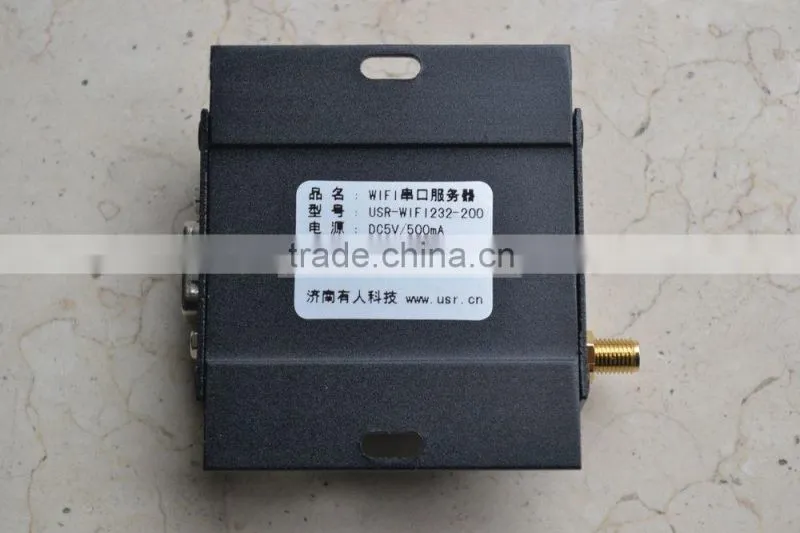

USR-WIFI232-200 Low-power WIFI serial port server serial RS232 to WIFI1.Model : USR-WIFI232-200
2.Ultra-low power embedded Wi-Fi module provides a solution to connect the user interface to transfer a physical device to a Wi-Fi wireless networks and provide UART serial port data. The module integrates hardware MAC, baseband chip , RF transceiver unit, and a power amplifier ; embedded firmware supports Wi-Fi protocol and configuration, as well as networking, TCP / IP protocol stack. USR-WIFI232-T is an integrated 802.11 b / g / n Wi-Fi , low -power solutions , through USR-WIFI232-T module , the traditional low-end MCU controlled serial device or equipment can be very convenient access to Wi-Fi wireless networks , enabling objects linked network control and management.
3.Using the industry's lowest -power embedded structure , and for the application of smart furniture , smart grid, handheld devices, personal medical , industrial control , etc. These low-flow low -frequency field of data transmission and do a professional optimization
4.Application areas:
Serial (RS232) turn WiFi;
WiFi remote control / monitoring , TCP / IP and Wi-Fi coprocessor ;
WiFi remote control aircraft , cars and other toys in the field ;
WiFi Internet radio, camera, digital photo frame ;
Medical instrumentation , data acquisition , handheld devices ;
WiFi fat , said smart card terminals ; domestic intelligence ;
Instrumentation, equipment parameter monitoring , wireless POS machines ;
Secondary development of other wireless -related application of modern agriculture, military and other fields .
Feature:
1.Single-stream Wi-Fi2.4 GHz, supports WEP, WPA/WPA2 security mode ;
2.MCU platform independent development , high cost ;
3.Fully integrated serial to Wi-Fi wireless capabilities ;
4.Support in a variety of power-saving mode with very low power operation ;
5.Support for multiple network protocols and Wi-Fi connection configuration functions ;
6.Support STA / AP / STA + AP coexistence mode ;
7.Smart Link supports intelligent networking capabilities ( provided APP);
8.Support for wireless and remote firmware upgrade ;

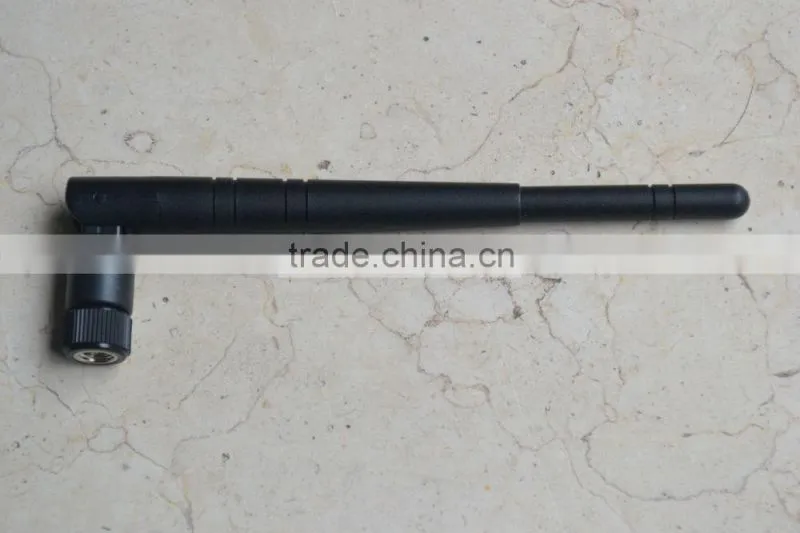

9.Optional pad outlet or external antenna connector ;
10.Supports up to 3 channels PWM signal output channels ;
11.Support DIP switch control module power supply ;
12.AT + instruction set provides a rich configuration ;
13.Ultra- small size :
14.3.3V single power supply ;
15.Support for low-power real-time operating systems and drivers ;
16.CE / FCC certification ;
17.RoHS compliant ;
18.Small size, low power, low cost , support WPS, support Smart-LINK.
