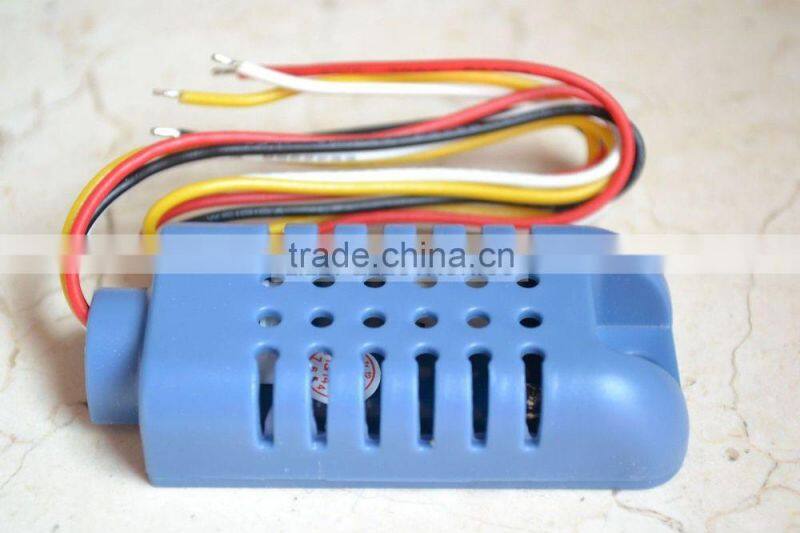

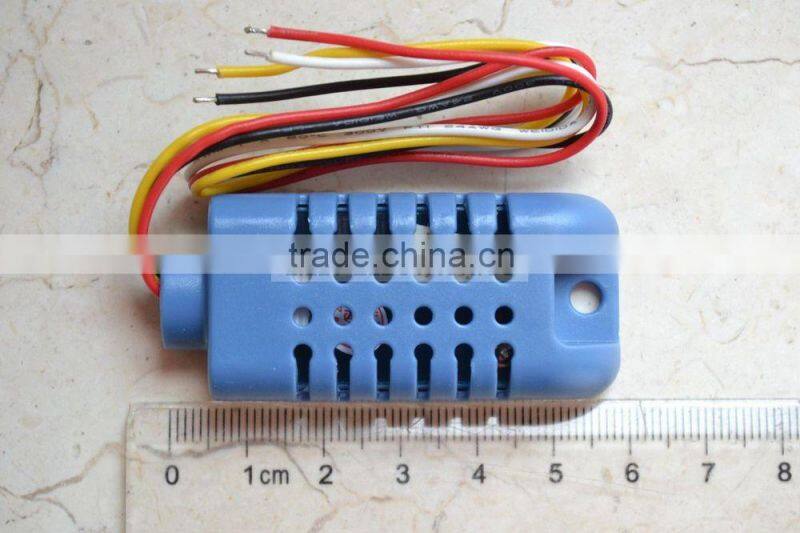

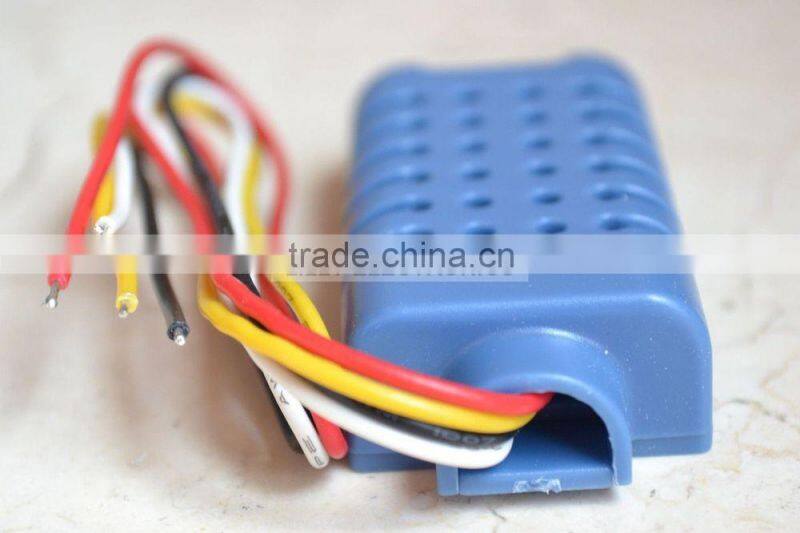

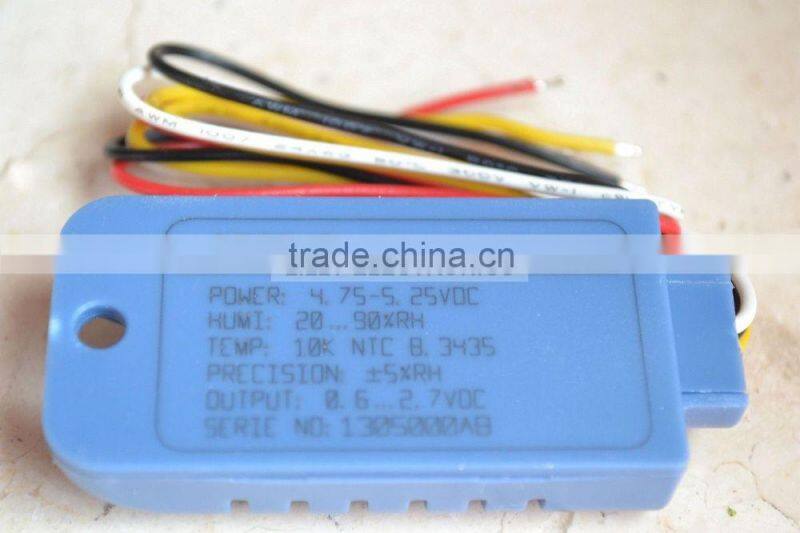

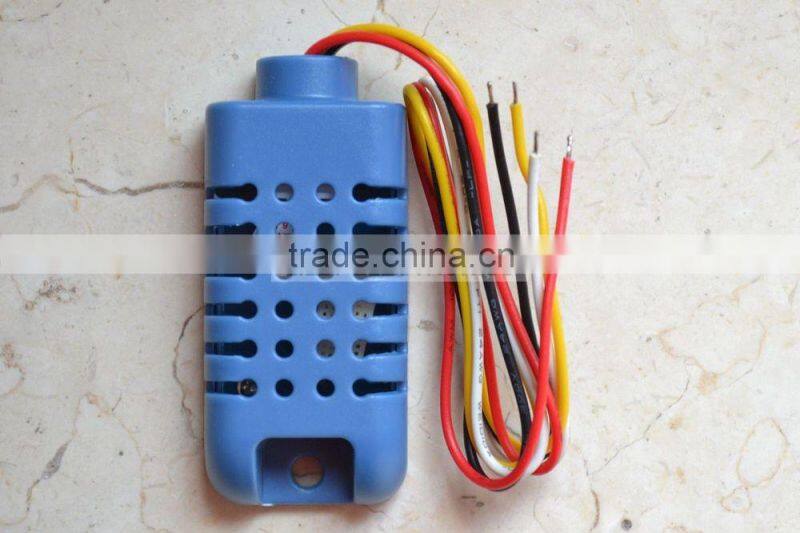

AMT1001 Resistive Temperature & Humidity Sensor Probe

Product Description





1. Low power



2. small volume



3. with temperature compensation



4. single-chip calibration linear output



5. high reliability



6. easy to use



7. inexpensive



Features

  • supply voltage (Vin): DC5V ± 5%
  • Current Consumption: 2mA (MAX 5mA)
  • Operating temperature range: 0 to 60 ° C
  • Humidity range: 95% RH (non condensing)
  • Humidity measuring range: 20 to 95% RH
  • Storage temperature range: 0 to 60 ° C
  • Storage humidity range: 95% RH (non condensing)
  • Humidity measurement accuracy: ± 5% RH (condition: at25 ℃)
  • The standard humidity output voltage: (conditions: at25 ℃, Vin = 5.0V)



Relative humidity(%RH) 20 30 40 50 60 70 80
Output voltage(V) 0.6 0.9 1.2 1.5 1.8 2.1 2.4







  • The temperature detection characteristics: ± 5% R (25 ℃) = 10Kω ± 5%
  • Temperature dependencies (11) (Reference): ± 5% RH (Vin = 5.00V DC ,40-80% RH,25 ℃ as the reference range of,0-50 ℃)
  • Voltage dependence (12) (Reference): ± 5% RH (at25 ° C 40 - 80% RHDC5V benchmark,4.75-5 .25 V range)

Application

  • Air conditioners
  • Humidifiers
  • Dehumidifiers
  • Communication
  • atmospheric environmental monitoring
  • industrial process control
  • agriculture
  • measuring instruments
