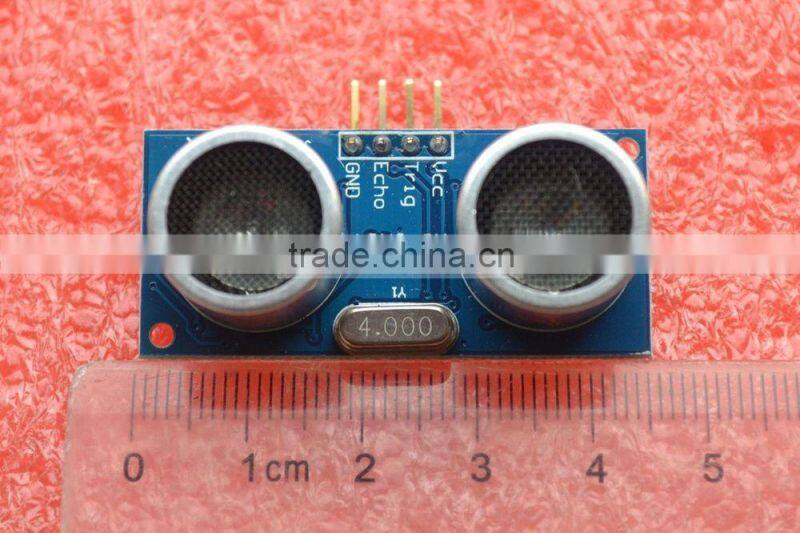

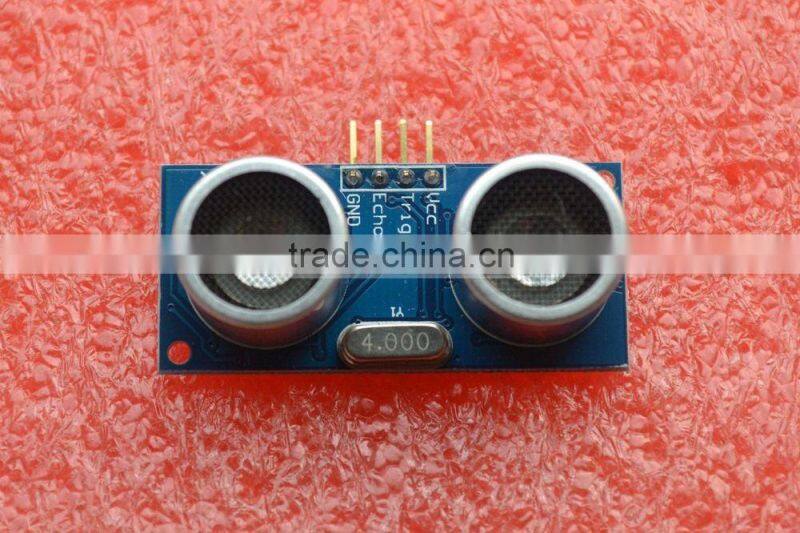

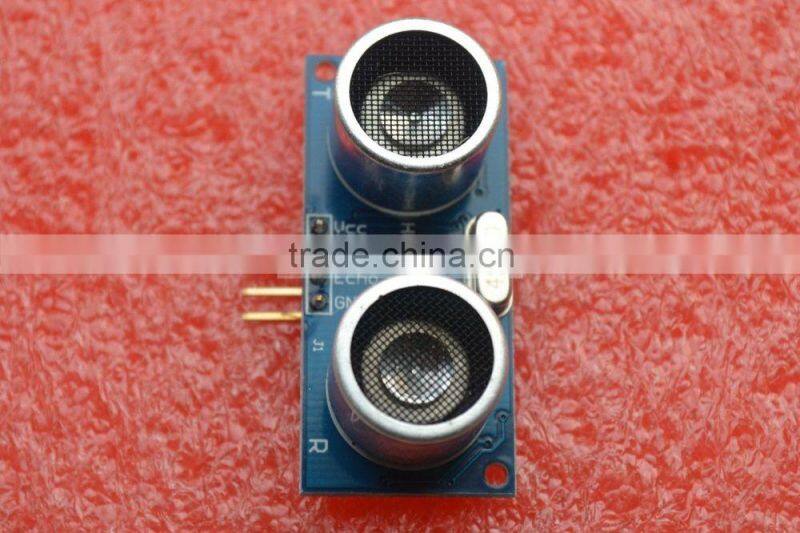

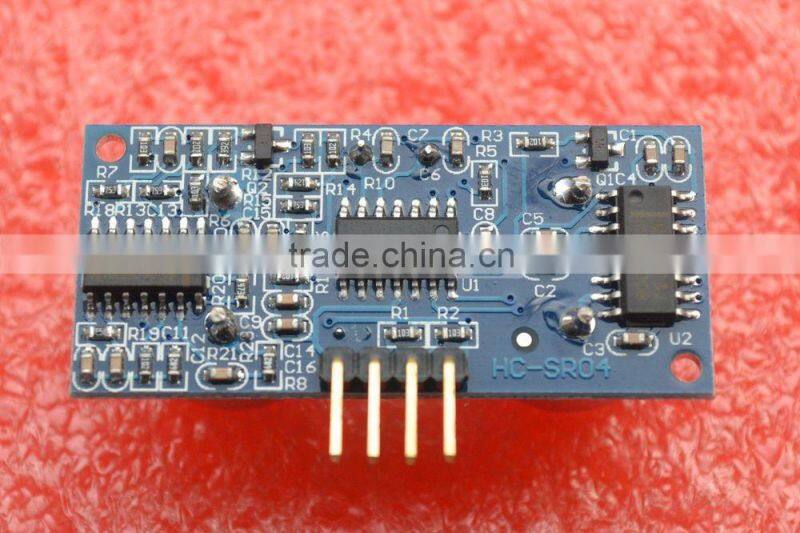

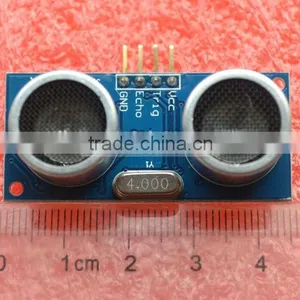

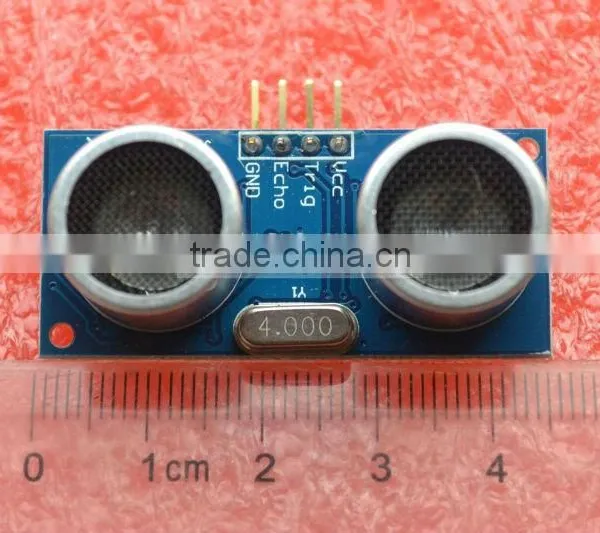

Help CenterSensor Module for Arduino HC-SR04 Sound Ultrasonic Range Distance
Related Products
-
Panel VU Meter 1PC SD-315D 500uA 650 64x53mm w/ LampUS$ 1 - 5MOQ: 10 Pieces -
Empty PCB Board for Arduino Solar Charger Shield -LiPo RiderUS$ 1 - 5MOQ: 10 Pieces
-
PCB Board Empty for Arduino Solar Charger Shield -LiPo RiderUS$ 1 - 5MOQ: 10 Pieces
-
Solar Charger ShieldPCB Board Empty for Arduino LiPo RiderUS$ 1 - 5MOQ: 10 Pieces
-
LiPo Rider Solar Charger Shield PCB Board Empty for ArduinoUS$ 1 - 5MOQ: 10 Pieces
Specifications
Stable performance, precise measure of distanceStable performance, precise measure of distance. And can compare with SRF05, SRF02 Ultrasonic Ranging Module. Module precision,blind spots (2cm) super close, stable distance measurement!
Feature:
Voltage: DC5V
Quiescent current: less than 2mA
Level output: 5V high
Level of output: 0V low
Induction Angle: not more than 15 degrees
Detection distance: 2cm-450cm
High precision: better than 2mm
Wiring, VCC, trig 's (control side), echo (receiving end), GND
Note:
(1) IO trigger ranging to at least 10us high signal;
(2) module automatically sends eight 40kHz square wave, automatically detect whether a signal return;
(3) a signal to return to a high IO output, high duration of the ultrasonic time from launch to return. Test distance = (time high * speed of sound (340M / S)) / 2
