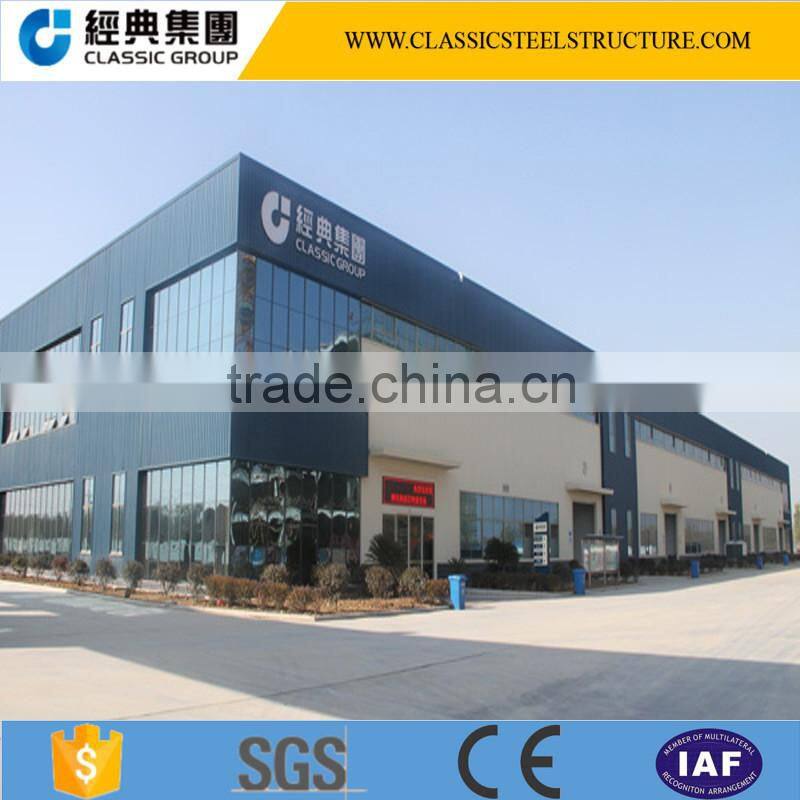

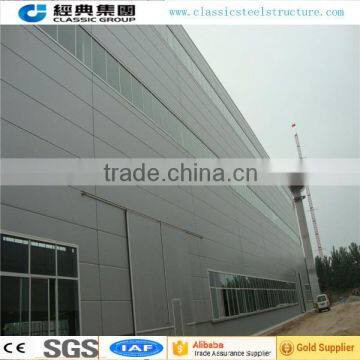

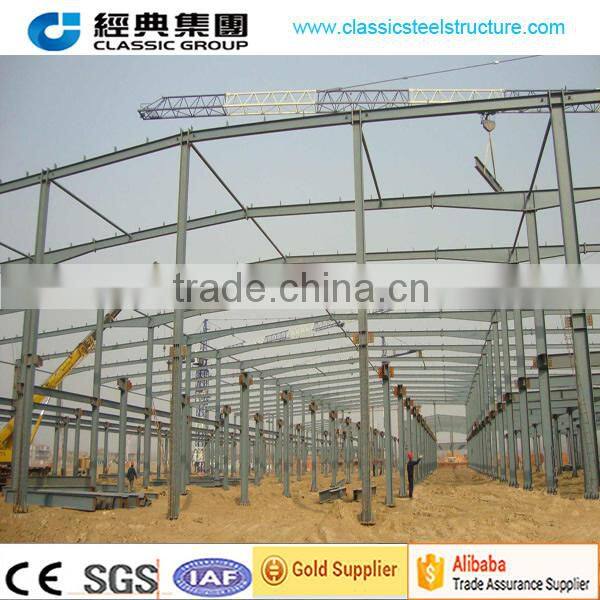

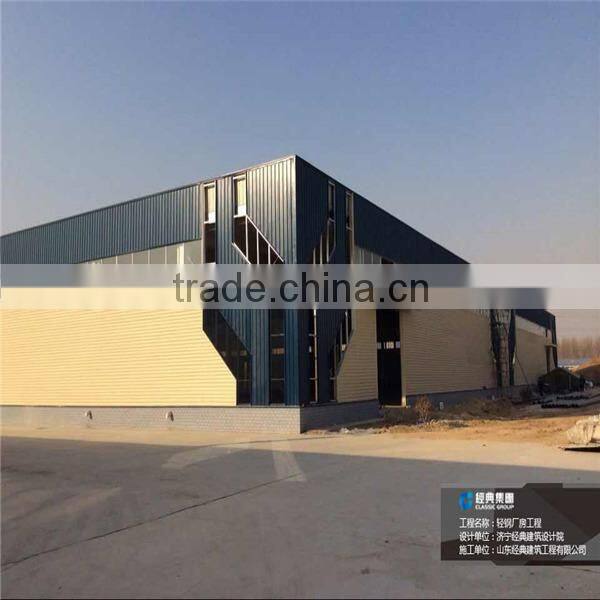

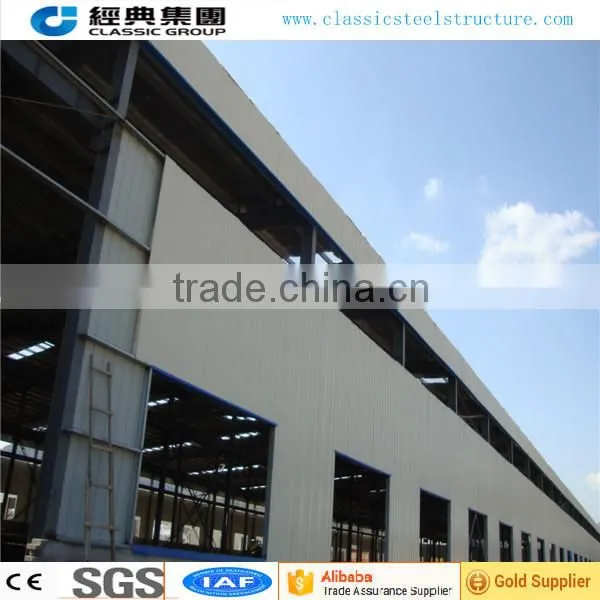

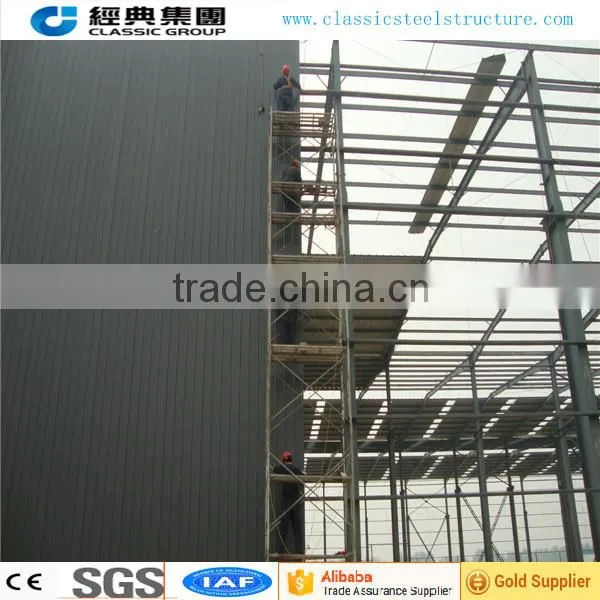

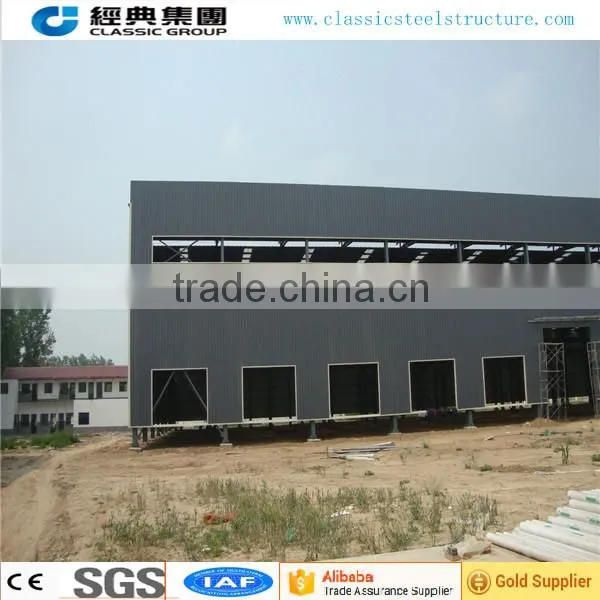

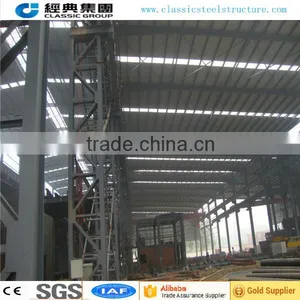

1000 square meter warehouse building
Our company video
| Goods Name | Customized design Light Steel Structur Warehouse |
|
| Dimensions | SIZE | MOQ is 300m2, width X length X eave height, roof slope |
| EAVE Height | 3 Meter - 30 Meter ( According to customers ) | |
| MOQ | 300 m2 | |
| Type |
Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors |
|
| Specifications | Base | Cement and steel foundation bolts |
| Material | Q235B, Q345B or others as buyers' requests. | |
| Purlin | C PURLIN or Z PURLIN : Size from C120~C300, Z120~Z300 | |
| Bracing | X-type or other type bracing made from angle, round pipe, etc | |
| Surface | Two lays of Anti-rust Painting or Hot Dip Galvanized | |
| Bolt | Plain bolt and High-strenth bolt | |
| Roof &wall |
Single color corrugated steel sheet0.326~0.8mm thick,or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm, or as buyers' requests |
|
| Door | Sandwich panel sliding door , rolling door or as buyers' requests | |
| Window | Aluminium alloy window, PVC window | |
| Accessories |
Roof ventilators, Gutter, Rainspout , Saddles buckle , Waterproof plug , Sealant etc. |
|
| Advantages | 1. Lower cost but beautiful outlook. | |
| 2. High safety performance. | ||
| 3. Easy to assemble and dismantle | ||
| 4. Manufacture under complete quality control system---ISO9001 | ||
| 5. Installation with instruction of experienced engineers | ||
| 6. Non-pollution. | ||
| Usages | 1. workshop, warehouse, plant , garage | |
| 2. Steel structure frame | ||
| 3. Multi-story building or high rise building project | ||
| 4. Portal frame products | ||
| 5. Structure for smelting and chemical equipment | ||
| 6. Others steel structure buildings | ||
Our excellent design team will design the prefabricated light steel structure warehouse for you. If you give the following information, we will give you an satisfactory drawing.
1 Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
1. How to buy your idea products?
A: TT and L/C are acceptable and TT will be more appreciated. 50% deposit before producing, balance before loading by TT.
2.What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 15 to 30 days.
3. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
4.How to install after the goods arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
Payment : L/C or by T/T(30% prepaid as depsit, the balance 70% before shipment)
Delivery time : 15~40 days,usually as customers's order
Shipment : 20'GP, 40'GP,40'HQ, 40'OT or in bulk
Project detail:
Steel Structure,Steel Fabrication warehouse,Steel Construction workshop ,prefabricated steel structuree
Item Name |
Structural steel prefab warehouse |
Size |
Length,Width,Roof Height and Eave Height |
Roof and Wall |
Single layer corrugated sheet sheet or EPS/Rock Wool/PU sandwich panel |
Door and Window |
Rolling up / sliding / side-hung door and window |
Column and Beam |
Hot rolled or welded H section beam |
Purlin |
C-section and Z-section |
Surface |
Twice anti-corrosive primer 60μm |
Local Climate |
1.Wind speed 2.Snow load 3.Earthquake grade if have etc. |
Crane parameter |
If need crane beam, parameter is in need. |
Drawing |
1. Quote as per clients' drawing 2. Design as per clients' requests. |
Package |
Bulk cargo in container or as per requests. |
Load into |
20' GP or 40' GP |
Customers Visting
light steel frame workshop/steel structure warehouse
light steel frame workshop/steel structure warehouse
Our Working Team
teel structure warehouse
Shandong Classic Heavy Industry Group Co., Ltd.
Steel Structure Warehouse
We are looking forward to your enquires.
