JP100-6S Fixed Swing Lens Polishing Machine
- Shanghai or Ningbo
- T/T Money Gram Credit Card
You May Like
Product Details
| Machine Type | Glass Edging Machine | Place of Origin | Henan, China | |
| Brand Name | Srate | Model Number | JP100-6S | |
| Certification | Other, ISO |
Product Description
Specifications
*Lens equipment polishing machine*Total power: 1.77kw
*Main Shaft motor: 0.55kw
*Adjustable angle
*Various lens diameter

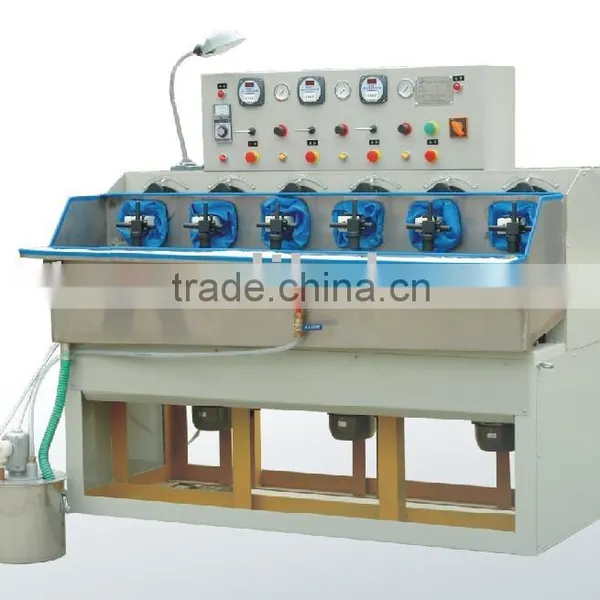

JP100-6S Fixed Swing Polishing Machine
Parameter:
1) Max Processing Diameter: φ100mm
2) Main Shafts Speed: 1210rpm
3) Pressure Shelf Adjustment Range: ±45°
4) Stylus shelf pressure: 2~25kgf
5) Main Shaft motor: 0.55kw
6) Power supply: AC 380V/3P/4W/50HZ
7) Pressure: 0.5-0.7MPa
8) Overall dimension: 1740x820x1450mm
9) Net weight: 550kg
10) Total power: 1.77kw
Feature:
* Model JP100-6S Fixed-swing Polishing Machine is high accuracy equipment mainly used for optical lens processing.
* With adjustable angle, the swing house applies to various parts of different curvature radius processing.
* Pressure adjustment can be achieved by pneumatic control, applying to lens processing of different diameters.
* The rotating shaft structure of the stylus realizes a more flexible and stable processing and high accuracy of optical parts processing is achieved.
