Specifications
Lens Polishing Machine1.Easy and simple operation
2.Reliable performance
3.Optic processing machine
4.Moderate price

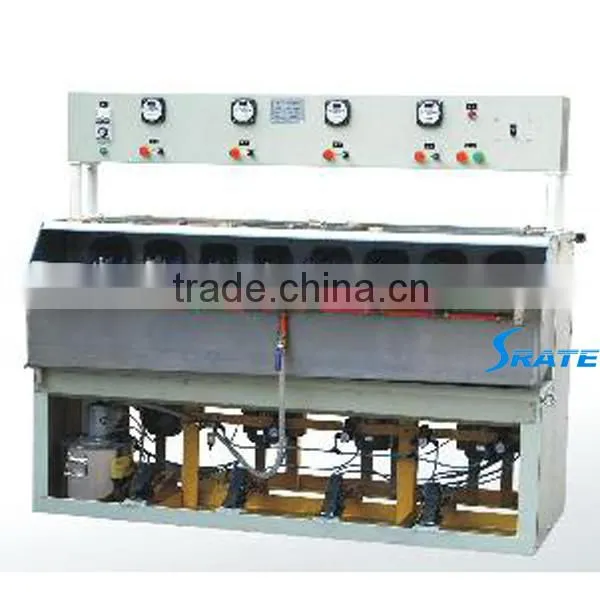

HS-8 High-Speed Spherical lens Polishing Machine for 3-50mm diameter
Parameter:
1) Processing diameter: φ3~φ50mm
2) Shaft speed: 780/1400rpm
3) Swing Shaft Speed: 70 times/min
4) Pressure of stylus: 1.5~18kgf
5) Pressure: 0.5~0.7MPa
6) Overall dimension: 1640x762x1640mm
7) Net weight: 800kgs
8) Total Power: 3.08kw
Feature:
* Model HS-8 High-Speed Polishing Machine is specialized in the processing of medium and small sized spherical lens.
* 8 shafts and the relative pressure head form the working system.Increasing the pressure by the pneumatic way, processing efficiency and the surface precision of the lens are greatly improved.
* Incessant adjustment of pressure is achieved through pneumatic control, ensuring the process of lens with different diameters.
* With easy and simple operation and reliable performance, the equipment is a perfect machine for optic process.
High quality,favourable price and good service.
