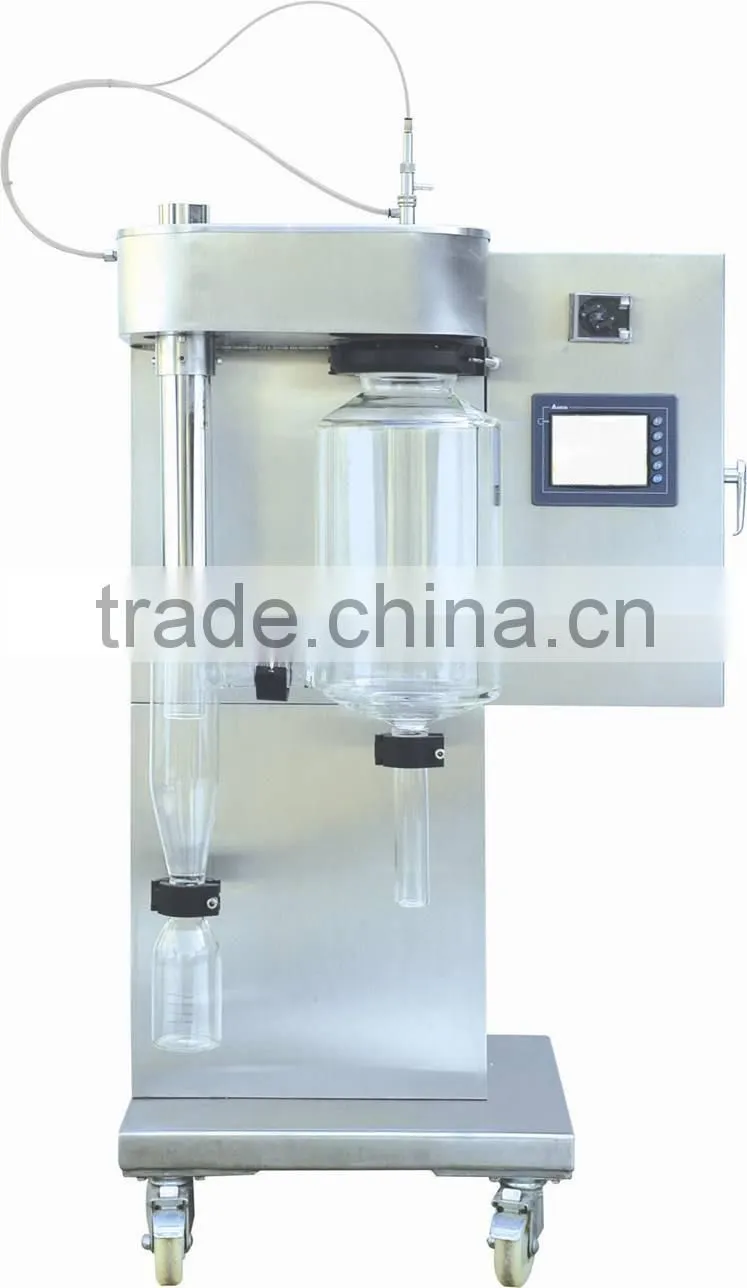

Laboratory Scale Spray Dryer
SPM-015, made by SPM Inc. cooperating with USA company on Spray drying research for many years, is self contained and supplied complete and ready for immediate operation.
All major components are housed within a stainless steel cabinet and the unit can be used on a bench top or with an optional staional stainless steel stand. The system was designed to be Stand by a keyboard, conducted by a colorful crystal screen of touch guidance mode ,and allowed two modes of run: Autoamtic-mode, and Eyemonitored mode for the purpose of easliy controlling experimental process.
SPM-015 micro-laboratory Spray apply to major colleges and universities, research institutes and pharmaceutical chemical industry, food production and laboratory micro-powder particles, such as the solution to all emulsion, with broad-spectrum applicability of the suspension for heat-sensitive Of dry material, such as biological products, bio-pesticides, such as enzymes, as a result of the materials emitted only in the size of the particles sprayed into a mist by the high temperature only, it is only moments to heat, to keep them active in the dry material still maintain its Active ingredient from damage.
Advantages:
Large color touch-screen operation, automatic control and manual control of the combination, the only of China:
Automatic Control: one-click start, settings spray process parameters, the temperature is scheduled to reach the temperature, peristaltic pump to start, touch-screen display running animation show a clear process to run; shutdown just stop button, the machine automatically safe Shutdown.
Manual control: For the experiment in the process of adjustment of process parameters can be easily switched to manual, the whole experiment color touch-screen dynamic display (animation).
Shutdown protection: shutdown just stop button, the machine in addition to fans outside the immediate cessation of operation of the equipment will not guarantee misoperation (forced Kwan fan) and lead to burn some of the heat.
Spray drying and collection system using transparent high-quality glass Pyrex heat-resistant materials, making spray-drying process in the most stable and pollution-free environment, and the whole process of spray-drying experiment can be directly observed, Researchers and process control of the experimental results provide a great convenience, time and found to solve the problem. All the glass components easy to be demolished, are easy to clean.
Built-in air compressor imports no oil, dusting the track stars were normal, good liquidity and very low noise, less than 60db, in line with the national laboratory standards for noise;
Second spray atomized fluid structure of the whole high-quality stainless steel materials used to create sophisticated, compact design, the need for ancillary equipment, user-friendly, never as good as new.
In order to meet the user adjust the parameters of the experimental scope of the request, in dry temperature control on the design of real-time control PID temperature control technology to enable full and accurate temperature control temperature, heating temperature accuracy of ± 1 .
In order to maintain the purity of the samples, equipped with a filter into the air.
Feed through into the feed peristaltic pump regulator, the smallest amount of samples up to 50ml. Optional magnetic stirrer
After the drying of the dry powder products, the particle size more uniform, more than 95% of the dry powder particles in the same range.
For viscous materials, with cleaner nozzle (-pin), was blocked in the nozzle, will be automatically removed, the frequency of needle-automatic adjustment;
Techniacl Information:
Max Evaporation capacity : 1500 ml moisture /hour
Air inlet temperature range 40 to 300 °C
Air outlet temperature range 40 to 140 °C
Dry Cycle time: 1.0-1.5S
Temp.Precision: ± 1 °C
Max. Sample feed: 32ml/ min
Min. Sample feed: 50ml/H
Option of nozzle size: (0.5/0.7/0.75/1.0/1.5/2.0/2.5).
Heater power: 3kw
Power supply: 220V 50/60 HZ SINGLE PHASE or According to your requirement
About SPM
Shanghai Pharmaceutical Machinery Co. Ltd. (SPM) is recognized as a major pharmacy equipment manufacturer and supplier. Our company is founded in Shanghai, China, with a base of 20 years
of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a
well-planned manner. We now offer a comprehensive line of quality pharmaceutical machines at
competitive prices. In addition, we can undertake turnkey projects for conceptual design, process
design, water treatment solutions, cleanroom design, etc.
Industries Served
At SPM, we focus on fabricating efficient and technically sound pharmaceutical machines that meet or exceed our customers' expectations. Our vast product selection caters to numerous industries, worldwide. Some of the areas we serve are
- Food Industry
- Pharmaceutical Industry
- Chemical Industry
- Electronic Industry
- Ceramic Industry
SPM Products
Our products fall into four categories, which are solid preparation machinery,iquid-injection processing
machinery, pharmaceutical packaging machinery, and laboratory instruments. Some of our primary products
are pulverizers, blenders, granulators, sterilizing machines, blister packing machines, encasing machines, air
compressors, and tablet testing instruments. Our solid preparation equipment and liquid processing equipmen,which are corrosion resistant, highly effective, safe, and easy to use, are utilized in countless applications.
For example, our rotary tablet press presses granular materials into tablets, our capsule filling machine is
suitable for filling powdered or granular materials into capsules, and our freeze drying machine is mainly
used for the cryodrying of blood products, vaccines, antibiotics, and biological products. For more product
applications, please see our product page to find a complete list of our pharmaceutical machinery.
International Markets
Our experience with pharmaceutical machinery throughout the world has built us a reputation as a
trusted pharmacy-equipment supplier. Currently, our products are exported to many parts of the
world, including Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romani,
Bulgaria, Russia, South Africa, Nigeria, USA, Australia, Canada, Argentina, Chile, and more.
Projects
Customer Service
Our excellent customer service also includes the installation of our machines. To ensure smooth
performance, we also provide a one year warranty, and a spare set of wearing parts to our customers.
If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.
Please contact us to help you with your particular spare parts of pharmaceutical equipment.
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2.Guaranteed:
We provide a one year warranty, and a spare set of wearing parts.
3.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
