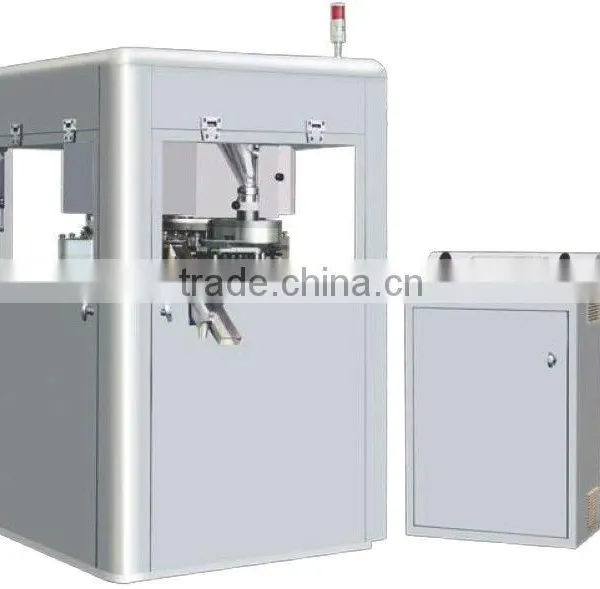

Help CenterGZPS Double Sided High Quality Tablet Press
Related Products
-
ZP 1100 Rotary Pill Press MachineNegotiableMOQ: 1 Set -
Good Quality TDP-1.5 Single Punch Tablet PressNegotiableMOQ: 1 Set
-
Easy Operation TDP-5 Single Punch Pill PressNegotiableMOQ: 1 Set
-
Hot Sell TDP-6 Single Punch Tablet PressUS$ 500 - 150,000MOQ: 1 Set
-
Automatic ZP25 Rotary Tablet PressNegotiableMOQ: 1 Set
|
High pressure, large diameter of tablets, high yield, accurate and easy maintenance! The advanced and reasonable design is the foundation of extraordinary quality of production, with a combination of years of experiences on producing high-speed tablet press and modern technology, a new design idea of GZPS series double-sided high-speed tablet press fulfilled the standardization, modularization and serialization of production. GZPS series possess advantages as high accuracy, high speed and high-degree programmed automation and capable to be the ideal equipments for mass production of tablets. Meets GMP requirements. can press two layers tablets with different colors, annular tablets, round tablets, engraved tablets and irregular tablets. Available for pharmaceutical factory, food and chemical industries.
Technical parameters |
Data/Model |
GZPS-49 |
GZPS-61 |
GZPS-73 |
GZPS-79 |
No. of stations |
49 |
61 |
73 |
79 |
Tooling type |
D |
B |
BB |
BBS |
Output range(Tablets/h) |
94000~423000 |
117000~526000 |
140000~630000 |
140000~680000 |
Rotation speed range(rpm) |
16~72rpm |
|||
Main pressure |
100KN |
|||
Pre-pressure |
100KN |
|||
Max tablet diameter |
Ø25mm |
Ø16mm |
Ø12mm |
Ø11mm |
Max length of irregular tablet |
25mm |
19mm |
16mm |
13mm |
Diameter of die |
Ø38.1mm |
Ø30.18mm |
Ø24mm |
Ø22mm |
Max. filling depth |
20mm |
20mm |
16mm |
16mm |
Main motor power |
11Kw |
|||
Diameter of punch |
25.35mm |
19mm |
||
Pitch circle diameter |
680mm |
|||
Weight |
4800Kg |
|||
Dimension of machine |
1300 X 1300 X 2000mm |
|||
Dimension of control cabinet |
890 X 510 X 1200mm |
|||

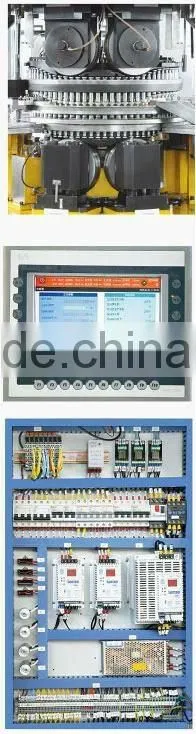

Performance
Automatic concentrative lubrication system;
Special oil proof, dust proof and noise proof system;
Isolated visual window with high clarity;

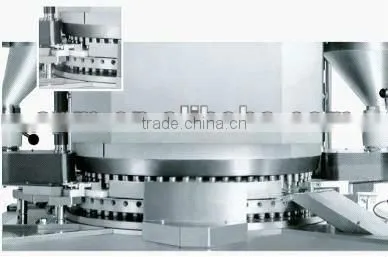

A 360°open structure of pressing chamber, without dead area. Easy to clean, operate and maintenance;
Special 4 poles construction ensures the machine to perform stably and durably;
Advanced international heat treatment of the punch turret makes it have supper longevity.
Same size of pre-press wheel and main-press wheel. The both wheels can be interchanged, which is propitious to removing air for material and extend the time of pressing;
Steel support for press wheel makes tablets formed best and ensures the consistency of thickness of tablets;
Enough space of replacement for both die and upper & lower cam tracks, it is easier for maintenance.
Adopts the mode of motor along with encoder to adjust the position of main press wheel and pre-press wheel, This ensures the high accuracy.
Separate control cabinet to operate the machine; separated production area from operating area; ensures the safety for operator and sanitation for production;
Adopts 10 inches touch screen to fulfill the automatic controlling, without handwheels.
Adopts B&R PCC control system with quick and accurate response;
All information about manufacturing can be displayed, stored, extracted and reset;
Different degree of user’s password can be set.
Adopts automatic servo motor controlling; adjust dosing cam tracks; control the depth of filling, ensures high accuracy of tablets’ difference.
Tri-wheeled double deck feeding system;
Upper impeller is used for enhancing the fluidness of powder to equalize the density of powder;
Lower 2 impellers are used for filling and dosing to ensure the equality during filling.
About SPM
Shanghai Pharmaceutical Machinery Co. Ltd. (SPM) is recognized as a major pharmacy equipment manufacturer and supplier. Our company is founded in Shanghai, China, with a base of 20 years
of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a
well-planned manner. We now offer a comprehensive line of quality pharmaceutical machines at
competitive prices. In addition, we can undertake turnkey projects for conceptual design, process
design, water treatment solutions, cleanroom design, etc.
Industries Served
At SPM, we focus on fabricating efficient and technically sound pharmaceutical machines that meet or exceed our customers' expectations. Our vast product selection caters to numerous industries, worldwide. Some of the areas we serve are
- Food Industry
- Pharmaceutical Industry
- Chemical Industry
- Electronic Industry
- Ceramic Industry
SPM Products
Our products fall into four categories, which are solid preparation machinery,iquid-injection processing
machinery, pharmaceutical packaging machinery, and laboratory instruments. Some of our primary products
are pulverizers, blenders, granulators, sterilizing machines, blister packing machines, encasing machines, air
compressors, and tablet testing instruments. Our solid preparation equipment and liquid processing equipmen,which are corrosion resistant, highly effective, safe, and easy to use, are utilized in countless applications.
For example, our rotary tablet press presses granular materials into tablets, our capsule filling machine is
suitable for filling powdered or granular materials into capsules, and our freeze drying machine is mainly
used for the cryodrying of blood products, vaccines, antibiotics, and biological products. For more product
applications, please see our product page to find a complete list of our pharmaceutical machinery.
International Markets
Our experience with pharmaceutical machinery throughout the world has built us a reputation as a
trusted pharmacy-equipment supplier. Currently, our products are exported to many parts of the
world, including Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romani,
Bulgaria, Russia, South Africa, Nigeria, USA, Australia, Canada, Argentina, Chile, and more.
Projects
Customer Service
Our excellent customer service also includes the installation of our machines. To ensure smooth
performance, we also provide a one year warranty, and a spare set of wearing parts to our customers.
If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.
Please contact us to help you with your particular spare parts of pharmaceutical equipment.
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2.Guaranteed:
We provide a one year warranty, and a spare set of wearing parts.
3.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
