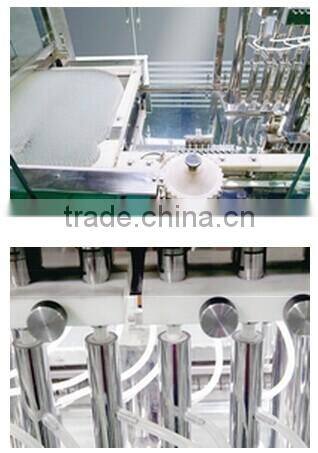

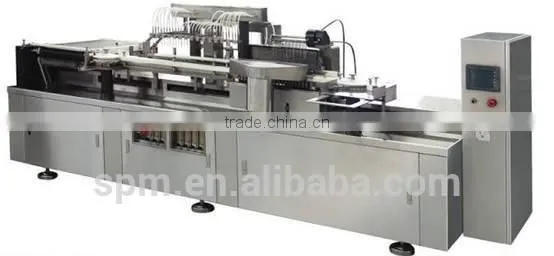

Help CenterAGF Series Ampoule Filling and Sealing Machine
Related Products
-
GFX Series Automatic Liquid Filling MachineUS$ 1 - 8,888MOQ: 1 Set -
BQD Semi Automatic Pneumatic Filling MachineNegotiableMOQ: 1 Set
-
Washing/Filling/Sealing 3-in-1 Drink Filling MachineNegotiableMOQ: 1 Set
-
GC-1 Semi Automatic Pneumatic Cream Filling MachineNegotiableMOQ: 1 Set
-
GFX Automatic Liquid and Cream Filling MachineNegotiableMOQ: 1 Set
Specifications
It is applicable for water and air spray washing.Hot air laminar dryand sterilize, multiple needle filling and sealing.
Machine Description:
1) The machine is applicable for ampoule pre-nitrogen flushing, filling, post-nitrogen flushing and sealing
2) It adopts glass pump; stainless steel pump and ceramic pump which driven by mechanical or servo motor, stable performance, no-dropping, high filling accuracy.
3) Specification: 1—20ml ampoule
4) The machine is linear intermittent filling way, accurate needle alignment, no dropping phenomenon
5) Multi-filling pumps( 8/10/12/16/20-heads), high production capacity?
6) It applicable to natural gas, coal gas, hydrogen generators or other medium, adjustable length of drawing and good-looking
7) Avoid cross-contamination
8) The quality of air inside of the filling area can be printed, indicated, stored, alarmed, and controlled by the isolator
9) Glove system inside of Isolator
10) Peristaltic pump suitable as well.
Technical Data:
Model |
AGF8 |
AGF10 |
AGF12 |
AGF16 |
Container Size (ml) |
1-20 |
|||
Capacity(pcs/min) |
1-2ml>22000
|
1-2ml>28000
|
1-2ml>32000
|
1-2ml>40000
|
|
5ml>12000
|
5ml>18000
|
5ml>22000
|
|
|
|
10-20ml>10000
|
10-20ml> 14000
|
10-20ml>18000
|
||
Power |
380v 50Hz |
|||
Electric Load |
3Kw |
|||
Glass Pump Accuracy |
±2% |
|||
Piston Pump driven by Servo Motor |
±1% |
|||
Oxygen |
0.1-0.2Mpa ,0.7-1.5 m3 /h. |
0.1-0.2Mpa ,0.85-1.8m3 /h. |
0.1-0.2Mpa, 1.2-2.3 m3 /h. |
0.1-0.2Mpa,2.1-4.0 m3 /h. |
Gas |
0.2-0.3Mpa,1.8-3.0m3/h. |
0.2-0.3Mpa,2.1-3.2 m3/h. |
0.2-0.3Mpa,3.2-3.7m3/h. |
0.2-0.3Mpa,3.8-4.0 m3/h. |
Successful Rate of Drawing |
99.95% |
|||
Brack Rate |
≤0.1% |
|||
Noise(dB) |
≤65 |
|||
Weight(kg) |
2450 |
2500 |
2500 |
2550 |
Dimension(L*W*Hmm) |
3500×1800×1900 |
3500×1800×1900 |
3500×1800×1900 |
3500×1800×1900 |
