Specifications
Liquid filling machineAutomatically controlled by PLC
Meet cGMP
Frequency conversion speed

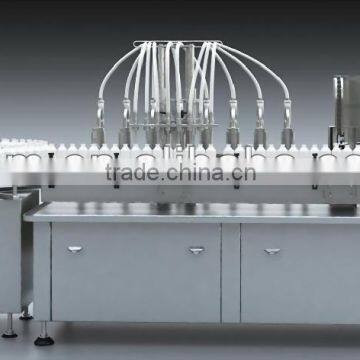

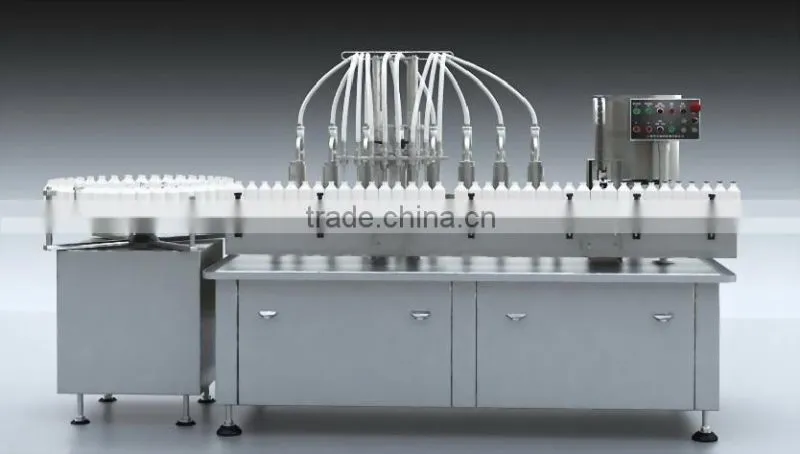

GFX Series Automatic Liquid Filling Machine
We can supply a complete set according to the users' requirments.
Brief introduction:
GFX type filling machine is a big dosage liquid filling machine, our company has developed for
customers whose requirement is large dosage liquid filling.It adopts 8 head ceramic pump filling,
suitable for pharmaceutical and veterinary industry.
Production capacity:
GFX-10 100ml bottle dosage 100ml 100bts/min
GFX-8 100ml bottle dosage 100ml 80bts/min
GFX-6 100ml bottle dosage 100ml 60bts/min
GFX-4 100ml bottle dosage 100ml 40bts/min
Working principle:
This machine consists of turntable,plastic chain plate conveyor, cylinder positioning device,
peristaltic pump or ceramic pump filling device,stoppering device,capping system, bottle outlet
track and electric control system.It depends cylinder to position the bottles and cylinder to push the
filling needle up and down to finish the filling process.
Characteristic:
1. Ceramic pump, peristaltic pump or high precision peristaltic pump, with high rotary precision is
high running speed and filling precision.
2. Filling, stoppering and capping monoblock machine. Space saving and simple structure. Godd appearance and easy to clean.
3. Cylinder positioning with high precision, running is stable can fill different size of bottles.
4. Easy operation, speed controlled by inverter, high automation degree.
5. No bottle, no filling; no stopper, machine auto stops; alarm when insufficient stoppers.
6. Auto counting function
7. CE certified, standard electric installation, safety guarantee on operation.
8. Optional acrylic glass protection hood and 100-class laminar flow
9. Optional pre-filling and after-filling nitrogen filling.
10. The whole machine is designed according to GMP requirements.
Customer Service
Our excellent customer service also includes the installation of our machines. To ensure smooth
performance, we also provide a one year warranty, and a spare set of wearing parts to our customer. If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.
Please contact us to help you with your particular pharmacy equipment needs.
