Home > Products > Temperature Instruments > DM6804A+,Support R/S/B/E/K/J/T/N types of thermometers with large LCD display

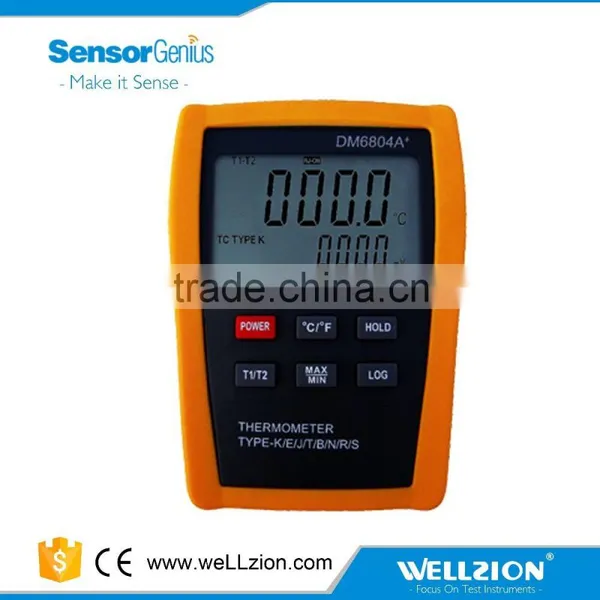

DM6804A+,Support R/S/B/E/K/J/T/N types of thermometers with large LCD display
Negotiable
/ Piece
60 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- shenzhen xiamen
- Credit Card
You May Like
Product Details
Place of Origin: | Fujian, China | Model Number: | DM6804A+ | Usage: | Outdoor |
Theory: | Thermocouple Thermometer | Accuracy: | ±(0.3%+2°C) | Temperature Range: | -200~1300°C |
Product Description
Function & Benefits
- Dual channel temperature measuring(accuracy±0.3%),display T1,T2,T1-T2 ;
- Support K, E, J, T, N, B, R, S thermocouples
- It can set cold temperature automatic saving
- Digital thermocouple with°C and °F display
- Dual display: display max .min and relative mv value of input temperature
- Record function: can manually record 2500pcs temperature, and automatically record 6000pcs temperature. Automatic record interval is adjustable, and the longest record time is 99 hours
Specifications
Thermocouple type | Input range | Resolution | Accuracy | Remark |
R | -40~1760°C | 1°C | -40~500°C: ±(0.5%+2°C) 500°C~1760°C: ±(0.4%+2°C) | T1-T2 accurate: ±[0.3%(T1-T2reading)+2] Input resistance 1GΩ adopts; ITS-90 thermometric scale |
S | -20~1760°C | 1°C | ||
B | 400~1800°C | 1°C | 400°C~800°C: ±(0.5%+2°C) | |
1°C | 800°C~1000°C: ±(0.4%+2°C) | |||
1°C | 1000°C~1800°C:±(0.3%+2°C) | |||
E | -200~1000°C | 0.1°C | -200°C~0°C: ±(0.3%+1°C) | |
0.1°C | 0°C~500°C: ±(0.3%+2°C) | |||
K | -200~1370°C | 0.1°C | -200~0°C: ±(0.3%+2°C) | |
0.1°C | 0°C~800°C: ±(0.3%+1°C) | |||
0.1°C | 800°C~1370°C: ±(0.5%+2°C) | |||
J | -200~1200°C | 0.1°C | -200~0°C: ±(0.3%+1°C) | |
0.1°C | 0°C~1200°C: ±(0.3%+2°C) | |||
T | -200~400°C | 0.1°C | -200~0°C: ±(0.3%+1°C) | |
0.1°C | 0°C~400°C: ±(0.3%+2°C) | |||
N | -200~1300°C | 0.1°C | -200~0°C: ±(0.5%+2°C) | |
0.1°C | 0°C~1300°C: ±(0.3%+2°C) | |||
Special function | ||||
Low battery indication | Approx. less than 7.5V | |||
Data hold | √ | |||
Unit symbol display | √ | |||
Function protection | √ | |||
Anti-shock protection | √ | |||
Sampling rate | 3 times/s | |||
Operation method | Manual range | |||
Max. display | 19999 | |||
LCD size | 67x40mm | |||
Battery | 9V (6F22) | |||
Power dissipation | Quiescent current approx. 3.5mA | |||
General Characteristic | ||||
Color | body-dark grey , jaws-orange (Pantone No.:1495U) | |||
Weight | 240g(including battery) | |||
Meter size | 130×95×28mm | |||
Standard accessory | Battery, manual, TP01 K type temperature probe, and output plug | |||
Packing | Gift box | |||
Standard packing per carton | 60pcs | |||
Carton size | 455mm×315mm×430mm | |||
Standard G.W per carton | 20 kg |
