Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Drying Equipment > YZG, FZG Series Vacuum Dryer

YZG, FZG Series Vacuum Dryer

YZG, FZG Series Vacuum Dryer thumbnail-3

YZG, FZG Series Vacuum Dryer thumbnail-4

YZG, FZG Series Vacuum Dryer thumbnail-5

US$ 1 - 8,888 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vacuum Drying Equipment

Place of Origin:

Shanghai, China

Contact Supplier Request Quote Chat Now

Shanghai Pharmaceutical Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vacuum Drying Equipment

Place of Origin Shanghai, China

Brand Name SPM

Model Number FZG, YZG

Voltage 380V/220V

Power(W) 2-5.5KW

Weight 250-3200KG

Certification ISO

Warranty One year

After-sales Service Provided Engineers available to service machinery overseas

We can supply a complete set according to the users' requirments.

Product Description

Main Application:

Vacuum dry is to let the raw material to be dried at vacuum condition heating and drying. It used vacuum pump to pump damp and make the working chamber form vacuum status. Therefore the dry speed pf raw material is quickened and the energy is saved greatly.

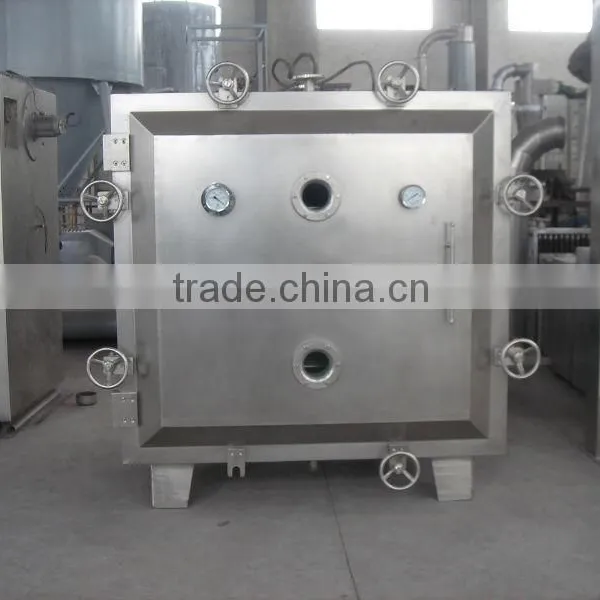

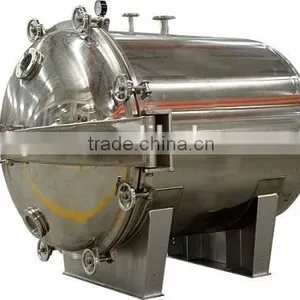

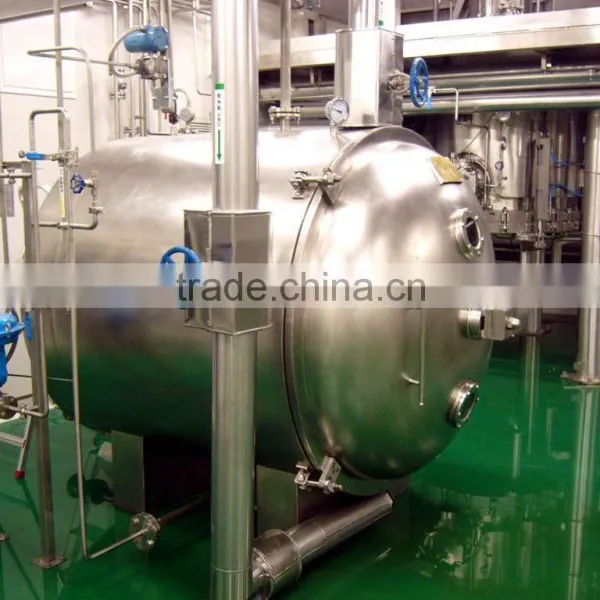

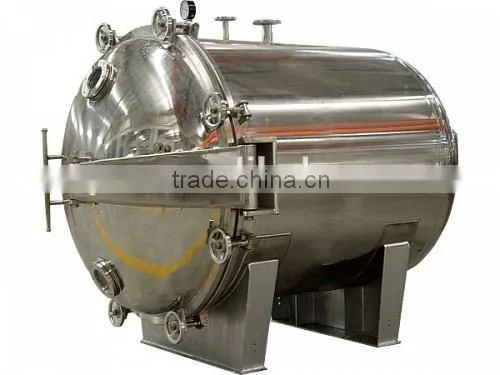

Vacuum dry is divided into static and dynamic drier. Model FZG round vacuum drier or Model FZG square vacuum drier belongs to static drier. Model SZG double cone rotating vacuum drier belongs to dynamic drier. When raw material is dried in static drier, raw material is in static state and its shape can not destroy.

Before drying, it can carry out the treatment of disinfection. When raw material is dried in dynamic drier, raw material is turned over ceaselessly. So it can be dried better and more uniformly.

In the state of vacuum, the boiling point of raw material will be dropped. Therefore it is suitable for drying raw materials that are unstable or thermal sensitive. The vacuum drier also has good air-tightness. So it is also suitable for drying raw materials that contain strong irritative and toxic gases and the solvent needs to recover.

The vacuum drier has been wide used for pharmaceutical industry, chemical industry, foodstuff industry, dyestuff industry and so on. Air is in conformity with the requirements of GMP.

Technical Parameters:

Model	YZG-600	YZG-800	YZG-1000	YZG-1400A
inner size of drying chamber	φ600*976mm	φ800*1247mm	φ1000*1527mm	φ1400*2054mm
outer size of drying chamber	11358101020mm	170010451335mm	169311901500mm	238016751920mm
layers of baking support	4	4	6	8
interval	81mm	82mm	102mm	102mm
size of baking tray	31060045mm	52041045mm	52041045mm	46064045mm
quantity of baking	4	8	12	32
working pressure inside the pipe of bakingsupport	≤0.784Mpa	≤0.784Mpa	≤0.784Mpa	≤0.784Mpa
operation temperature of baking support	35-150℃	35-150℃	35-150℃	35-150℃
degree of vacuum inside the chamber when operation indle	—0.1Pa	—0.1Pa	—0.1Pa	—0.1Pa
under the condition of-0.1Mpa and 110,evaporation rate of wate	7.2kg/m2.hr	7.2kg/m3.hr	7.2kg/m2.hr	7.2kg/m2.hr
when condensor is used,Model	2X-15A	2X-30A	2X-30A	2X-70A
when condensor is used power of vacuumpump	2kw	3kw	3kw	5.5kw
when condensor is notused,Model	SZ-0.5	SZ-1	SZ-1	SZ-2
when condensor is notused power of vacuumpump	1.5kw	2.2kw	2.2kw	4kw
Weight of drying chamber	250kg	600kg	800kg	1400kg

Model	FZG-10	FZG-15	FZG-20
inner size of drying chamber	φ150010601220mm	φ150014001220mm	φ150018001220mm
outer size of drying chamber	192417201513mm	151319242060mm	192425001513mm
layers of baking support	5	8	10
interval	122mm	122mm	122mm
size of baking tray	46064045mm	46064045mm	46064045mm
quantity of baking	20	32	60
working pressure inside the pipe of bakingsupport	≤0.784Mpa	≤0.784Mpa	≤0.784Mpa
operation temperature of baking support	35-150℃	35-150℃	35-150℃
degree of vacuum inside the chamber when operation indle	—0.1Pa	—0.1Pa	—0.1Pa
under the condition of-0.1Mpa and 110,evaporation rate of wate	7.2kg/m2.hr	7.2kg/m2.hr	7.2kg/m2.hr
when condensor is used,Model	2X-70A	2X-70A	2X-90A
when condensor is used power of vacuumpump	5.5kw	5.5kw
when condensor is notused,Model	SZ-2	SZ-2	SZ-2
when condensor is notused power of vacuumpump	4kw	4kw	5.5kw
Weight of drying chamber	1400kg	1400kg	3200kg

Note:SZ water ring vacuum pump can be used together with mechanical pressure increasing pump in order to increase vacuum.

NOTICE:

1. When order, please choose suitable vacuum drier in accordance with the physical property, primary moisture and final moisture of raw material to be dried and factors such as temperature, vacuum, drying amount and time and so on. Vacuum drier with same model has four heating ways, i.e. steam, hot water, heat conduction oil and electric heat. For example, in order to increase the output of product, the drying layer can be increased suitably. Please tell us in time.
2. The auxiliary parts of vacuum drying system indicated in user's Manual can be supplied and installed by our factory. Please indicate them when order.
3. If having special requirements, our factory can also design, manufacture and install as request.
4. For the equipment, our factory will carry out guarantee of repair replacement and refund of substandard products. All subassembly can be supplied in a long time. Please set your mind at rest.
