Soft Capsule Encapsulator

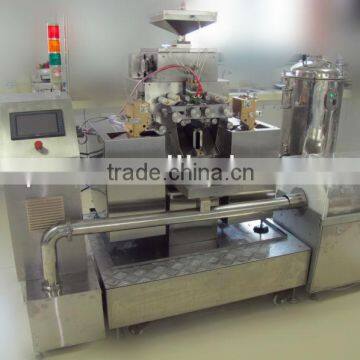

SRJ-5 Small Soft Capsule Making Machine the requirements of GMP standard. It is a simple and efficient laboratory machine mainly for R&D or small batch production of gelatin capsule products in laboratories or pharmaceutical researching institutes.

The whole set of the equipment is simple and efficient with small occupation. It includes a main machine. Control system, water-cooling system lubrication oil saving system, a dryer, a set of mould, as well as an auxiliary HTG-II Gelatin Dissolving Unit. All the materials for the whole set of the equipment are well selected to meet the GMP requirements, making it applicable for medical, food and cosmetic industries.

The main machine

The main machine is the center of the soft gelatin encapsulation machine, whose function is to simultaneously finish the preparation of the gelatin ribbon, quantitative feeding of the content (liquid or sticky materials ). And packing to form the pills.

Technical parameters

Output : 4000granule/hour(500mg)
Charge variance: ±2%
Single plunger charge: 0-1.5ml
Size of the die roller: 64x75mm
Rotational speed of the die roller: 0-4rpm infinitely variable speed
Power of the main motor: 0.75kw
Power of the main machine: 1.8kw
Power supply: 220v, 50hz
Overall dimension: 1240x620x1250mm(Lx Wx H)
Weight: 300kg

The dryer

The dryer consists of a one section tumble and one fans. Through adjusting the direction of the tumble, the gelatin capsules can be maintained in it fo drying or be discharged. The dryer is mainly for the forming and drying in soft gelatin capsule production.

Technical parameters

Tumble size: 330x460mm

Power of the motor: 220v 90w

Power of the motor: 220v 180w

Tumble rotating rate: 12rpm

Overall dimension (LxWxH ): 1120x50x510mm

Weight: 70kg

SRJ-5 Small Soft Capsule Making Machine list:
