TFG3908A,Arbitrary Waveform Generator,80MHz arbitrary generator
Negotiable
/ Piece
1 Piece(Min.Order)
- 3000 Piece / Pieces per Month
- xiamen
- Credit Card
You May Like
- Keysight signal generator N5181B N5183B N5182B
- WHB04B 4 Axis wireless USB pulse generator with electronic hand wheel replace for WHB04-L
- Si5351-2VFO-150 2 Channel Signal Source VFO-5351A V1.03 Square Wave Out 10K-150MHz Signal Generator Module
- SG-4162AD 150MHz RF Signal Source Frequency Meter Frequency Counter Digital RF Signal Generator
- JDS2900 15MHz 30MHz 40MHz 50MHz 60MHz Digital Control Dual Channel DDS Function Signal Generator
- 4-20mA Signal Generator Current Voltage Transmitter Calibrator Signal Source w/ Input Output Conversion
Product Details
Place of Origin: | Fujian, China | Model Number: | TFG3908A |
Product Description
Specifications

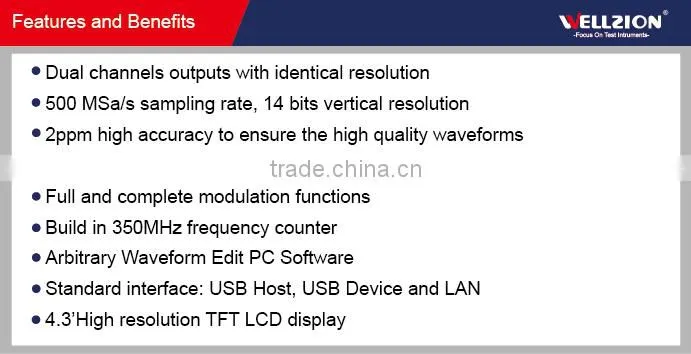

Dual channels outputs with identical resolution500 MSa/s sampling rate, 14 bits vertical resolution
2ppm high accuracy
Model | TFG3908A | TFG3912A | TFG3916A | |
Frequency | ||||
Range | Sine | 1μHz ~ 80MHz | 1μHz ~ 120MHz | 1μHz ~ 160MHz |
Square, Pulse | 1μHz ~ 60MHz | |||
Arbitrary | 1μHz ~ 60MHz | |||
Ramp | 1μHz ~ 5MHz | |||
Resolution | 1μHz, 12 digits | |||
Accuracy | ±2ppm | |||
Waveform | ||||
Standard Waveforms | sine, square, ramp, pulse, noise, DC | |||
Arbitrary Waveforms | 150 kinds of waveforms including PRBS, Exponential Rise, Exponential Fall, Logarithm, Tangent, sinc, Semi-Circle, Gaussian, Cardiac, Quake and so on | |||
Sine Wave Spectrum Purity | ||||
Harmonic Distortion | ≤-60dBc(<1MHz) | |||
≤-55dBc(<10MHz) | ||||
≤-50dBc(<100MHz) | ||||
≤-40dBc(≥100MHz) | ||||
Total Distortion | ≤0.1% | |||
Square, Pulse and Ramp | ||||
Square | Edge Time | ≤8ns | ||
Overshoot | ≤ 5 % | |||
Duty Cycle | 0.1% ~ 99.9%(limited by edge time) | |||
Pulse | Edge Time | ≥8ns | ||
Pulse Width | 10ns ~ 99999s | |||
Ramp | Symmetry | 0.0% ~ 100.0% | ||
Arbitrary Waveforms | ||||
Arbitrary | Length | 2-16k points | ||
Sampling Rate | 500 MSa/s | |||
Vertical Resolution | 14 bits | |||
Amplitude | ||||
Range | Frequency≤100MHz | 1mVpp ~ 10Vpp(50Ω load) | ||
Frequency>120MHz | 1mVpp ~ 5Vpp(50Ω load) | |||
Resolution | 1mVpp or 3 bits | |||
Accuracy | ±(setting value×1%+2mVpp) | |||
Flatness (sine, relative to 100kHz, 1Vpp) | ±0.2dBmfrequency<5MHz | |||
±0.3dBm,frequency<20MHz | ||||
±0.5dBm,frequency<120MHz | ||||
±1dBm, frequency≥120MHz | ||||
Offset | ||||
Range | ±5Vpk ac+dc (50Ω load) | |||
Resolution | 1mV | |||
Accuracy | ±(setting value×1%+2mV+0.5% of amplitude) | |||
Modulation Output(CHA, CHB) | ||||
FM, AM, | Modulation Frequency | 1mHz ~ 100kHz | ||
PM, PWM, | AM Modulating Depth | 0% ~ 120% | ||
SUM Modulation | Phase Deviation | 0° ~ 360° | ||
Pulse Width Deviation | 0% ~ 99% | |||
Sum Amplitude | 0% ~ 100% | |||
Source | internal, external | |||
FSK, 3FSK, 4FSK | Hope Frequency | 1μHz ~ maximum frequency | ||
Hope Rate | 1mHz ~ 1MHz | |||
Trigger Source | internal, external (only FSK, 4FSK) | |||
BPSK, QPSK | Hop Phase | 0° ~ 360° | ||
Hop Rate | 1mHz ~ 1MHz | |||
ASK, OSK | Hop Rate | 1mHz ~ 1MHz | ||
Sweep Output(CHA, CHB) | ||||
Frequency sweep | Sweep Time | 10ms ~ 300s | ||
Reture/Hold Time | 0 ~ 300s | |||
Sweep Type | Linearity, logarithm | |||
List sweep | List Length | 100 | ||
Step Time | 10ms ~ 300s | |||
Burst Output(CHA, CHB) | ||||
Waveform | sine, square, sawtooth and so on | |||
Burst Period | 1μs ~ 500s | |||
Burst Count | 1 ~ 1000000 | |||
Start/End Phase | 0° ~ 360° | |||
Trigger Source | internal, external, manual | |||
Channel Coupling | ||||
Frequency Coupling | Frequency Ratio, Frequency Difference | |||
Ampliitude Offset Coupling | Amplitude Difference, Offset Difference | |||
Waveform Coupling | Comination Amplitude, 0% ~ 100% | |||
SYNC | ||||
Waveform Characteristics | square, edge time≤20nS | |||
Output level | compatible with TTL | |||
Output Impedance | 50Ω nominal | |||
Modulation and Trigger Input | ||||
Modulation Input voltage | ±5Vpp full scale | |||
Trigger Input level | TTL | |||
Input impedance | 10kΩ nominal | |||
Counter | ||||
Frequency Measurement | 0.1Hz ~ 350MHz Resolution: 7 digits/s | |||
Period, Pulse Width Measurement | 100ns ~ 20s | |||
Duty Cycle Measurement | 1% ~ 99% | |||
General Characteristics | ||||
Power | AC 100 ~ 240V, 45 ~ 65Hz, <50VA | |||
Dimension | 256mm*102mm*322 mm | |||
Weight | Approx.3 kg |
