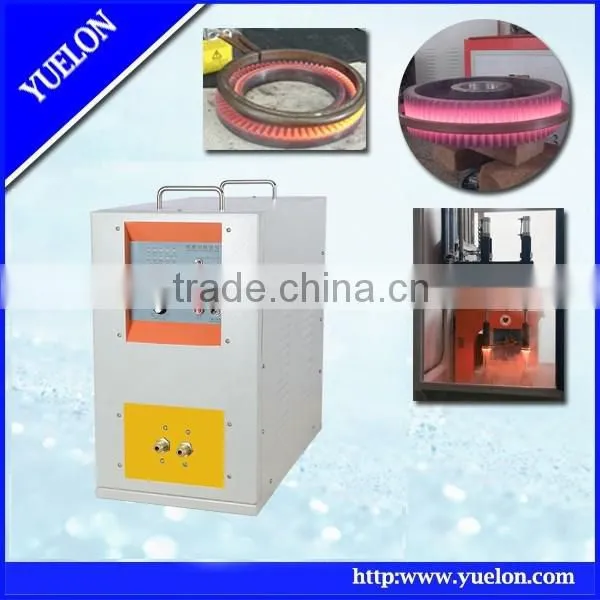

ultrahigh frequency induction heating machine:UF-10-I
Main specifications:
Maximum input power: 10KW
Oscillating frequency: 50-300KHz
Maximum input current: 15A
Heating current: 3-25A
Input voltage: 3phases 380VAC, 50 or 60Hz
Duty cycle: 100%
Cooling water: ≥0.2Mpa 5L/min
Auto heating time: 0.1-99.9seconds
Auto retaining time: 0.1-99.9seconds
Auto cooling time: 0.1-99.9seconds
Weight: 30KG
Dimension:580x260x500mm
Packing weight: 42KG
Packing size: 680x360x600mm
Main characteristics:
1.With high frequency up to 300KHZ the quenching thickness can be controlled lower than 1mm, and very thin and tiny parts can be easily heated.
2.IGBT and current inverting technologies have been used; higher reliability and lower maintenace cost.
3.100% duty cycle, continuous working is allowed at maximum power output.
4.Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
5.Display of heating power and heating current and oscillating frequency.
6.imple to install , installation can be done by unprofessional person very easily;
7.ght weight, small size;
8.fferent shape and size of induction coil can be changed easily to heat different parts.
9.vantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.

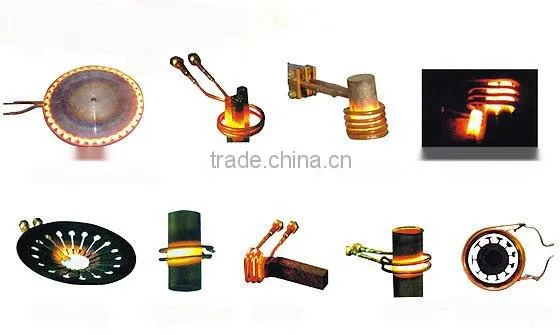

Main applications:
1.heat treatment of gear and shaft
2.steel and stainless steel screw coating
3.floating melt for institute or college research
4.tiny or powder material melting
pper joint brazing
6.etc.
...
