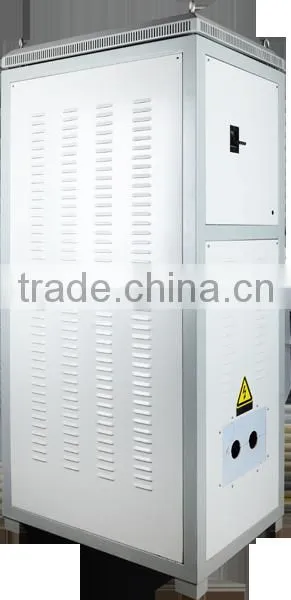

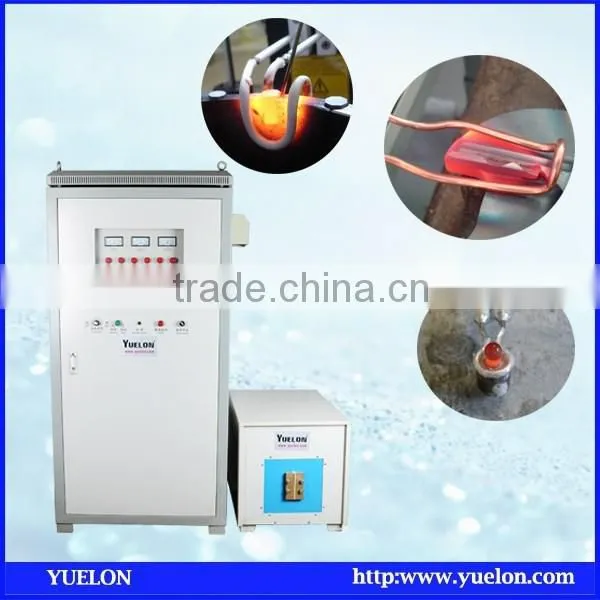

superaudio frequency induction forging machine 250KW
Yuelon is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction
heating equipment and systems. our company was established in 1998 and is privately held. Precision induction
heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial
heating process. That are used for application such as brazing. annealing, hardening, forging, melting, shrink
fitting etc.
Our induction heating machine are Available from 3kw to 1500kw deliverable output power with 0.5KHZ to1.1MHZ
operating frequency range. All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series):0.2-20KHZ
High frequency series (abbr. HF series):30-100KHZ
Superaudio frequency series (abbr. SF series):5-40KHZ
Ultrahigh frequency series (abbr. UF series):100-1100KHZ
Model |
Max output power |
Frequency |
Max input current |
Working voltage |
Generator weight |
Transformer weight |
Generator size |
Transformer size |
SF-30AB |
30KW |
10-40KHZ |
48A |
342-430V |
31KG |
61KG |
320×320×330 |
510×380×810 |
SF-40AB |
40KW |
10-40KHZ |
80A |
342-430V |
37KG |
73KG |
470×415×445 |
810×465×895 |
SF-50AB |
50KW |
10-40KHZ |
90A |
342-430V |
41KG |
75KG |
470×415×445 |
810×465×895 |
SF-60AB |
60KW |
10-40KHZ |
110A |
342-430V |
46KG |
80KG |
470×415×445 |
810×465×895 |
SF-80AB |
80KW |
10-40KHZ |
160A |
342-430V |
68KG |
106KG |
480×410×410 |
770×510×1100 |
SF-100AB |
100KW |
10-40KHZ |
200A |
342-430V |
91KG |
121KG |
560×440×4530 |
770×510×1100 |
SF-120AB |
120KW |
10-40KHZ |
240A |
342-430V |
95KG |
138KG |
560×440×530 |
930×550×1190 |
SF-160AB |
160KW |
8-30KHZ |
280A |
342-430V |
121KG |
151KG |
630×470×550 |
930×550×1190 |
SF-200AB |
200KW |
8-30KHZ |
320A |
342-430V |
125KG |
172KG |
841×546×580 |
930×852×1850 |
SF-250AB |
250KW |
8-30KHZ |
380A |
342-430V |
131KG |
180KG |
841×546×580 |
930×852×1850 |
SF-300AB |
300KW |
8-30KHZ |
460A |
342-430V |
136KG |
185KG |
841×546×580 |
930×852×1850 |
SF-350AB |
350KW |
8-30KHZ |
540A |
342-430V |
141KG |
192KG |
841×546×580 |
930×852×1850 |
Main characteristics:
- IGBT inversion technology based LC series circuit .
- phase locking looping technology and soft switch ensure good reliability, realize power and frequency tracking automatically.
- diode rectifier cause high power factor more than 0.95
- working continuously with 100% duty cycle, power can be instantly turned on or shut off.
- perfect protective circuit and cooling system design, which ensure the good reliability of machine.
- low energy consumption: converts up to 97.5% above of the expended energy into useful heat. energy saving 15%-30% compared with SCR induction heating machine.
- environment friendly, clean, non-polluting process which will help protect the environment, improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise.
- operating and installation easily and safely
- can subsititue traditional heating methods.
Application:

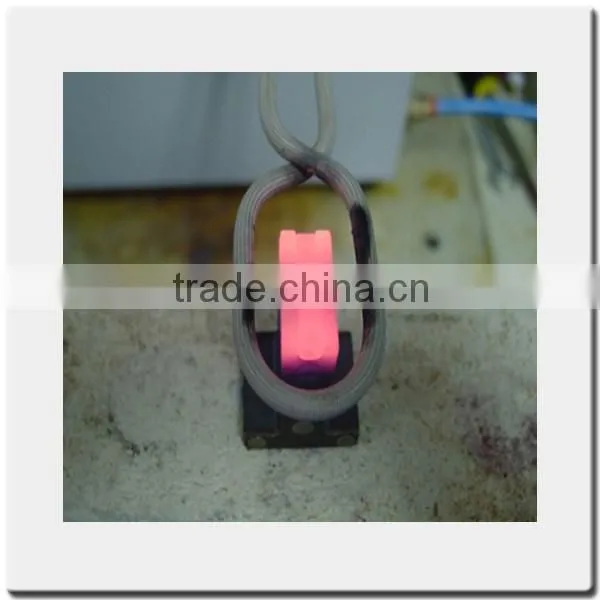

Rod forging
bolt,nut forging
heat treatment of shaft, gear, pin, etc.
shrink-fitting
annealing of pipe welding
etc.
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
Our induction machine are 100% solid state design for unsurpassed reliability, advanced technology.
Induction heating equipment for industrial applications on all types of metal parts, let induction heating to work
for you. Describe your workpiece and requirements, we will provide you with our best advice. Welcome to
enquiry further information and details, any questions or technique support. Please feel free to contact us directly.
