Home > Instruments & Meters > Meter for Electricity > Resistance Meter > VC60B+,Digital Insulation Tester,digital Insulation Resistance Tester, Insulation Meter,3 1/2 Digits

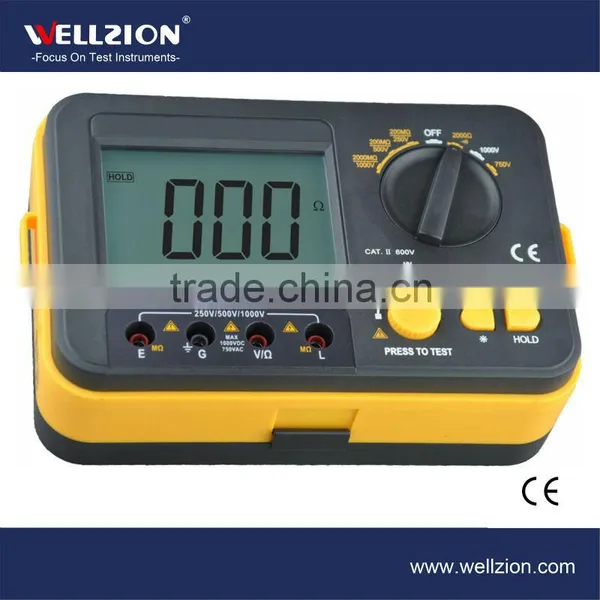

VC60B+,Digital Insulation Tester,digital Insulation Resistance Tester, Insulation Meter,3 1/2 Digits

VC60B+,Digital Insulation Tester,digital Insulation Resistance Tester, Insulation Meter,3 1/2 Digits thumbnail-1
VC60B+,Digital Insulation Tester,digital Insulation Resistance Tester, Insulation Meter,3 1/2 Digits photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Model Number:
VC60B+
Display Type:
Digital Only
Contact Supplier Request Quote Chat Now
Xiamen Wellzion Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Model Number VC60B+
Display Type Digital Only
Measuring Range 0-2GΩ
Testing Voltage 0-1000V
Accuracy Class ±(4.0%+2)
Operating Temperature 23±5°C
Dimensions 176(L)*116(W)*62.5(D)mm

Specifications

Accurate insulation resistance tester
Alarm: high voltage and short circuit.
ACV, diode and continuity test

Features and Benefits:

  • An accurate, reliable and easy-to-use insulation resistance tester
  • Large LCD display, easy to read
  • Strong anti-magnetic and anti-jamming function
  • Full function protection, anti high voltage circuit design
  • Unit symbol display, easy to use
  • High voltage and short circuit input alarm

Specifications:

Basic function

Range

Basic accuracy

Resolution

Insulation resistance

250V±10% test voltage

0~200MΩ

±(4.0%+2)

100kΩ

500V±10% test voltage

0~200MΩ

100kΩ

1000V±10% test voltage

0~2GΩ

1MΩ

Resistance

0~2kΩ

±(1.0%+5)

1Ω

DCV

0~1000V

1V

ACV

0~750V

±(1.5%+5)

1V



Special function

VC60B+

Continuity alarm

Less than 50Ω±10Ω

Low battery indication

Less than approx.7.5V

Data hold

√

LCD backlight

Approx.10Sec.

Function protection

√

Input impedance

10MΩ

Sampling rate

3 times/Sec.

AC frequency response

40-400Hz

Operation mode

Manual range

Max.display

1999

LCD size

75 x 52mm

Power source

1.5V AA battery x6pcs, or external DC 9V power source

Power consumption

Quiescent current approx.3mA

General

Color

Dark gray-yellow

Weight

580g (including battery)

Meter size

176 (L) x116 (W) x62.5 (D) mm

Standard accessory

Test lead, shoulder strap, battery, operation manual

Packing

Gift box

Master carton packing

20pcs

Master carton size

39×35 ×42  cm

Master carton weight

16.6kg
