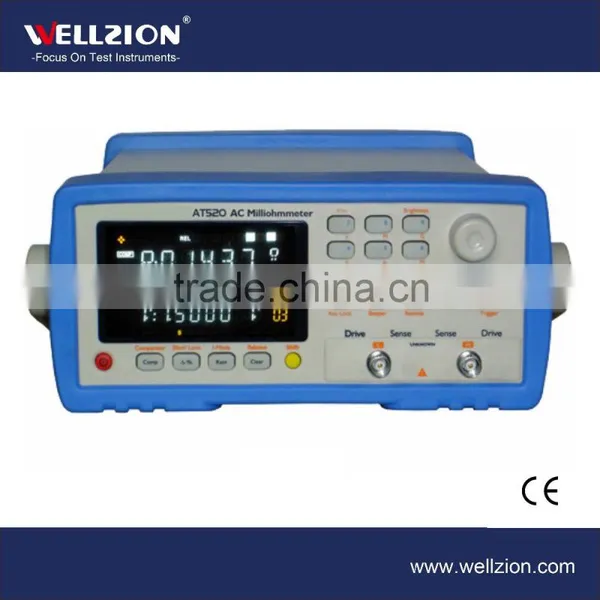

AT520,3.2k Ohm Battery Internal Resistance Tester

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

OEM

Model Number:

AT520

Xiamen Wellzion Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name OEM

Model Number AT520

Display Type Digital Only

Measuring Range 1μΩ~3.2kΩ

Testing Voltage 100μV - 60V

Accuracy Class Resistance: 0.3% Voltage: 0.05% Inductance: 1%

Operating Temperature - -

Dimensions 264mm(W)*107mm(H)*350mm(D)

AT520,3.2k Ohm Battery Internal Resistance Tester

Features and Benefits

Four Colors VFD Display
Vector Measurement, 3 Parameters Dispaly
Calibration: Short circuit zero-setting for all ranges
Comparator (sorting) Function): Build-in 30 sets comparators, HI/IN/LOW/GD/NG Display and Output
Four-terminal resistance measurement
Beeper and brightness can be adjusted
Internal,Manual,External and Remote Trig
Build-in RS232C and Handler
Optional GPIB Interface
Compatible with SCPI command sets
Keypad lock and Data Hold functions

Applications:

Specifications

Parameters	AC resistance, DC voltage, X, Z, θ, L,
Accuracy	Resistance: 0.3% Voltage: 0.05% Inductance: 1%
Measurement Range	Resistance: 1μΩ - 3.2kΩ
Measurement Range	Voltage: 100μV - 60V DC Inductance: 10nH - 1H
Signal Source	AC 1kHz, open-circuit voltage < 20mV,measurement current: < 10mA
Range	Automatic and manual with 6 ranges
Speed	20 times/second, 6 times/second, 1 time/second
Result Display	Show, ΔABS, Δ%, θ, sorting results
Max Reading	Resistance: 32,000, Voltage: 60,000
Adjustment	Short-circuit reset for all range, REL function
Comparator	30 groups record, NG-LO, GD-IN, NG-HI display and output.beep is adjustable
Trigger	Internal, manual, and external
Interface	RS232C,Handler interface (PLC)
Others	Detection of damage test wire,four-color vacuum fluorescent screen VFD display, keypad lock and data hold function
General Features
Power Supply	Voltage: 198V AC - 240V AC Frequency: 50Hz, Power: Max 15VA
Dimension & Weight	264mm (Width)x107mm (Height)x350mm (Depth), 4kg
