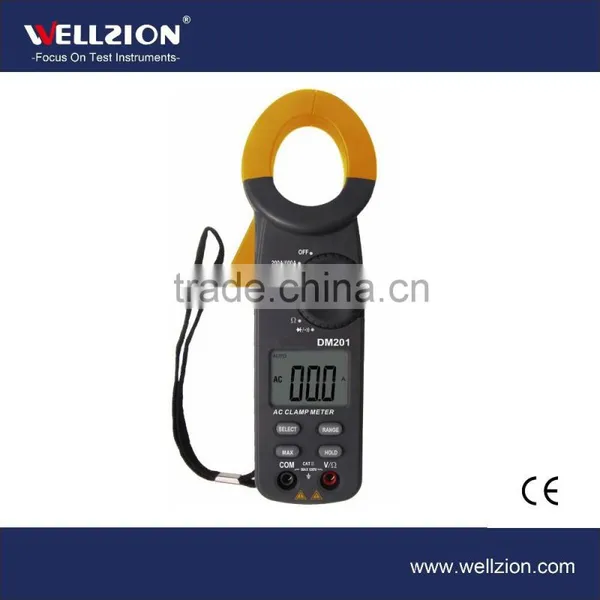

DM201,handheld Clamp Multimeter,Max. Display:1999

Negotiable MOQ: 40 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Model Number:

DM201

Display Type:

Digital Only

Xiamen Wellzion Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Model Number DM201

Display Type Digital Only

Measuring Current Range 2A~600A

Measuring Voltage Range 200mV~600V

Measuring Resistance Range 200Ω~20MΩ

Dimensions 45.3cm*42.5cm*33cm

Specifications

DM201, clamp multimeter
Max. display:1999
unit symbol display,
diode and continuity test function
Low battery indication

Features and Benefits

Specifications

Basic function
Specifications	Range	Basic accuracy
DCV	200mV/2V/20V/200V/600V	±(1.0%+3)
ACV	200mV/2V/20V/200V/600V	±(1.5%+5)
ACA	2A/20A/200A/600A	±(2.0%+5)
Resistance	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	±(1.0%+3)
Special function
Diode test	√
Continuity alarming	Less than30Ω±10Ω
Low battery indication	Approx less than 2.4 V
Data hold	Data hold/Max. hold
Auto power off	About 15minutes
Function protect	Full function protection
Input	10MΩ
Sampling rate	3 times /s
AC frequency response	Amperemter50Hz/Voltage(50-400)Hz
Operation way	Manual or auto range
Max. display	1999
Clamp open	35mm
Battery	3V (2*1.5v)
General characteristic
Color	Body :dark, holster :orange
Weight	About 200g(include 2*1.5v battery.)
Standard accessory	Test leads, battery ,specification, certificate
Packing	Gift box
Carton size	43.5×42.5×33cm
Standard packing per carton	40PCS
Standard G.W. per carton	About18kg
