S7000,Satellite Analyzer,TV Analyzer
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Model Number:
S7000
Type:
Digital
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AE2300L, 160km Distance 30/28 Dynamic Range OTDR MachineNegotiableMOQ: 1 Piece -
AE2300L, 30/28 Dynamic Range Optical Fiber OTDRNegotiableMOQ: 1 Piece
-
AE2300, RJ45 and USB Interface 34/32 Dynamic Range Optical Fiber OTDRNegotiableMOQ: 1 Piece
-
AE2300, 160km Distance 34/32 Dynamic Range OTDR MachineNegotiableMOQ: 1 Piece
-
AE2300, 160km Distance 34/32 Dynamic Range Handheld OTDRNegotiableMOQ: 1 Piece
Place of Origin
Fujian, China
Model Number
S7000
Type
Digital
High Definition
Yes
Specifications
All standards in one: QAM(J.83A/B/C), 8VSB, DVB-T/H/T2,DVB-S/S2
Digital/Analog TV and Satellite TV analysis
Work time > 5 H
Features and Benefits
- All standards in one: QAM(J.83A/B/C), 8VSB, DVB-T/H/T2, DVB-S/S2
- Digital/Analog TV and Satellite TV analysis
- MPEG2 Transport stream analyzer and monitoring via TS-ASI input &RF input
- Fast spectrum analysis with 5 ~ 2150 MHz frequency span DSP Technology to support different Video decoding: MPEG-2,MPEG-4 and H.264 for 1080i, 720p and 576i, support PAL/NTSC/ SECAM color system
- Support SD&HD Video format
- DVB-CI module (Conditional Access) for encrypted channels
- TS-ASI input and output
- TS record and TS replay
- IPTV analysis and GPS option

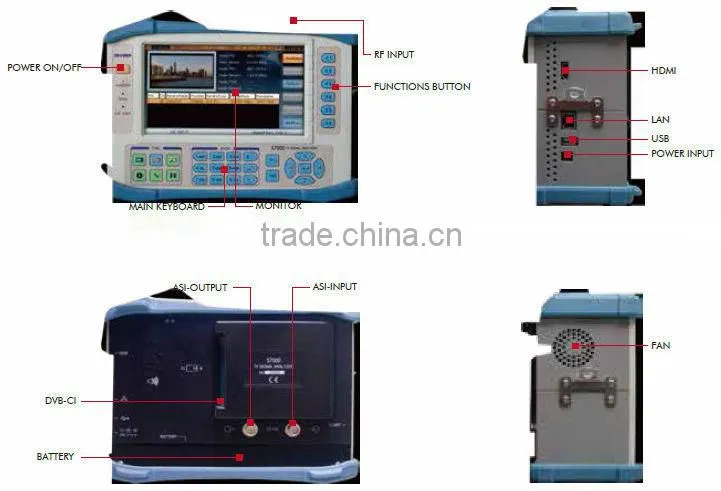

- HDMI, LAN and USB interface
- 7" TFT LCD Display
- Working time > 5 hours (battery)
Specifications
| Spectrum Analyzer | |
| Frequency Range | 5 MHz ~ 1050 MHz (TV), 950 MHz ~ 2150 MHz (Satellite) |
| Frequency Span | 1 MHz ~ 1045 MHz (TV), 10 MHz ~ 1200 MHz(Satellite) |
| Frquency Step | 10 kHz (TV), 1 MHz (Satellite) |
| Resolution Bandwidth (-3dB) | 30kHz, 100kHz, 300kHz, 1MHz,3MHz (TV) 1MHz, 3MHz Auto Select (Satellite) |
| Level Measurement Range | 10 dBμV ~ 120 dBμV (TV) 30 dBμV ~ 120 dBμV (Satellite) |
| Accuracy Of Measurements | <1.5 dB |
| Measurement Detector | Peak, sample, AVG (TV) , No Select for Satellite |
| Reference Level | 30 dBμV ~ 120 dBμV |
| Markers | 2 (TV) 1 (Satellite) |
| Analogue TV Measurement | |
| Standards | B/G, I, D/K, L/L´, M/N |
| Colour Standards | PAL, SECAM, NTSC |
| Frequency Step | 10 kHz |
| Hum Measurement | > 50dB |
| C/N | > 50dB |
| Level Measurement Range | 30 dBμV ~ 120 dBμV |
| Accuracy Of Measurements | < 1.5 dB |
| Level Resolution | 0.1 dB |
| Digital CATV Measurement | |
| Modulation Type | 16/32/64/128/256 QAM ITU-T J.83 ANNEX A/B/C |
| Symbol Rate | 4.0 MS/s ~ 7.0 MS/s |
| Power Level Range | 30 dBμV ~ 110 dBμV |
| Level Resolution | 0.1 dB |
| Power Level Accuarcy | ±1.5 dB(C/N > 20 dB) |
| MER Measurement | ~40 dB |
| MER Accuracy | ±2.0 dB |
| BER | 1E-3 ~ 1E-9 |
| Constellation | √ |
| DVB-T/H Measurement | |
| Modulation Type | QPSK, 16 QAM, 64 QAM |
| Power Level Range | 25 dBμV ~ 110 dBμV |
| Level Resolution | 0.1 dB |
| Power Level Accuarcy | ±1.5 dB (C/N >20 dB) |
| MER Measurement | > 30 dB |
| MER Accuracy | ±2.0 dB |
| CBER/VBER | √ |
| Constellation | √ |
| MER Versus Carriers | √ |
| Echo Pattern | √ |
| DVB-T2 Measurement | |
| Modulation Type | QPSK, 16 QAM, 64 QAM, 256QAM |
| Power Level Range | 25 dBμV ~ 110dBμV |
| Level Resolution | 0.1dB |
| Power Level Accuarcy | ±1.5 dB(C/N >20 dB) |
| MER Measurement | >30 dB |
| MER Accuracy | ±2.0 dB |
| CBER/LBER | √ |
| Constellation | √ |
| Echo Pattern | √ |
| ATSC Measurement | |
| Modulation Type | 8 VSB |
| Power Level Range | 25 dBμV ~ 110 dBμV |
| Level Resolution | 0.1 dB |
| Power Level Accuarcy | ±1.5 dB(C/N >20 dB) |
| MER Measurement | >35 dB |
| MER Accuracy | ±2.0 dB |
| BER | √ |
| Constellation | √ |
| DTMB Measurement | |
| Carriers | C=1, 3780 |
| Power Level Range | 25 dBμV ~ 110 dBμV |
| Level Resolution | 0.1 dB |
| Power Level Accuarcy | ±1.5 dB (C/N >20dB) |
| MER Measurement | >28 dB |
| MER Accuracy | ±2.0 dB |
| BER | √ |
| Constellation | √ |
| Echo Pattern | √ |
| DVB-S/S2 Measurement | |
| Modulation Type | QPSK, 8PSK |
| Symbol Rate | 2 - 45 MS/s (DVB-S) 1 - 45 MS/s (QPSK DVB-S2) 1 - 45 MS/s (8PSK DVB-S2) |
| Power Level Range | 40 - 110 dBμV |
| Level Resolution | 0.1 dB |
| Power Level Accuarcy | ±1.5 dB (C/N>20dB) |
| MER Measurement | > 25 dB |
| MER Accuracy | ±2.0 dB |
| BER | DVB-S (CBER/VBER) DVB-S2 (CBER/LBER) |
| Constellation | √ |
| Video/Audio Decoder | |
| Video | MPEG1/2/4, H.264 |
| Video Resolution | 1080i, 720p and 576i |
| Audio | MPEG1/2/4, AAC |
| CAM Module | EN50221 (DVB-CI) PCMCIA interface |
| TS-ASI Input And Output | √ |
| TS Record | √ |
| TS Analyzer En 50083-9(DVB SPI, ASI) | |
| DVB-ASI Interface | 75 Ω BNC |
| DVB-ASI Clock | 270 MHz |
| DVB-ASI Output Signal Level | 1.0 Vp-p nominal |
| DVB-ASI Return Response | > 15dB |
| DVB-ASI Input Level | 800 mV +/- 10% |
| TR101290 Monitor | TR101 290 three levels real time monitor |
| Base Information | Count the PIDs percent according to the type of the streams. Videos, Audios, PSI/SI, Null Packages |
| PID List | Display all the PIDs in current stream |
| PCR Monitor | Calculate PCR interval and PCR accuracy |
| General | |
| Display | 7 inches TFT LCD 800 × 480 pixels |
| Time | Around 5 Hours Charge Time ; >5 Hours Working Time |
| Dimension (W×H×L) | 245 mm × 194 mm × 105mm |
| Weight Around | 2.8 kg |

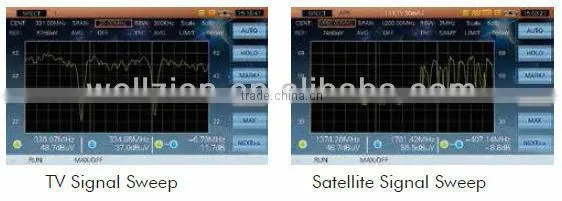

Spectrum Measurement
The sweep span covers TV& Broadcasting signal(5-1050 MHz) and Satellite IF signal (950-2150MHz )

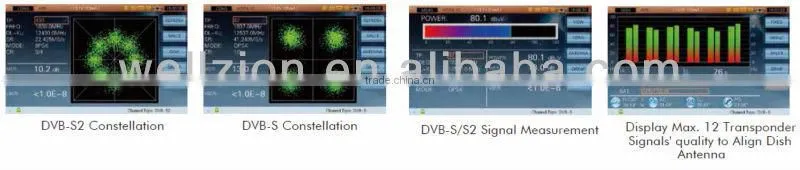

DVB-S/S2 Signal Analysis
Supports DVB-S/S2 standard and provides Power level, MER, BER, constellation measurement

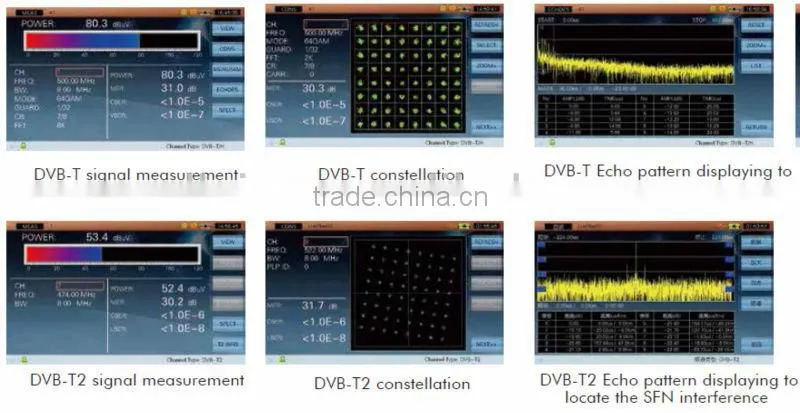

DVB-T/T2 Signal Analysis
TS Analysis and Monitor
S7000 has 8GB hard disk to save TS file and can replay and analysis.
