Product Details
Brand Name: | OEM | Model Number: | TC602RE |
Product Description

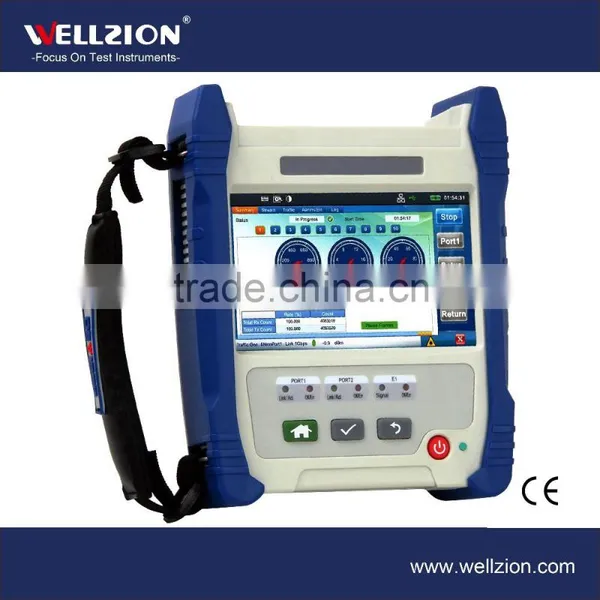

TC602RE,1Gbit/s Ethernet Backhaul Service Tester with E1 Tester
New from Deviser Instruments, the TC602RE is a handheld Ethernet backhaul service tester that supports testing for speeds up to 1Gbps. The TC602RE adds a suite of E1,SyncE, and IEEE 1588v2 testing functions for even wider utility. It's the next generation of telecommunication systems analysis, serving the growing need for high-speed metropolitan access at unmatched cost performance.
The TC602RE Ethernet Backhaul and E1 Tester excels at all Ethernet measurement applications, including performance evaluation; metro Ethernet installation, activation, & maintenance; point-to- point Ethernet joining-up service planning; real-time online fault diagnosis;wireless backhaul service verification and more.
- 5 inch TFT LCD touch screen(800x480)
- Complete solution for activating, verifying & fault-diagnosing Ethernet service from 10Mbit/s to 1Gbit/s quickly and easily
- Supports two 10/100/1000Base-T electrical interface and two 1000Base-X optical interface
- Integrates multiple software tools for field measurement,ensuring high cost-performance
- 75Ω unbalanced BNC×2, 120Ω balanced RJ48×1
- LOS, LOF, and AIS warring measurement
- 2.048 Mbit/s transmit and receive
- Professional PDF and CSV data report generation
Optical Port | |||
SFP port x2 | |||
Available Wavelength | 850nm, 1310nm & 1550nm (see below) | ||
1000Base-SX | 100Base-LX | 1000Base-ZX | |
Wavelength (nm) | 850 | 1310 | 1550 |
Tx Level (dBm) | -9~-3 | -9~-3 | 0~+5 |
Rx Level Sensitivity (dBm) | -20 | -22 | -22 |
Transmission Distance | 550m | 10km | 80km |
Transmission Bit Rate (Gbit/s) | 1.25 | ||
Receiving Bit Rate (Gbit/s) | 1.25 | ||
Tx Working Wavelength Range (nm) | 830~860 | 1270~1360 | 1540~1570 |
Test Accuracy | |||
Frequency (ppm) | ±4.6 | ||
Optical Power (dB) | ±2 | ||
Jitter Compliance | IEEE802.3 | ||
Ethernet Type | IEEE802.3 | ||
Connector | LC | ||
Transceiver Type | SFP | ||
Electrical Port | |||
Single port: 10/100/1000 Base-T Full duplex | |||
Auto/manually detecting straight-through/cross cable | |||
10Base-T | 10Base-TX | 100Base-T | |
Tx Bit Rate | 10Mbit/s | 100Mbit/s | 1Gbit/s |
Tx Accuracy (ppm) | ±4.6 | ±4.6 | ±4.6 |
Rx Bit Rate | 10Mbit/s | 100Mbit/s | 1Gbit/s |
Rx Test Accuracy (ppm) | ±4.6 | ±4.6 | ±4.6 |
Duplex Mode | Full duplex | Full duplex | Full duplex |
Jitter Compliance | IEEE802.3 | IEEE802.3 | IEEE802.3 |
Connector | RJ-45 | RJ-45 | RJ-45 |
Max. Distance (m) | 100 | 100 | 100 |
E1 Port | |||
75 Ω unbalanced BNC × 2; 120 Ω balanced RJ48 × 1 | |||
Line Rate and Code | 2.048 Mbps, HDB3 and AMI | ||
Compliance | ITU-T G.703 | ||
General | |||
Display | 5 inch 800x480 color LCD Touch Screen | ||
Demensions (HxWxD) | 179mm x 145mm x 56mm (7.0" x 5.7" x 2.2") | ||
Weight (with battery) | 0.8kg (1.8lbs) | ||
Working Temperature | -10ºC ~ 50ºC | ||
Storage Temperature | -20ºC ~70ºC | ||
Relative Humidity | 0% to 95% (non-condensation) | ||
External Port | USB, Ethernet port | ||
Working Time | 3.5 hours | ||
Charging Time | 5 hours from fully discharged to fully charged | ||
Language | English, Chinese |
