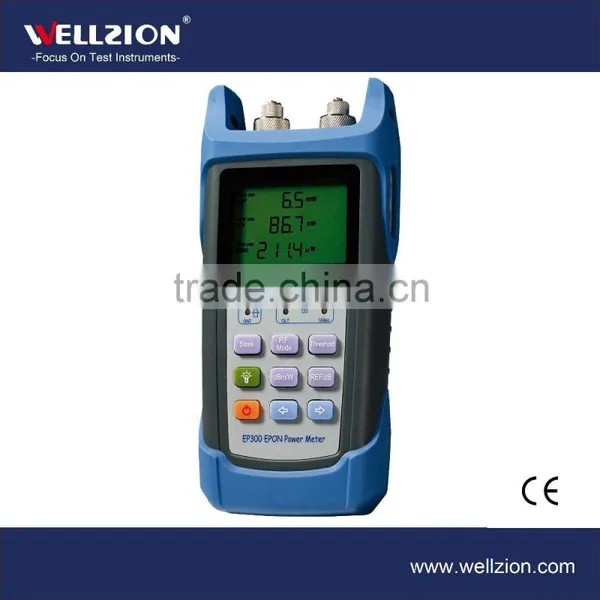

EP300,1310~1550nm PON Optical Power Meter
Product Overview
The EP300 is a passive optical network (PON) power meter, which enables the user to quickly validate PON network installations.This compact test equipment is able to measure all three EPON wavelengths (1310 nm, 1490 nm, 1550 nm) simultaneously, with user-defined pass/fail thresholds to simplify interpretation.Results can be downloaded to a PC for further analysis.
Function & Benefits
- Simultaneously verifles the power levels of all PON wavelengths (1310 nm, 1490 nm and 1550 nm)
- Pass/fail analysis helps user quickly interpret results and ensures consistent PON network turn-up
- Green light/red light LED helps user easily identify pass/fail results
- Rugged unit is water- and shock-resistant
Specifications
| Optical Specifications | ||||||
| PON wavelengths(nm) | 1310 | 1490 | 1550 | |||
| Measurement Range(DBm) | CW | -40~10 | -40~10 | -40~25 | ||
| BW | -30~8 | |||||
| Spectral Passband(nm) | 1260~1360 | 1480~1500 | 1540~1560 | |||
| Wave Isolation(dB) | 1490 | >50 | 1310 | >40 | 1310 | >40 |
| 1550 | >50 | 1550 | >40 | 1490 | >40 | |
| Loss | <1.5 | |||||
| ORL(dB) | -55 (APC connector) | |||||
| Fiber Type | Single-mode fiber,9/125μm | |||||
| Connector Type | Default: FC/SC/ST-UPC, Options: APC | |||||
| General Specifications | ||||||
| Power Uncertainty | 0.5 dB | |||||
| Unit | dBm; dB; mW; μW; nW | |||||
| Resolution | 0.1 dB | |||||
| Power | 3x AA batteries / 5V Adapter | |||||
| Threshold Sets | 12 configurable threshold sets with toolbox software | |||||
| Data Storage | Store up to 1800 test results and built-in USB interface for file transfer and download | |||||
