Induction Heat Treatment Furnace For Billet Forging
- 100 Set / Sets per Month
- ningbo/shanghai
Product Details
Place of Origin: | Zhejiang, China | Model Number: | MF-35KW | Brand Name: | YUELON, YUELON |
Product Description

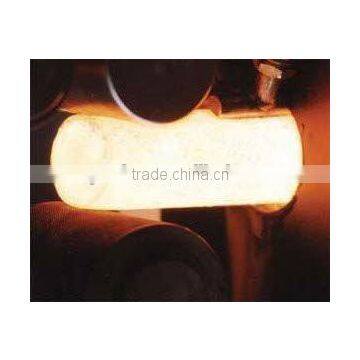

Induction Heat Treatment Furnace For Billet Forging
Induction heating is often used in the heat treatment of metal items. The most common applications are induction hardening of steel parts,
induction soldering/brazing as a means of joining metal components and induction annealing to selectively soften a selected area of a steel part.
YONGKANG YUELON ELECTRONIC EQUIPMENT CO.,LTD
YUELON is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction heating equipment and systems. Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial heating process. that are used for application such as brazing, annealing, quenching, forging, melting, shrink fitting etc.
our induction heating machine are Available from 2KW to 1500KW deliverable output power with 0.5KHZ to 1.1MHZ operating frequency range. All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series): 0.2-20KHZ
High frequency series (abbr. HF series): 30-100KHZ
Superaudio frequency series (abbr. SF series): 8-40KHZ
Ultrahigh frequency series (abbr. UF series) : 100-1000KHZ
Category | Model | Maximum Input power | Oscilating frequency | Maximum Input current | Input voltage | The range of operating voltage | Duty cycle |
Medium frequeny series | MF-15 | 15KW | 1-20KHZ | 23A | 3phase 380V50Hz | 70-550V | 100% |
MF-25 | 25KW | 36A | |||||
MF-35 | 35KW | 51A | |||||
MF-45 | 45KW | 68A | |||||
MF-70 | 70KW | 105A | |||||
MF-90 | 90KW | 135A | |||||
MF-110 | 110KW | 170A | |||||
MF-160 | 160KW | 240A | |||||
MF-240 | 240KW | 360A | |||||
MF-300 | 300KW | 1-20KHZ | 480A |
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
...
