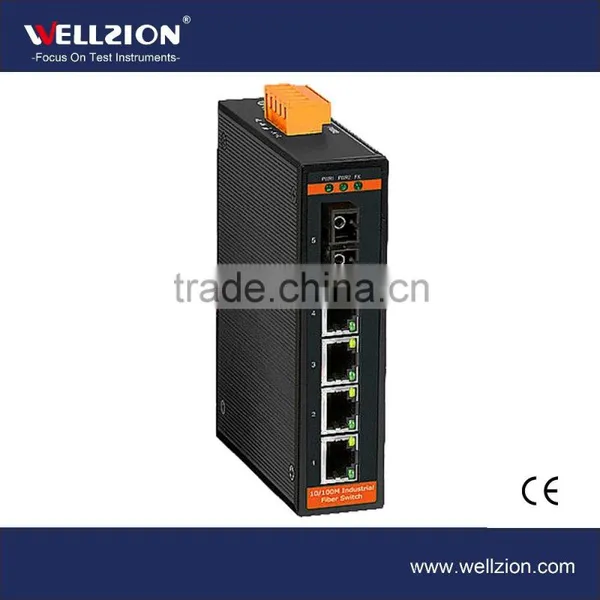

OPT-GY1014S20,Double Fiber Media Converter Industrial Ethernet Switch
Product Overview
TheOPT-GY1014 series are Optone new ultra low power consumption Green Ethernetseries, its full load power consumption is as low as 2.16 watts.The OPT-GY1014 switches supports a wide operating temperaturerange from -40°C to 85°C. All models have IP40 protection class and meet EMCindustrial level 4 requirements.
OPT-GY1014series support IEEE 802.3 and IEEE802.3u with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The OPT-GY1014switches provide 12~48VDC power supply. These switches are specially designedfor harsh industrial environments certified by UL508 and UL Class 1 Div 2certifications.
OPT-GY1014is a "green", embedded industrial Ethernet module with low-powerconsumption. It is applicable to wind power, subway PIS, power SCADA, sewagetreatment, metallurgy, intelligent transportation, rail transit, and many otherindustries.OPT-GY1014 Embedded Ethernet Switching Module can be directlyinstalled in the target device.
Ordering Information
| Model No. | Description |
| Double Fiber Media Converter | |
| OPT-GY1014M02 | 100Base-Fx to 4*10/100Base-Tx, Multi mode, 2Km, SC/ST |
| OPT-GY1014S20 | 100Base-Fx to 4*10/100Base-Tx, Single mode, 20Km, SC/ST |
| WDM Fiber Media Converter | |
| OPT-GY1014W20 | 100Base-Fx to 4*10/100Base-Tx, Bi-Directional, 20Km, SC/ST |
Function & Benefits
- Green Ethernet solution with ultra low power consumptiondesign
- Both standard and wide operating temperature
- Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x auto-negotiation
- 20km multi-mode fiber extends distance
- Supports auto MDI/MDIX function
- Status LED for easy monitoring of device status
- Support max forwarding packet length 1552/1536 bytes option
- IP40 protection class
- FCC Class A & CE approved
Specifications
| Interface | Ÿ4 x Ethernet port (RJ45) 10/100Base-Tx |
| Ÿ1 x Optical port (1x9) 100Base-Fx | |
| Optical Port | |
| (Available for 1310nm and 1550nm Single mode, and 1310nm Multi mode) | |
| Transfer Distance | up to 120km |
| Connectors | SC/PC, ST/PC, optional |
| Fiber core | 8.3μm, 8.7μm, 9μm and 10μm onsingle-mode fiber; 50, 62.5 and 100μm on multi-mode fiber |
| Ethernet Port | |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Available Speed | force 10Mbps,force 100Mbps andauto-detective 10/100Mbps Full-Duplex and Half-Duplex auto-negotiation |
| Connectors | RJ-45 Connector; MDI/MDI-X connectionauto-sensing |
| Switch Properties | |
| MAC Table | 2K |
| Packet Buffer | 1Mbit |
| Switching Delay | <5μs |
| LED Indicators | ŸPower, Status, Speed, FX Link/Act, TX Link/Act |
| Power Requirement | |
| Input | 12VDC~48VDC |
| Consumption | 3.5W |
| Overload Protection | Support |
| Reverse Connection Protection | Support |
| Redundancy Protection | Support |
| Physical Characteristics | |
| Housing | Metal enclosure |
| Protection Class | IP40 |

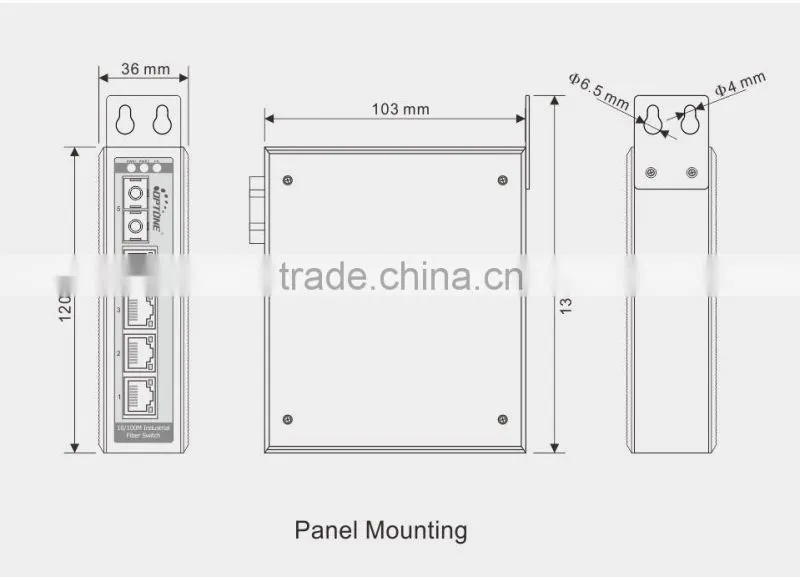

| Dimensions | 36mm*120mm*103mm |
| Weight | 0.4kg |

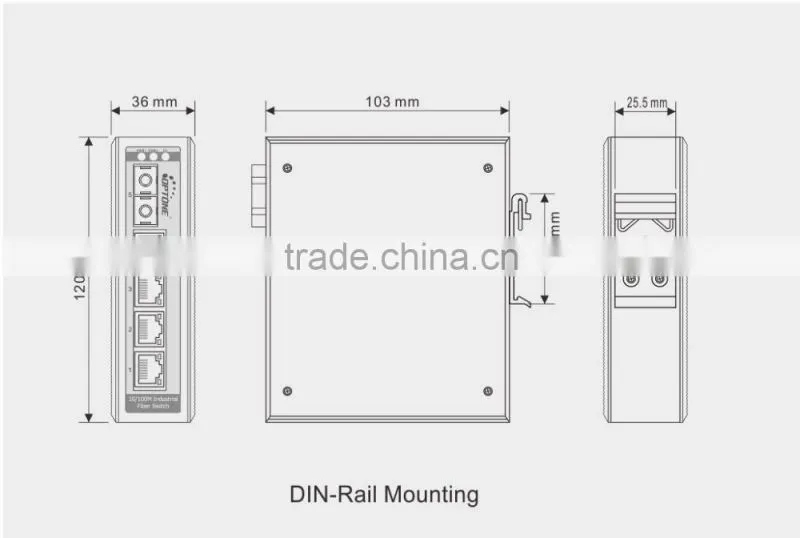

| Installation | DIN-Rail or Panel mounting |
| Environmental Limits | |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 10% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Agency Approvals | ŸFCC Part 15 of Class A & CE approved |
| Industrial Standard | |
| EMI | FCC/CE/LVD/EMC |
| EMS | |
| IEC61000-4-2 (ESD) | ±8kV (contact), ±15kV (air) |
| IEC61000-4-3 (RS) | 10V/m (80MHz-2GHz) |
| IEC61000-4-4 (EFT) | Power Port: ±4kV;Data Port: ±2kV |
| IEC61000-4-5 (Surge) | Power Port:±2kV/DM, ±4kV/CM; Data Port: ±2kV |
| IEC61000-4-6 (CS) | 3V (10kHz-150kHz); 10V(150kHz-80MHz) |
| IEC61000-4-16 (Common mode conduction) |
30V (cont.), 300V (1s) |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Warranty | Ÿ5 years |
