Product Details
Brand Name: | OEM | Model Number: | OPT-GY1005 |
Product Description

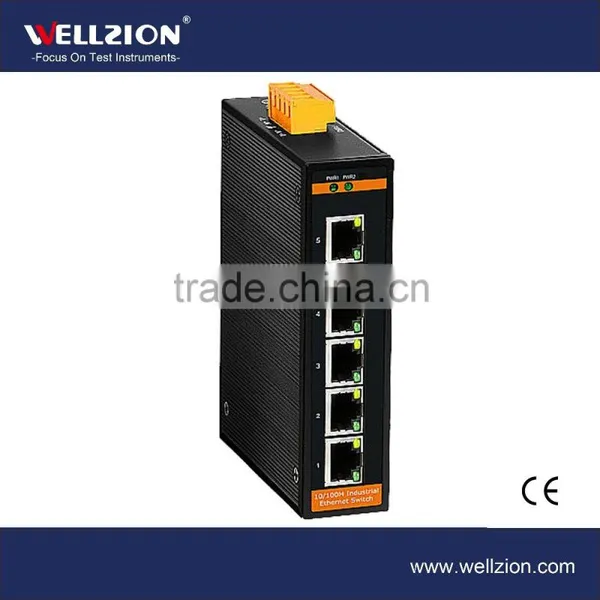

OPT-GY1005,5 RJ45 Port Industrial Ethernet Switch
The OPT-GY1005 series are Optone new ultra low power consumption Green Ethernetseries, its full load power consumption is as low as 2.16 watts. The OPT-GY1005switches supports a wide operating temperature range from -40°C to 85°C. Allmodels have IP40 protection class and meet EMC industrial level 4 requirements.
OPT-GY1005series support IEEE 802.3 and IEEE802.3u with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The OPT-GY1005switches provide 12~48VDC power supply. These switches are specially designedfor harsh industrial environments certified by UL508 and UL Class 1 Div 2certifications.
OPT-GY1005is a "green", embedded industrial Ethernet module with low-powerconsumption. It is applicable to wind power, subway PIS, power SCADA, sewagetreatment, metallurgy, intelligent transportation, rail transit, and many otherindustries.OPT-GY1005 Embedded Ethernet Switching Module can be directlyinstalled in the target device.
- Green Ethernet solution with ultra low power consumptiondesign
- Both standard and wide operating temperature
- Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x auto-negotiation
- Supports auto MDI/MDIX function
- Status LED for easy monitoring of device status
- Support max forwarding packet length 1552/1536 bytes option
- IP40 protection class
- FCC Class A & CE approved
Interface | Ÿ5 x Ethernet port (RJ45) 10/100Base-Tx |
Ethernet Port | |
ŸStandard | IEEE802.3, IEEE802.3u, IEEE802.3x |
ŸAvailable Speed | force 10Mbps,
force 100Mbps andauto-detective 10/100Mbps Full-Duplex and Half-Duplex auto-negotiation |
ŸConnectors | RJ-45 Connector; MDI/MDI-X connectionauto-sensing |
Switch Properties | |
ŸMAC Table | 2K |
ŸPacket Buffer | 1Mbit |
ŸSwitching Delay | <5μs |
LED Indicators | ŸPower, Status, Speed, FX Link/Act, TX Link/Act |
Power Requirement | |
ŸInput | 12VDC~48VDC |
ŸConsumption | 3.5W |
ŸOverload Protection | Support |
ŸReverse Connection Protection | Support |
ŸRedundancy Protection | Support |
Physical Characteristics | |
ŸHousing | Metal enclosure |
ŸProtection Class | IP40 |

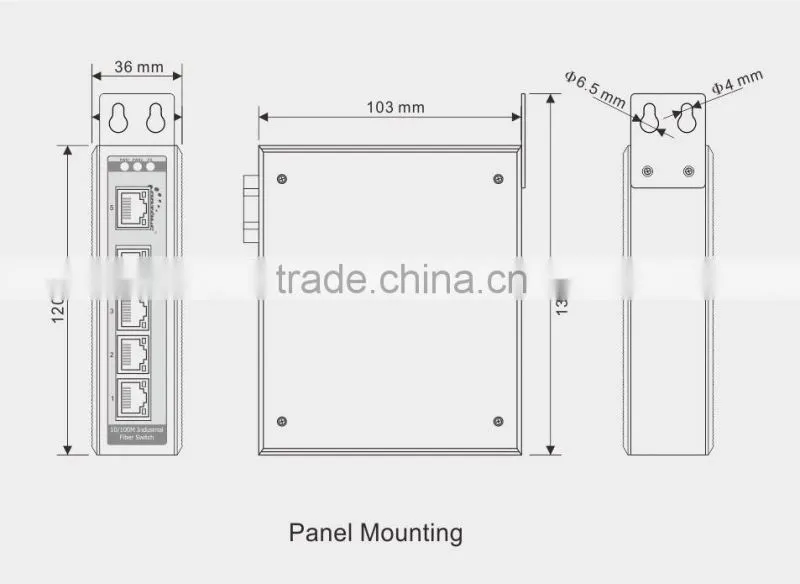

ŸDimensions | 36mm*120mm*103mm |
ŸWeight | 0.4kg |
ŸInstallation | DIN-Rail or Panel mounting |
Environmental Limits | |
ŸOperating Temperature | -40°C to 85°C |
ŸStorage Temperature | -40°C to 85°C |
ŸOperating Humidity | 10% to 95% RH (non-condensing) |
ŸStorage Humidity | 5% to 95% RH (non-condensing) |
Agency Approvals | ŸFCC Part 15 of Class A & CE approved |
Industrial Standard | |
ŸEMI | FCC/CE/LVD/EMC |
ŸEMS | |
IEC61000-4-2 (ESD) | ±8kV (contact), ±15kV (air) |
IEC61000-4-3 (RS) | 10V/m (80MHz-2GHz) |
IEC61000-4-4 (EFT) | Power Port: ±4kV;Data Port: ±2kV |
IEC61000-4-5 (Surge) | Power Port:±2kV/DM, ±4kV/CM; Data Port: ±2kV |
IEC61000-4-6 (CS) | 3V (10kHz-150kHz); 10V(150kHz-80MHz) |
IEC61000-4-16 (Common mode conduction) | 30V (cont.), 300V (1s) |
ŸShock | IEC 60068-2-27 |
ŸFree Fall | IEC 60068-2-32 |
ŸVibration | IEC 60068-2-6 |
Warranty | Ÿ5 years |
