Home > Products > Coating Thickness Gauge > EC-770,coating Thickness Gauge,digital Thickness Tester,0~1300um; 0 to 51.2mils
EC-770,coating Thickness Gauge,digital Thickness Tester,0~1300um; 0 to 51.2mils
Negotiable
/ Piece
20 Pieces(Min. Order)
- xiamen shenzhen
- Credit Card
You May Like
-
EC-770,coating Thickness Tester,thickness Meter,thickness Gauge Meter,0~1300um; 0 to 51.2mils
-
CM8806FN,0~1250um 0~50mil Digital Thickness Gauge
-
CM8806FN,0~1250um 0~50mil Plastic Thickness Gauge
-
EC-770F,car Paint Thickness Gauge,F-Probe
-
EC-770,paint Thickness Gauge,0~1300um; 0 to 51.2mils,F-Probe & N-Probe
-
EC-770,car Paint Thickness Gauge ,0~1300um; 0 to 51.2mils,F-Probe & N-Probe
Product Details
| Place of Origin | Fujian, China | Model Number | EC-770 |
Product Description
| Model | EC-770 | EC-770F | EC-770N |
| Probe | F-Probe & N-Probe | F-Probe | N-Probe |
| Measuring principle | Magnetic induction & Eddy Currents | Magnetic induction | Eddy Currents |
| Measuring range | 0 to 1300um (0 to 51.2mils) | ||
| Accuracy | ± (3%+2um) ± (3%+0.078mils) | ||
| Resolution | 0um~999um(1um) 1000um~1300um(0.01mm) 0mils~39.39mils(0.01mils) 39.4mils~51.2mils(0.1mils) | ||
| Calibration | One point to four point calibration, zero point calibration, Basic | ||
| Data group | One direct group(readings not be stored to memory) Four general group(readings will be stored automatically) NOTE: each group have individual statistics, alarm limit settings and calibration | ||
| Statistics | No. of readings, mean, minimum, maximum and standard deviation | ||
| Units | um , mm, mils | ||
| Alarm | User can set the high/low alarm limit Alarm icon displayed on LCD when over the limit | ||
| Minimum curvature radius convex | 1.5mm | ||
| Minimum curvature radius concave | 25mm | ||
| Minimum measuring area | Diameter 6mm | ||
| Minimum thickness of substrate | F-probe: 0.5mm(0.02"), N-probe: 0.3mm(0.012"); | 0.5mm(0.02") | 0.3mm(0.012") |
| Maximum measuring rate | Two readings per second | ||
| Computer interface | Download data via USB | ||
| Power supply | Two 1.5V AAA battery | ||
| Operation environment | Temperature: 0 to 40°C(32 to 104°F); humidity: 20% to90%rh | ||
| Storage environment | Temperature: -20 to 70°C(-4 to 158°F) | ||
| Standard Compliance | ROHS WEEE | ||
| Dimensions | 110mm*53mm*24mm(4.33"*2.09"*0.94") | ||
| Case Material | ABS; 92g(3.24 oz) | ||

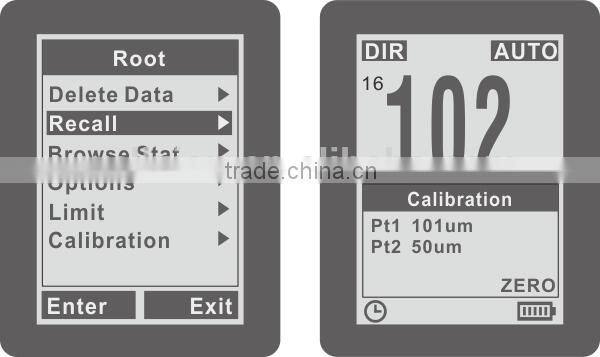

Original menu design
Because of menu design, operation more easy to learn, faster to use

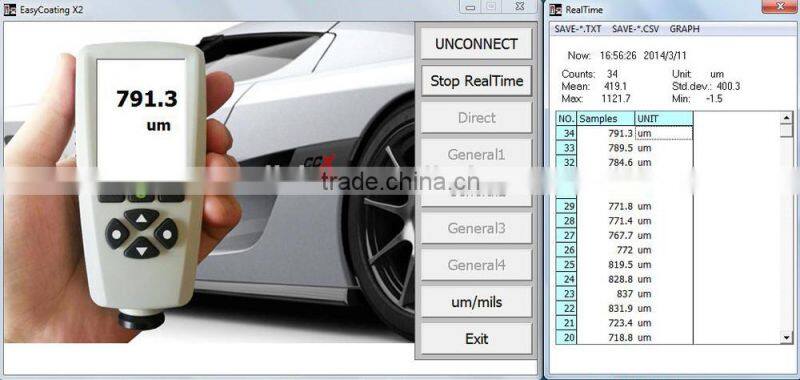

Real-time recording, ensure data integrity

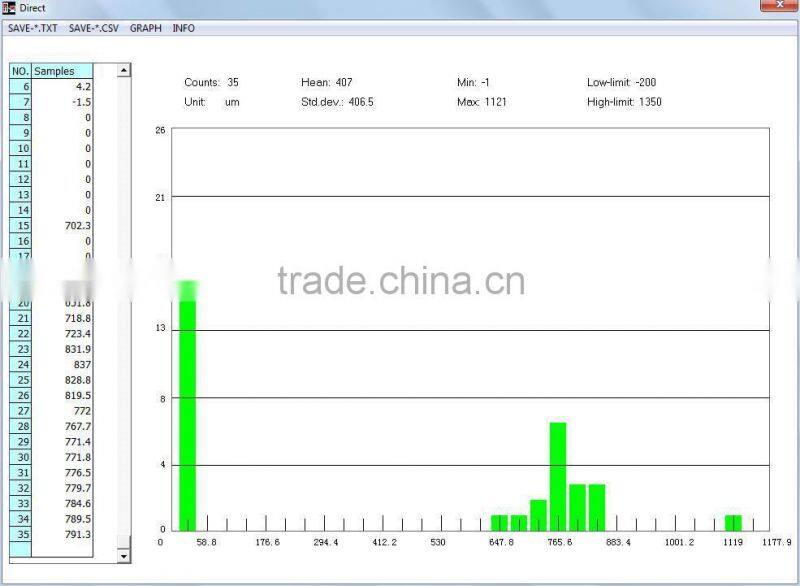

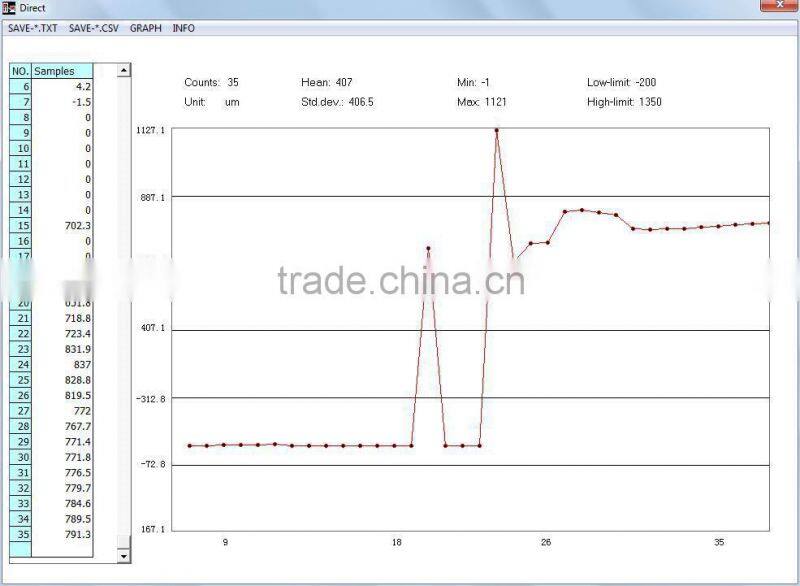

Unique software designed to make data analysis more reliable
| Functions | Magnetic | Eddy Current |
| Magnetic properties | √ | |
| Electrical properties | √ | |
| Curvature radius | √ | √ |
| Substrate thickness | √ | √ |
| Size of measuring area | √ | √ |
| Position and shape | √ | √ |
| Surface roughness | √ | √ |
| Sample deformed | √ | √ |
| Adhesive substances | √ | √ |
| Strong magnetic field | √ | |
| Temperature and humidity | √ | √ |
| Measuring operations | √ | √ |
| Low battery | √ | √ |
| Probe wear | √ | √ |
