IGBT high frequency induction annealing machine
Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge,
annealed sink, stainless steel tube, tableware and cup.
Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle,
blade, aluminum pan, aluminum pail, aluminum radiator and various alumimum products.
YONGKANG YUELON ELECTRONIC EQUIPMENT CO.,LTD
YUELON is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction heating equipment and systems.
Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial heating
process. that are used for application such as brazing, annealing, quenching, forging, melting, shrink fitting etc.
our induction heating machine are Available from 2KW to 1500KW deliverable output power with 0.5KHZ to 1.1MHZ operating frequency range.
All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series): 0.2-20KHZ
High frequency series (abbr. HF series): 30-100KHZ
Superaudio frequency series (abbr. SF series): 8-40KHZ
Ultrahigh frequency series (abbr. UF series) : 100-1000KHZ
High frequency series:
Model |
Maximun input power |
Oscilating frequency |
Maximum input
current |
Input voltage |
Water flow |
Net weight |
HF-15A/AB |
7KW |
30-100KHZ |
32A |
220V 50hz |
0.2Mpa,2-5L/min |
28kg |
HF-25A/AB |
15KW |
32A |
35kg |
|||
HF-25ABD |
25KW |
30-80KHZ |
23A |
380V 50Hz |
0.2Mpa,6L/min |
58kg |
HF-35AB |
35KW |
55A |
62kg |
|||
HF-40AB |
40KW |
60A |
62kg |
|||
HF-45AB |
45KW |
68A |
85kg |
|||
HF-50AB |
50KW |
90A |
89kg |
|||
HF-60AB |
60KW |
105A |
126kg |
|||
HF-70AB |
70KW |
110A |
145kg |
Application:
The heat treatment like metal anneal, diathermanous shaping, high frequency quenching,metal high frequency jointing, medium smelting, high
frequency soldering and brazing, heat smearing, heat plastic encapsulation,Induction Annealing, Bar end Induction heating, Induction Billet heating,
Induction Bonding, Induction Brazing, Induction Curing of powder or aqueous coatings, Induction Forging, Induction Forming, Induction Getter Flashing,
Graphite Suscepter Induction Heating, Induction Hardening, Induction Melting, Induction Normalizing, Induction Outgassing, Induction Preheating for
Galvanizing, Induction Shrink Fitting, Induction Soldering, Induction Tempering, Pre-Owned Equipment etc.

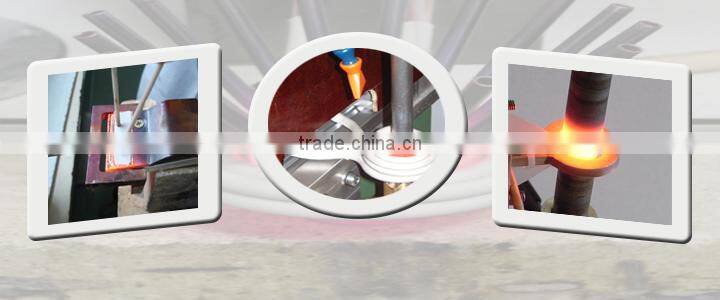

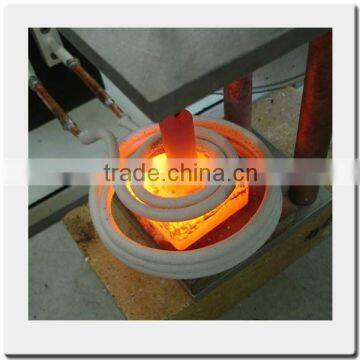

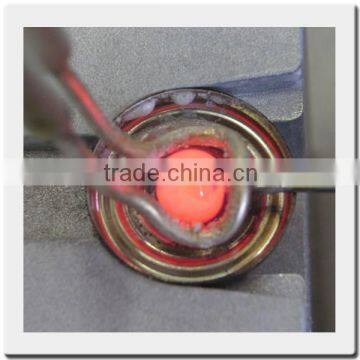

Annealing
Heating and slow cooling of a material for reducing hardness and brittleness. Typically, the material has been hardened either through working or
shaping rather than from an induction hardening process.
Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink,
stainless steel tube, tableware and cup.
Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum
pan, aluminum pail, aluminum radiator and various alumimum products.
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
