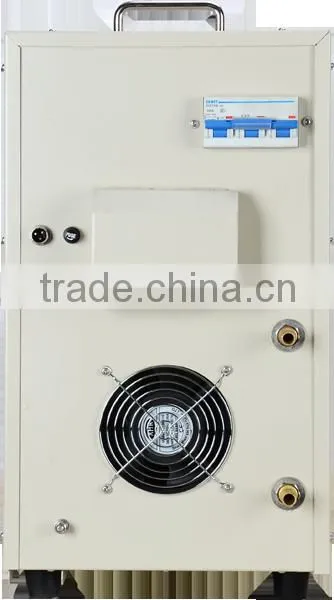

Help CenterIGBT High Frequency Induction Quenching Machine
Related Products
YONGKANG YUELON ELECTRONIC EQUIPMENT CO.,LTD
YUELON is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction heating equipment and systems.
Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial heating process.
that are used for application such as brazing, annealing, quenching, forging, melting, shrink fitting etc.
our induction heating machine are Available from 2KW to 1500KW deliverable output power with 0.5KHZ to 1.1MHZ operating frequency range.
All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series): 0.2-20KHZ
High frequency series (abbr. HF series): 30-100KHZ
Superaudio frequency series (abbr. SF series): 8-40KHZ
Ultrahigh frequency series (abbr. UF series) : 100-1000KHZ
Main models and specifications:
Model |
Maximum input power |
Oscillating frequency |
Max input current |
Input voltage |
Duty cycle |
HF-15A/AB |
7KW |
30-100KHz |
32A |
Single phase 220V 50Hz |
80% |
HF-25A/AB |
15KW |
30-80KHz |
23A |
3phase 380V 50Hz |
100% |
HF-25ABD |
25KW |
30-80KHz |
38A |
3phase 380V 50Hz |
100% |
HF-35AB |
35KW |
30-80KHz |
55A |
3phase 380V 50Hz |
100% |
HF-45AB |
45KW |
30-80KHz |
68A |
3phase 380V 50Hz |
100% |
HF-70AB |
70KW |
30-80KHz |
105A |
3phase 380V 50Hz |
100% |
high frequency induction quenching, IGBT induction quenching, IGBT induction quenching furnace
features of shaft hardening equipment.
1. meet with request of hardening all kinds of gear wheel and shafts, technical maturity, quality assurance, use electrical safety and stabilize. Please feel easy to use.
2. induction coils adopt forming coils, scanning hardening and water spray at same time.
3. can meet with request of hardening surface of shaft within diameter 150mm.
4. can meet with request of hardening the tope of gear wheel within diameter 250.
Welding equipment:
About frequency 15KHZ,can heating diameter 80 workpieces, can welding kinds of hard metal cutters
1.standard parts, fastener parts heating.
2. drill steel, drill tool are tempering, forging, extrusion Etc, eating.
3. diamond saw blades, rill tool’s welding
4. drill bit, coal drill bit, pick bit’s welding
5. braze lathe tool, milling cutter and all kinds of wooden cutters, braze high speed steel saw blades.
Hardening equipment:
frequency about 40KHZ,smaller can hardening high precision small shaft within diameter 10, hardening depth can keep within 1mm, bigger can hardening big shaft which diameter within 250, also can hardening
Gear wheel diameter within about 500 and 800.
1. hardening parts of automobile, motorbike, mold, agricultural machinery.
2. hardening machinery parts, such as: all kinds of gear wheel, chain wheel, kinds of axis, pin.
3. hardening the industrial of machine tool, such as : bed guide way of machine tool.
4. heat treatment pliers, spanner, screwdriver, drill, axe
5. hardening pin, piston ring, spring pin, valve, shifting fork.
6. all kinds of track spiker.
Annealing equipment:
1. Annealing whole or partial all kinds of machinery parts.
2. tension and annealing stainless steel container which within diameter 300mm.
3. heating and bending the plate spring of automobile.
4. hot riveting impeller, heating and hot rolling steel tube, hot rolling twist drill.
Forging equipment: Forging dies, open die forging equipment: extrusion, rotational moulding, cut off, bending torsion shaping equipment: machinery press, automatic forging press, hydraulic press, shaping equipment, forging hammer, forging machine, cut machine, bend correction machine, riveting machine, forging use industrial furnace and energy conservation technology, forging
Example :
1.standard parts,fastener through heating before forging,oxic horizon little.
the lead manufacturer in china fastener line,Gem-Year Industrial Co., Ltd use our machine.
2.depth of quenching required more than 3mm,more than 8mmshaft quenching.
3.steel tube necking down,fire-fighting apparatus and materials,gas-tank,
oxygen bottle,dia.Φ40mm-Φ150mm-250mm, large-scale elbowtube end expansion.
4.excavatorshovel head quenching
5.large-scale drill bit, cutting-tool welding
6.mallet alloy,red copper annealing,welding
tal smelting
8.gear, chain wheel quenching
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
...
