0.6/1kv 4x75mm2 Copper Conductor Pvc Insulated Pvc Sheath Power Cable

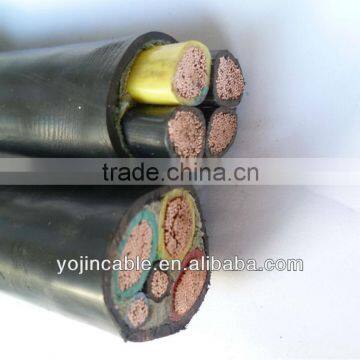

0.6/1kv 4x75mm2 Copper Conductor Pvc Insulated Pvc Sheath Power Cable photo-1
US$ 0.5 - 200 MOQ: 5000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
ShangJin or OEM
Model Number:
Cu/PVC/PVC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name ShangJin or OEM
Model Number Cu/PVC/PVC
Insulation Material PVC
Type Low Voltage
Application Construction
Conductor Material Copper
Jacket PVC

Specifications

copper conductor PVC power cable ,
Voltage: 0.6/1KV
Cross section:1.5mm2 to 500mm2
OEM accept , Standard:IEC60502-2 GB1270



              PVC  insulation PVC sheath power cable



 The style ==>





Type Description
Cu/PVC/PVC (VV) Copper conductor PVC insulation PVC sheath power cable
Al/PVC/PVC (VLV) Aluminum conductor  PVC insulation PVC sheath power cable









Physical Properties :
1) the working temperature of cable should be not be highter than 70 °C;
2) when core is in short-circuit ( max 5s),the tiptop temperature of cable conductor should be not be exceed 160 °C ;
3) the ambient temperature should not be lower than 0 °Cwhile installation ;
4) Bending radius of single core cable : steel tape armoured is 20D , non-steel tape armoured is 15D ;
5)the rated voltage 0.6/1kv , and suit for the AC.50HZ ,the test voltage 3.5kv/5min;
6) the number of cores from 1 to 5 .

Chemical Properties :
    this cable has perfect resistant against acids ,alkalis ,grease & organic solvents ,
 and has FR or FP effect .









STRUCTURE SIZE   ====>













 PICTURE'S  SHOW  ====>
