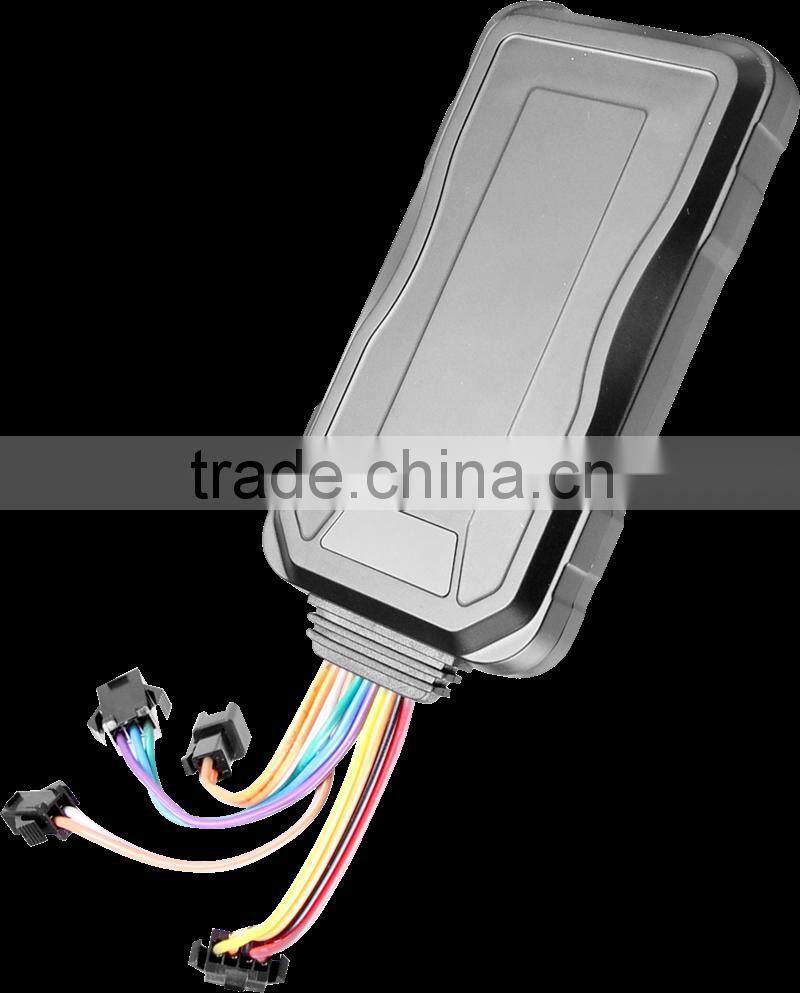

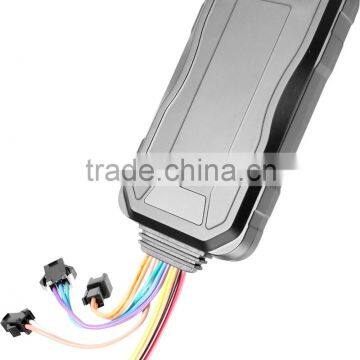

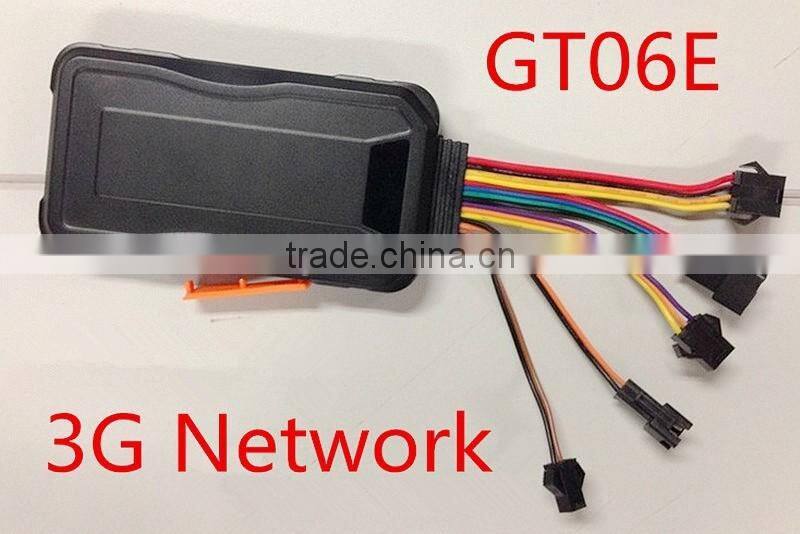

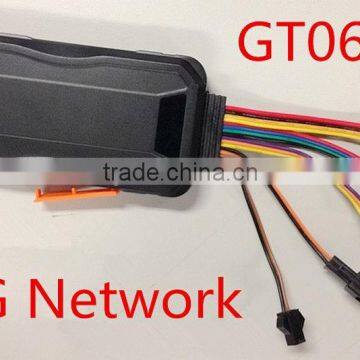

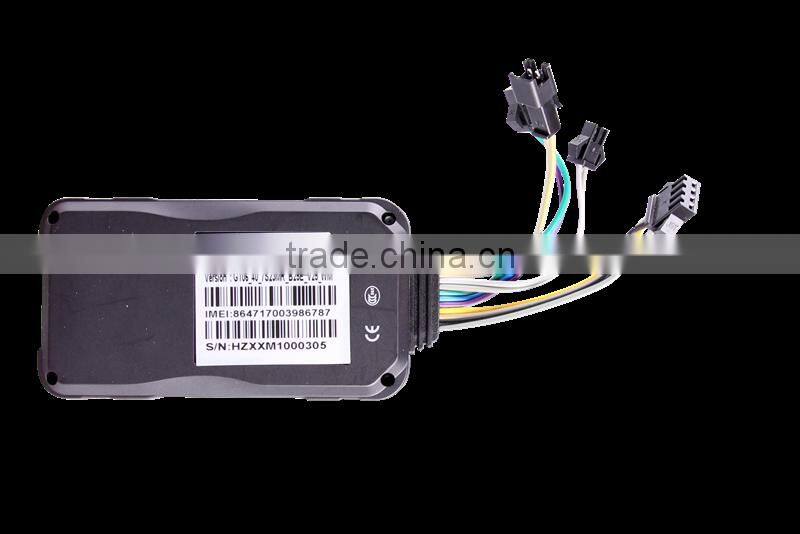

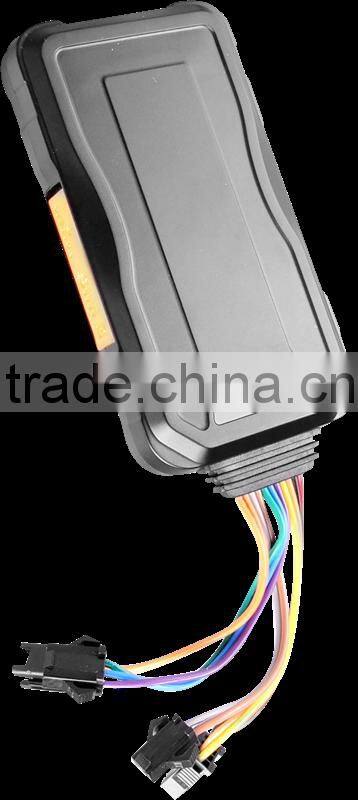

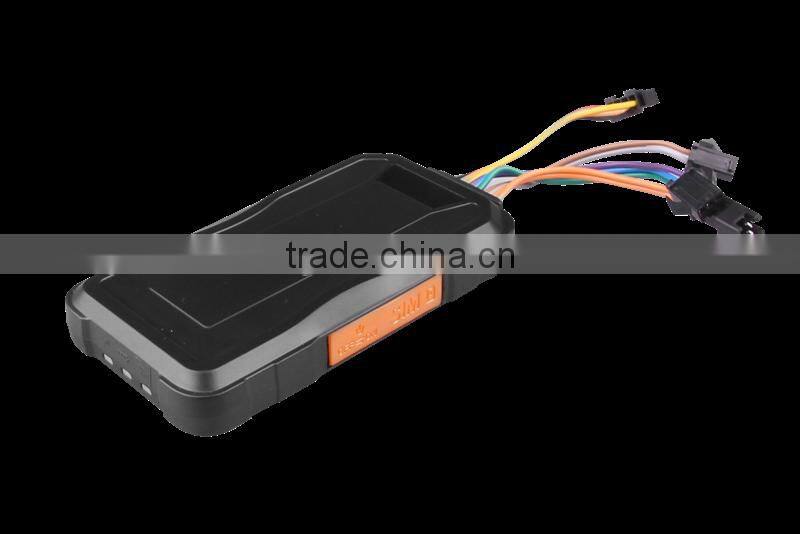

Newest 3G WCDMA 2100MHz GPS Tracker GT06E
Feature list:
GSM 850 / 900 / 1800 / 1900 MHz Quad-band
WCDMA 850/900/1900/2100 MHz
WCDMA+EDGE+GPRS wireless network
Real time position & tracking
SOS alarm
Geo-fence alarm
Mileage calculator
Air update
Analogue/ Digital input
Output control
Remote Tele-cut off (petrol / electricity) function
Support ACC detection, real-time reporting car status
Built-in acceleration sensor for vibration/displacement/low battery/power off alert alarm

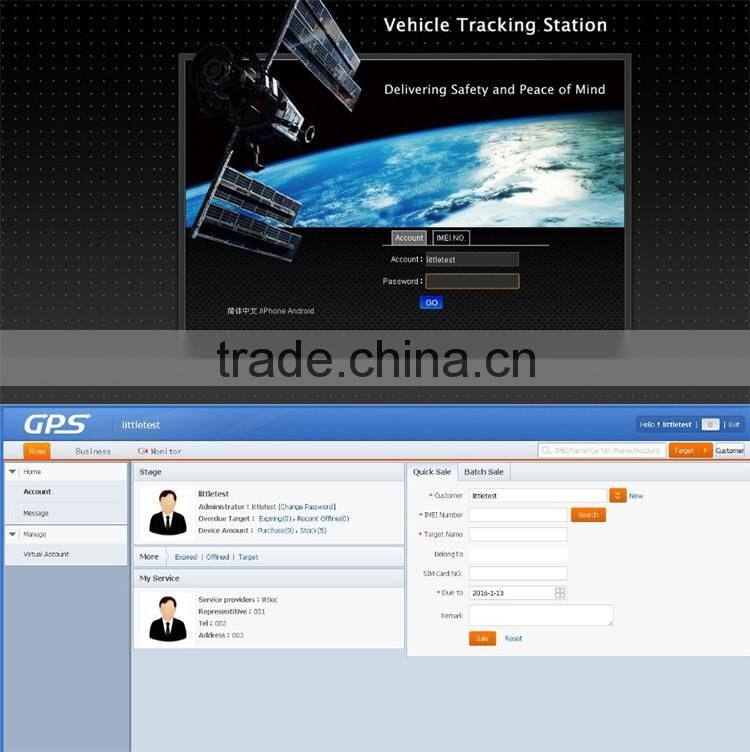

Multi ways to query position: SMS,APP ,Internet
Hardware Specification | |
Communication System | WCDMA/GSM |
Frequency | WCDMA 850/900/1900/2100MHz |
GSM 850/900/1800/1900MHz | |
Networks | WCDMA /EDGE/GPRS |
Output Power | Class 3 (24dBm +1/-3dB) for UMTS bands |
Class 4 (33dBm ±2dB) for GSM 850/900MHz | |
Class 1 (30dBm ±2dB) for GSM 1800/1900MHz | |
Receive Sensitivity | -110dBm/UMTS Bands |
-106dBm/GSM 900MHz,GSM 1800MHz | |
GPS | |
GPS Chip | MTK high sensitivity GPS chip |
Frequency | L1,1575.42MHz C/A code |
Channels | 66 |
Location Accuracy | <10 meters |
Tracking Sensitivity | - 165dBm |
Acquisition Sensitivity | - 148dBm |
Location time | Hot start:≤2sec(open sky) |
Cold start:≤35sec(open sky) | |
Main Specifications | |
Monitoring Scope | ≤ 5M |
Antenna | Built-in GPS ceramic antenna; GSM quad-ban antenna |
LED Indicator | GPS(blue), GSM(green), Power(red) |
Operating Voltage | 9-36VDC |
Operating Temperature | -20℃-70℃ |
Operating Humidity | 5%~95%,non-dense |
Built-in Battery | 450mAh/3.7Vindustrial lithium polymer battery |
Standby | 4 hours |
Dimension | 98(L) ×52.0 (W) ×15.0 (H) mm |
Weight | 80g |

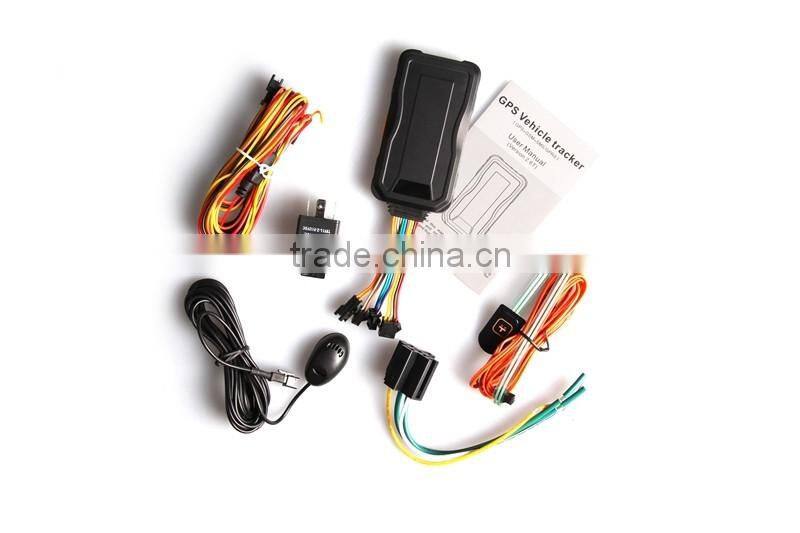

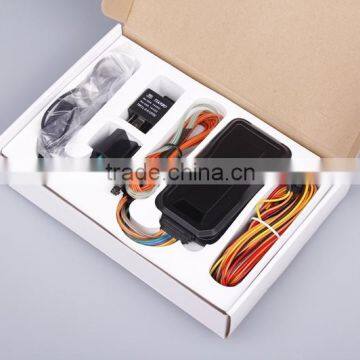

Package Including:
GPS Tracker GT06E
Relay
Microphone
sos alarm button
Power cord
User Manual
Shenzhen Haoday Technology Co., Ltd. is a manufacturer and reseller of GPS tracker and car alarm system with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in fleet management, and tracking system and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
