WCDMA 3G GSM Car GPS 3G SIM Card GPS Tracker Xt007W GPS Tracking device for 3G
1. Products Overview
Thanks for purchasing our product! Tracker is a GPS/ GPRS based tracking device designed for heavy motorbike, intercity bus , school bus and fleet management And support WCDMA 3 G network.
It has built-in terminals of GPS module and GSM communication module, which are used for getting the location data and send it to authorized phone number via SMS, and tracking through free maps Google Earth or Google Map; at the same time, the GSM module can be sent data to the internet server, which can realize the checking, monitoring and managing of the device on computer.
2. Application:
- Heavy motorbike
- Intercity bus, school bus
- Fleet management etc
3. Tracker has the following features and functions:
Water resistance (close to IP67)

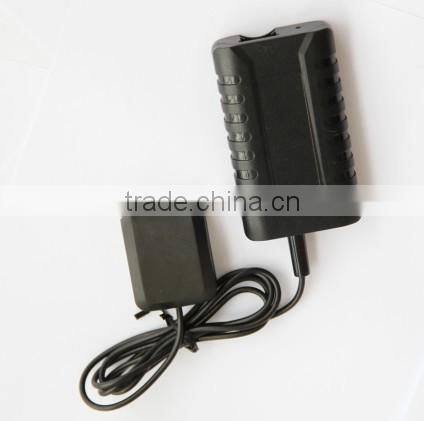

Compatible with built-in or external antennas
Remove alarm
Tracking via SMS/GPRS (TCP/UDP)
Real time tracking
Tracking regularly
SOS emergency calling
Geo-fence alarm
Over speed alarm
Internal battery low alarm
Car Low battery alarm
Data logger (built-in 8M flash memory)
Remotely monitoring
Has 2 digital outputs, 3 digital inputs and 2 analog inputs
ACC detection
Oil detection
Remote fuel/engine cut off
Cut external power off alarm
Hitting alarm
3G accelerometer
4. Specification:
| Items | Specification |
| Power Supply | DC 9-33V/1.5A |
| Backup Battery | Rechargeable 430 mAh battery (3.7V), |
| Normal Power Consumption | 60mA |
| Dimension | 88mm*50mm*20mm |
| Weight | 87g |
| Operating Temperature | Built in battery -25°C to +60°C standard(-40°Cw/optional battery) |
| Humidity | 5% to 95% Non-condensing |
| GSM Module | EUX XT-007E GSM/GPRS/EDGE900/1800MHZUMTS/HSDPA900/2100MHZ NAX XT-007N GSM/GPRS/EDGE850/1900MHZUMTS/HSDPA850/1900MHZ Two types of modules, when using, must confirm local 2 g (GSM) and thefrequency of 3 g (WCDMA) |
| GPS IC | UBLOX GPS IC |
| GPS Sensitivity | -161 dB |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz |
| Channels | 50 channel |
| Position Accuracy | < 10 M 2D RMS |
| Velocity Accuracy | 0.1 M/S |
| Time Accuracy | 1 us synchronized to GPS time |
| Reacquisition | 0.1 s (average) |
| Hot Start | 3 sec., average |
| Cold(warm) Start | 37sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 500 meters/second (1000 knots) max. |
| Acceleration Limit | Less than 4g |
| LED | 3 LED lights to show power (red), GPS (yellow), GSM (blue). |

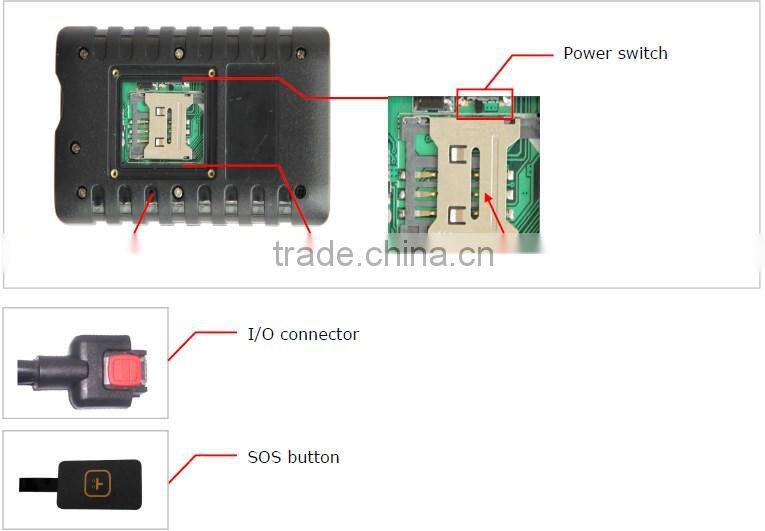

| Button | SOS button, use for SOS emergency calling and sending SOS SMS. |

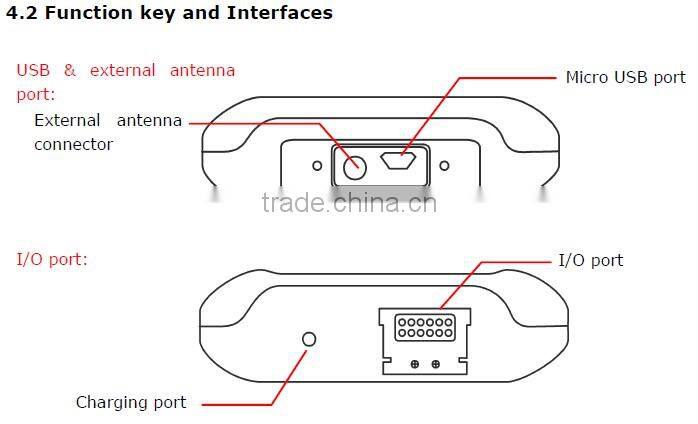

| Interface | 2 digital outputs; 3 digital inputs; 2 analog inputs. |

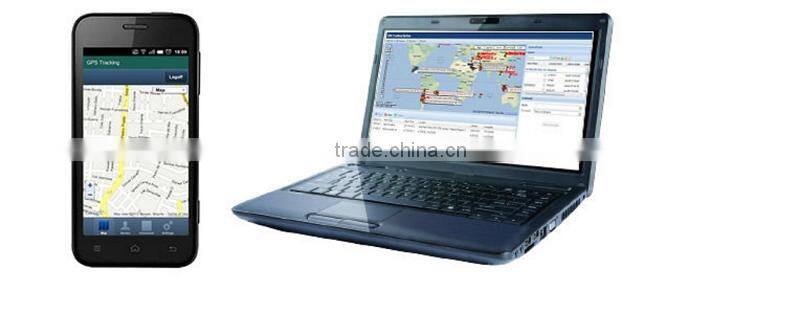

PC platform and Mobile APP tracking and monitoring 3 months free using
Our Demo Platform: /gps
Login: Guest
Password: 666666
Shenzhen Haoday Technology Co., Ltd. is a manufacturer and reseller of GPS tracker and car alarm system with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in fleet management, and tracking system and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
We're a professional gps trackers golden supplier, welcome to inquiry gps tracker wholesale!
