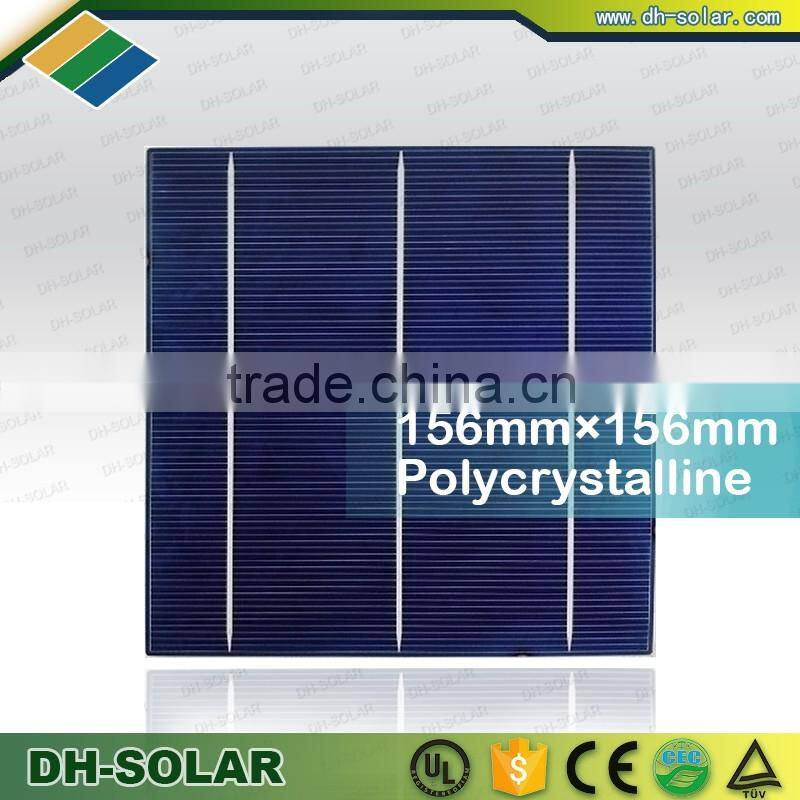

Help CenterEff 18.4% 3BB Low Price Poly Solar Cell Solar Energy
Related Products
-
Eff 17.8% Poly Solar Cell for Solar Module WholesalerUS$ 0.23 - 0.3MOQ: 200 Watts -
4.33W Poly Solar Cell for Solar Module WholesalerUS$ 0.23 - 0.3MOQ: 200 Watts
-
High Efficiency 3BB Multi Solar Cell for Soalr ModuleUS$ 0.23 - 0.3MOQ: 200 Watts
-
High Efficiency 6 Inch Poly Solar Cell for Solar PowerUS$ 0.23 - 0.3MOQ: 200 Watts
-
Eff 18.4% 3BB Cheap Poly Solar Cell Solar EnergyUS$ 0.23 - 0.3MOQ: 200 Watts
Performance and Quality
Industry-Leading Efficiency on P-type Monocrystalline and Multicrystalline Silicon Solar cell
Robust Reliability Performance for Potential Mudule Benefit Beyond 25 years
Compatible with Present Module Manufactureing Process
PID Resistant Confirmed by All Major Customers and testing Labs
100% In-line Optical and Electrical Inspection
Physical Characteristics:
Dimension |
156mm*156mm+/-0.5mm |
Wafer Thickness |
200um+/-30um |
Front(-) |
Three 1.5 mm wide bus bars(silver)with distance 52mm, |
Back(+) |
2.5 mm wide silver/aluminum soldering pads, aluminum local back surface field. |
Electrical Characteristics:
Efficiency Class |
1660 |
1680 |
1700 |
1720 |
1740 |
1760 |
1780 |
1800 |
Efficiency(%) |
16.6 |
16.8 |
17 |
17.2 |
17.4 |
17.6 |
17.8 |
18 |
Pmax (w) |
4.04 |
4.09 |
4.14 |
4.19 |
4.23 |
4.28 |
4.33 |
4.38 |
Voc (V) |
0.607 |
0.611 |
0.615 |
0.619 |
0.623 |
0.627 |
0.631 |
0.635 |
Isc (A) |
8.401 |
8.439 |
8.477 |
8.515 |
8.553 |
8.591 |
8.629 |
8.667 |
Vmax (V) |
0.514 |
0.517 |
0.52 |
0.523 |
0.526 |
0.529 |
0.532 |
0.535 |
Imax (A) |
7.849 |
7.898 |
7.947 |
7.996 |
8.045 |
8.094 |
8.143 |
8.192 |
Temperature Coefficients:
Voltage |
-2.08 |
mV/K |
Current |
4.47 |
mA/K |
Power |
-0.398 |
%/K |
Contact:
Alaine Wu
Mob: 86-13242032215
