Product |

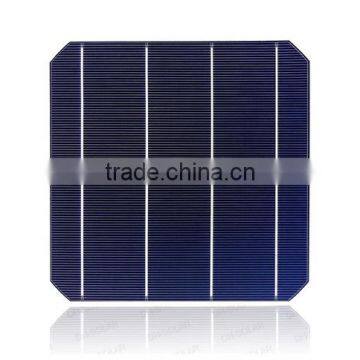

DH-Solar 4BB 156*156mm Monocrystalline Silicon Solar Cell |
Model Number |
DH-S-4BB |
Material |
Monocrystalline Silicon |
Size |
156*156mm |
Number of Cells |
1pcs |
Efficiency |
18%~20.4% |
Max. Power |
4.3~4.98watt |
Thickness |
200 μm +/-20μm |
Front |
1.0mm Bus Bars(Silver);Dark Blue Silicon Nitride AR Coating. |
Back |
2.5mm Wide Soldering Pads(Silver);Back Surface Field (Aluminium) |
Electrical Characteristics:
Efficiency Class |
1800 |
1820 |
1840 |
1860 |
1880 |
1900 |
1920 |
1940 |
1960 |
1980 |
2000 |
2020 |
2040 |
Efficiency(%) |
18 |
18.2 |
18.4 |
18.6 |
18.8 |
19 |
19.2 |
19.4 |
19.6 |
19.8 |
20 |
20.2 |
20.4 |
Pmax (w) |
4.40 |
4.45 |
4.50 |
4.54 |
4.59 |
4.64 |
4.69 |
4.74 |
4.79 |
4.84 |
4.89 |
4.93 |
4.98 |
Voc (V) |
0.628 |
0.63 | 0.632 | 0.634 | 0.636 | 0.637 | 0.639 |
0.641 |
0.643 |
0.645 |
0.647 |
0.649 |
0.651 |
Isc (A) |
9.03 |
9.06 | 9.09 | 9.12 | 9.15 | 9.18 | 9.21 |
9.24 |
9.27 |
9.30 |
9.33 |
9.36 |
9.39 |
Vmax (V) |
0.526 |
0.528 | 0.531 | 0.533 | 0.535 | 0.537 | 0.539 |
0.541 |
0.543 |
0.535 |
0.537 |
0.539 |
0.541 |
Imax (A) |
8.39 |
8.45 | 8.51 | 8.57 | 8.62 | 8.68 | 8.74 |
8.79 |
8.83 |
8.87 |
8.91 |
8.95 |
8.99 |
Voltage |
-2.08 |
mV/K | |||||||||||
Current |
4.51 |
mA/K | |||||||||||
Current |
-0.4 |
%/K |
Feature:
Performance and Quality
Industry-Leading Efficiency on P-type Monocrystalline and Multicrystalline Silicon Solar cell
Robust Reliability Performance for Potential Mudule Benefit Beyond 25 years
Compatible with Present Module Manufactureing Process
PID Resistant Confirmed by All Major Customers and testing Labs
100% In-line Optical and Electrical Inspection
Q1: What is the quality of your products?
A: A grade solar cell mainly,but we also offer other quality as you need.
Q2: How long is the delivery time?
A: In 3-5 workdays after we got the payment. We will try our best to ship out on same day for payment cleared before 05:00 PM.
Q3: About replacement/exchange?
A: We accept exchange/replace item if customers received defective merchandise.
Q4: About Payment ?
A: We accept :1. L/C ; 2. T/T (Bank Transfer, Wire Transfer); 3. Western Union ; 4. Paypal (For Sample Fee & Courier cost).
You can try Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
Q5: About Shipment?
A: we accept DHL, FedEx,TNT, EMS, DHL, UPS.
