15*6*2.6mm Micro Phone Receiver

15*6*2.6mm Micro Phone Receiver thumbnail-1
15*6*2.6mm Micro Phone Receiver thumbnail-2
15*6*2.6mm Micro Phone Receiver thumbnail-3
15*6*2.6mm Micro Phone Receiver thumbnail-4
15*6*2.6mm Micro Phone Receiver thumbnail-5
15*6*2.6mm Micro Phone Receiver thumbnail-6
15*6*2.6mm Micro Phone Receiver photo-1
15*6*2.6mm Micro Phone Receiver photo-2
15*6*2.6mm Micro Phone Receiver photo-3

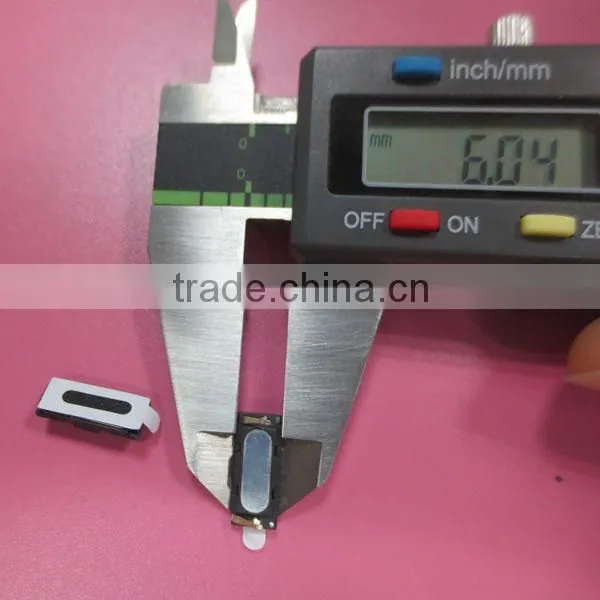

15*6*2.6mm Micro Phone Receiver photo-4
15*6*2.6mm Micro Phone Receiver photo-5
15*6*2.6mm Micro Phone Receiver photo-6
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Cosson
Model Number:
micro receiver
Contact Supplier Request Quote Chat Now
Dongguan Cosson Electronic Plastic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Cosson
Model Number micro receiver
Type Receiver

Specification



Items

Technical Specifications

1. Resonance Frequency

650±20% Hz

2. DC Resistance

30.4±10%ohms

3. Impedance

32±15%ohms at 2kHz

4. Measuring Diagram

Shown in Fig.1

5. Frequency Response

Shown in Fig.2

6. Sensitivity

118±3dB at 1.0kHz(180mV, IEC318ear)

Max. Continuous Power

7.

Max.short term power

10mW

       (Sine wive)

30mW

8.Long-term Storage temperature

-25℃~65℃

9.Long-term working temperature

-20℃~60℃

10.E.S.D LEVEL

NO

11. Weight

Approx 1.8 gram



Reliability Test



Items

Technical Specifications



General



After any following tests the response at 1kHz shall not deviate more than ±3dB from initial value


  1. High Temperature Storage Test





80±5℃ 96hours
  1. Low Temperature Storage Test





-40±5℃ 96hours

3. Humidity Shock Test







Temperature:  40±5℃

Humidity (93+2/-3)%R.H

Time: 96hours

4. Temperature Shock Test

Total 5 cycles

One cycle consisting of  -40±5℃ 30min

20±5℃ 15min

80±5℃ 30min

20±5℃ 15min

5.Drop Test







Height: from 1m height onto hard wood or steel surface

Number of drops 6

Positions X, Y, Z

6. Vibration Test









Frequency 10~55Hz

Amplitude 1.5mm

Frequency 10~55Hz Amplitude 1.5mm Time 30

Minutes per Axis (X, Y and Z-axis)

7.Load Test





RECEIVER: White noise for 96hours at 10mW input power



 15*6*2.6mm micro phone receiver



Application

*Computer motherboard

*GPS motherboard

*tablet PC motherboard (Mounting in PCB) etc

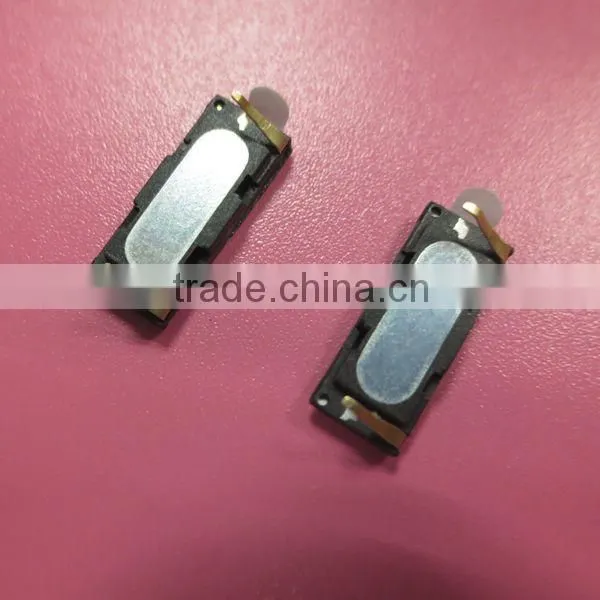

15*6*2.6mm micro phone receiver



15*6*2.6mm micro phone receiver15*6*2.6mm micro phone receiver



Packaging &shipping

Packing

Safety Carton box

custom packaging is also available



Shipping

DHL/UPS/FEDEX for samples or small orders

FOB China&CIF for bulk orders
