Home > Packaging & Printing > Packing Machinery > Laminating Machine > 3 Layer Blown Film Machine

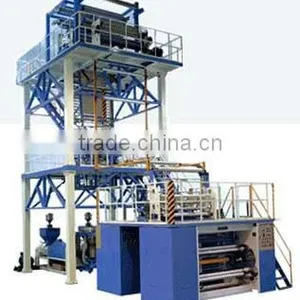

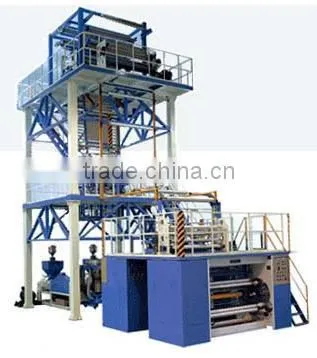

3 Layer Blown Film Machine

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

South Korea

Contact Supplier Request Quote Chat Now

Korexim Corporation Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin South Korea

Specification

Items / Model No	YJF-3- Ø60/ Ø70/ Ø60-1800L	YJF-3- Ø70/ Ø80/ Ø70-2200L	YJF-3- Ø80/ Ø100/ Ø80-2400L
Screw diameter	Ø60mm/ Ø70mm/ Ø60mm	Ø70/ Ø40/ Ø60/ Ø40/ Ø70	Ø80mm/ Ø100mm/ Ø80mm
Film thickness	0.03-0.2mm	0.03-0.2mm	0.03-0.2mm
Film width	1600-1700mm	2000-2100mm	2200-2300mm
Capacity/Hr(Max)	225Kgs/Hr	320Kgs/Hr	400Kgs/Hr
Roller width	1800mm(W)	2200mm(W)	2400mm(W)
Main motor	40Hp/75Hp/40Hp, Inverter Control	75Hp/10Hp/40Hp/10Hp/ 75Hp,Inverter Control	100Hp/125Hp/100Hp, Inverter Control
Type of Winder	Auto Double Station Surface winder / Auto Double Station Turret winder
Application	Printing, Lamination, Adhesive Tape, Food Stuff Packing, Industrial Packing

Application

Aluminum laminates, Medical grade films, Shrink hood films, Geo-membrane films, Diaper liners, Freezer packaging, Fruit juices, Masking films, Meat, sausage, cheese, ham packaging, Ready-made meals / retort films, Water film, Milk film

Main Features

Multi-Layer series co-extrusion blown film lines are available in a wide range of configurations from 2 to 5 layers to produce variety of films like liquid packaging films, food packaging films, ultra high barrier films, meat and cereal packaging films, oil packaging films, medical grade films, shrink hooding films, soap packaging films.
Five(5)- layer high barrier film with PP or PE / tie / Nylon / EVOH / Nylon / tie / PP or PE can find application in retortable pouches as well as long shelf-life food and meat packaging.

Thick five(5)- layer film is also used in vacuum forming applications for food containers. Multi-Layer lines are available with advanced features like integrated supervisory computer control, automatic thickness control, digital internal bubble cooling system and fully automatic center-gap-surface winder. A range of system solutions can be offered to attend the ultimate processing needs.

The extra long collapsing frame incorporating dynamically balanced aluminum idlers, helps producing films with improved flatness. These lines are offered with modular oscillating haul-off system which provides for excellent gauge randomization and improved roll geometry for easy subsequent conversions.
