5*5*2mm smallest SMD buzzer

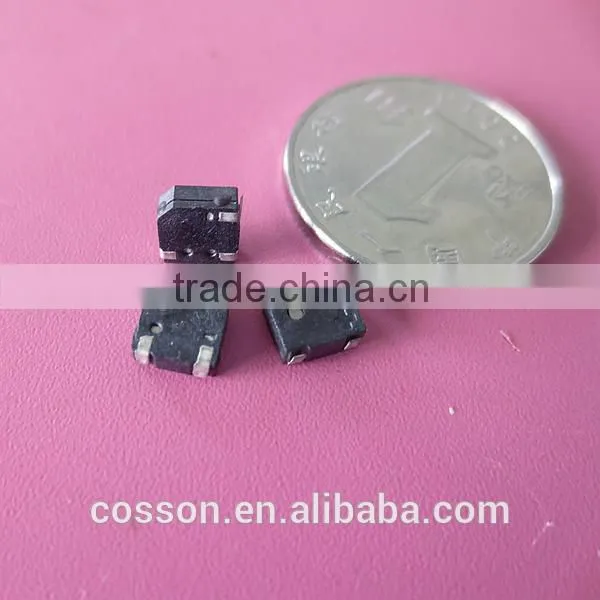

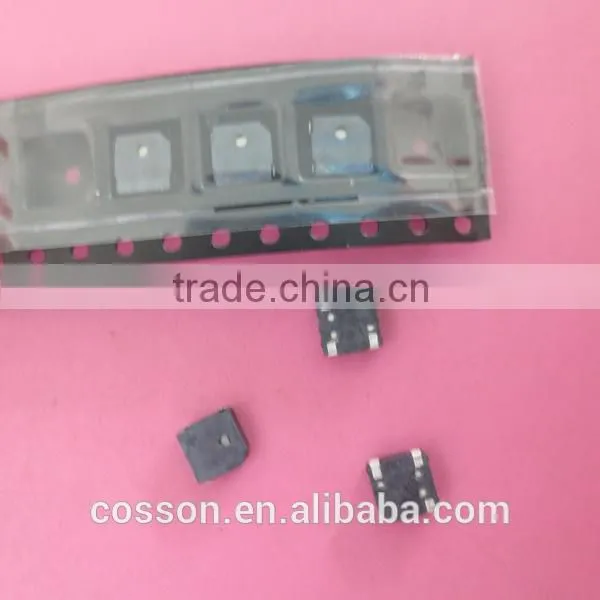

5mm smallest 280 degree SMD magnetic buzzer
1. Type:SMD buzzer;
2. Resonant Frequency:2700±300Hz;
3. SPL:min.80dB;
4.Size:5.0*5.0*2.0mm;
5.Rated voltage:3V;
6.Operating voltage:2~2Vp-p;
7.Rated current:MAX.110mA;
8. Operating Temperature:-25°c~+70°c;
9. Storage Temperature:-30°c~+80°c;
10.Weight:0.3g;
11.Environmental Protecti Regulation:RoHS;

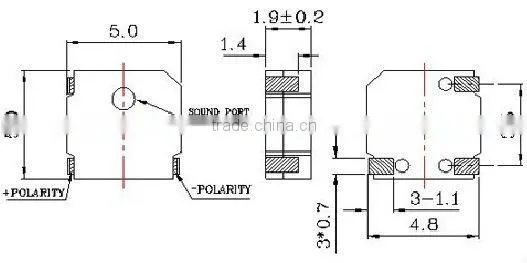

12.OUTLINE DRAWING:
4.Why choice us:
1.our product will give youan edge over your competitors
2. quality is our culture,we believe that the quality is the soul of an enterprise
3. all products have to pass strict inspection before they ship out

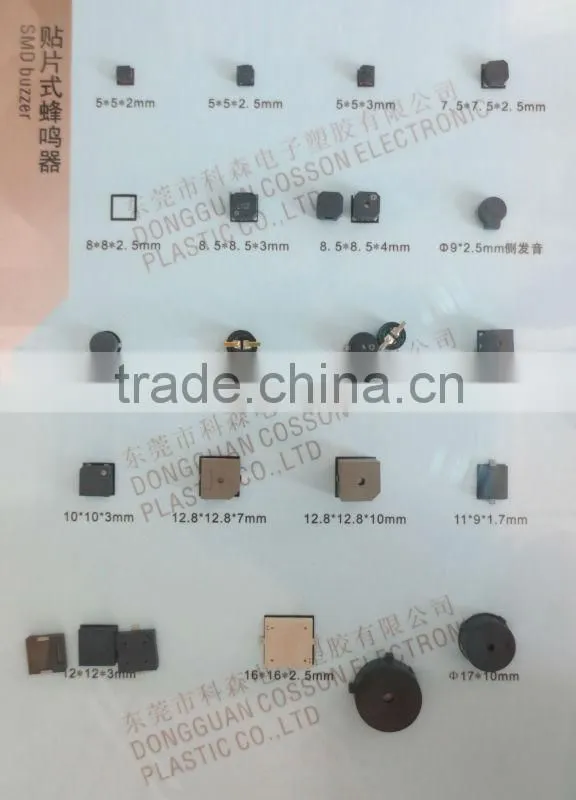

We specialize in producing Electro-acoustic components such as Buzzer (Piezoelectric buzzer /Electromagnetic buzzer / Mechanical buzzer / SMD buzzer ), Piezoelectric ceramic element ,Condenser microphone , Ultrasonic sensor , Atomiztion piece etc.
Please don't not hesitate to send e-mail to me,.i am sure we will be your best partner.
