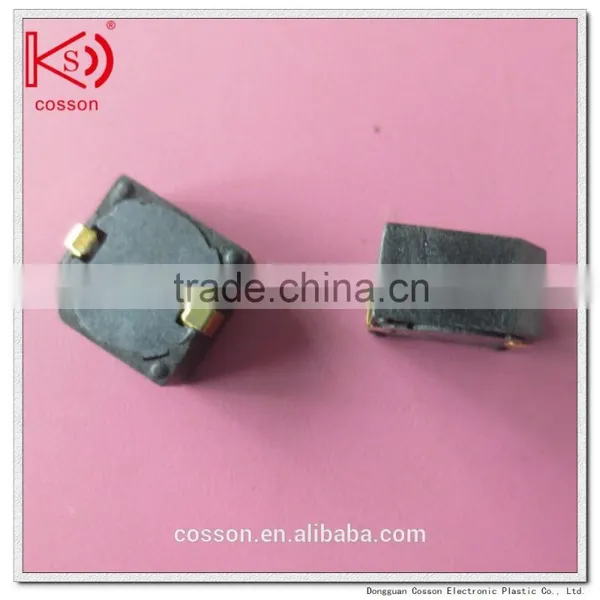

Internal Driver Square SMD Magnetic Buzzer(9.6*5mm)

internal driver square SMD Magnetic Buzzer(9.6*5mm)

3V SMD Magnetic Buzzer
1. Type:SMD  Magnetic buzzer;
2. Resonant Frequency:2700±300Hz;
3. SPL:min.85dB;

4.Size:9.6*9.6*5.0MM;

5.Rated voltage:3V;

6.Operating voltage:2~5Vp-p;

7.Rated current:MAX.30mA;

9. Operating Temperature:-25°c~+70°c;

10. Storage Temperature:-30°c~+80°c;

11.Case material and colour:PPS(black);

12.Wight:2.0g;

13.Environmental Protecti Regulation:RoHS;

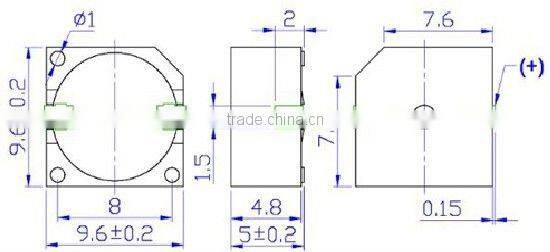

14.OUTLINE DRAWING:

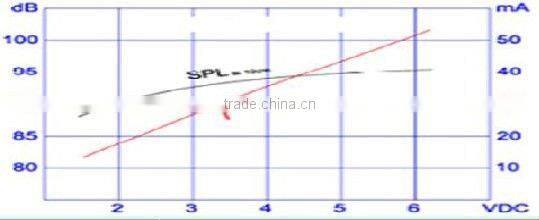

15.FREQUENCY characteristics:
