Continuous Tone High DB Piezo Buzzer With Three Wires(self Drive Type)

FOB Price

Negotiable / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	COSSON
Model Number	KS-4216TD12WA		Type	Other, Buzzer, auto-excitation type

continuous tone high DB piezo buzzer with three wires(self drive type)

1.Operating Voltage range: 3.0-15.0Vp-p

2.Rated Voltage:12.0V DC

3.Rated Current:Max.12 MA

4.Sound Pressure level:Min.100 dB(at 10cm at Rated Voltage)

5.Frequency of output Signal:2800± 500 HZ(Square Wave)

6.Operating Temp:-20°C~60°C

7.Storage Temp:-30°C~70°C

8.Dimension:Φ42*H16 mm

9.Outer Covering Mateeial:ABS

10.Environmental Protection Regulation: RoHS

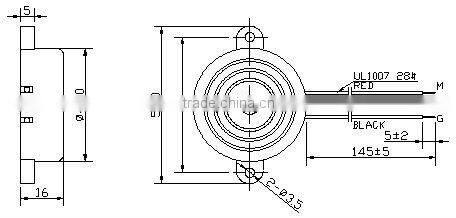

11.Outline drawing:

Unit:mm TOL:±0.5

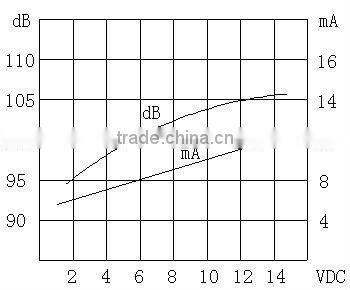

12.Frequency characteristics:

14.Our Advantage:1.good quality and competitive price;

2.On-time delivery;

3.Industry in first three;

4.Professional design and precise process;

5.Safety harmless;

6.Sell fast for overseas market;

other buzzer
