Self Drive Type Alarm Piezoelectric Buzzer Circuit Three Pole Sheet Steel Buzzer(Rohs&CE)
Negotiable
/ Piece
1000 Pieces(Min. Order)
- shenzhen/guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | COSSON | |
| Model Number | KS-3618T3P35A | Type | Other, Buzzer, Self drive type |
Product Description
KS-3618T3P35A Self drive type piezoelectric buzzer circuit 3.5khz with Three pole sheet steel
1.Specification:
No. | Item | Unit | Specification | Condition |
1 | Rated Voltage | VP-P | 5.0 | |
2 | Operating Voltage | VP-P | 1.0-30.0 | |
3 | Frequency of output Signal | KHZ | 3.0±0.5 | |
4 | Rated Current(MAX) | MA | 2 | |
5 | Resonant Resistance | ohm | 80 | |
6 | Static Capacitance | pf | 28000±30% | At120HZ |
7 | Operating Temp | °C | -20°C~70 | |
8 | Storage Temp | °C | -30°C~80 | |
9 | Dimension | mm | Ø36*18 | See appearance drawing |
10 | Weight | G | 4.2 | |
11 | Material identification | Brass |

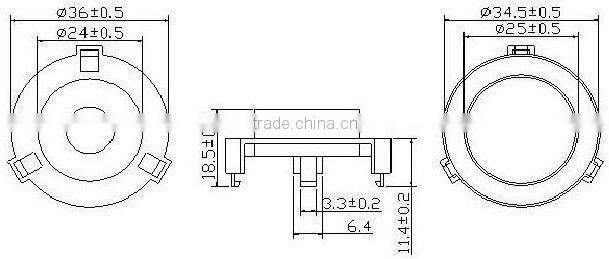

2.Outline drawing:

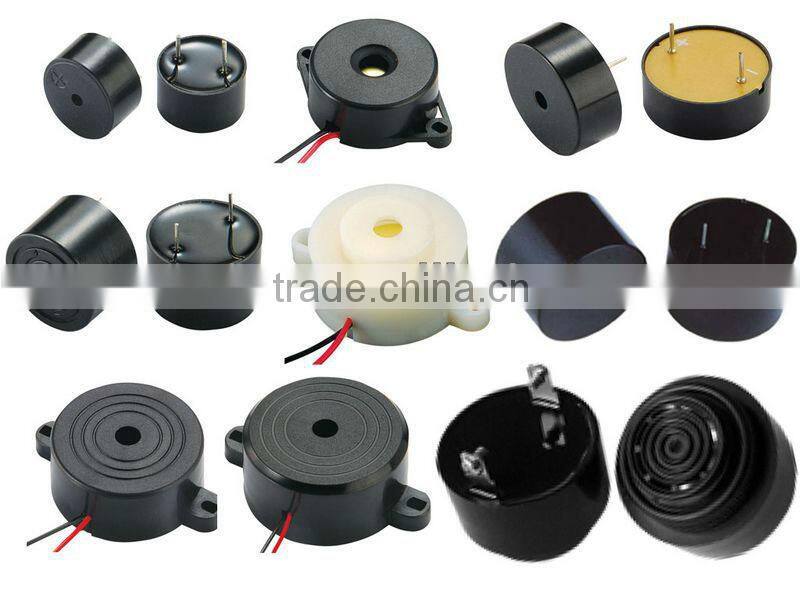

3.our other buzzer:
