KS-3618T3P35A Self Drive Type 12v/24v Piezo Buzzer Three Pole Sheet Steel Buzzer(Rohs&CE)
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
COSSON
Model Number:
KS-3618T3P35A
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Piez BuzzerNegotiableMOQ: 1000 Pieces -
35mm Three Pole Sheet Steel Piezoelectric Ceramic Buzzer(Self Drive Type)NegotiableMOQ: 1000 Pieces
-
High db 12v/24v Piezo Buzzer With Three Wires(Self Drive Type)NegotiableMOQ: 1000 Pieces
-
Continuous Tone High DB Piezo Buzzer With Three Wires(self Drive Type)NegotiableMOQ: 1000 Pieces
-
Low Current Consumption Piezo Buzzer(auto-excitation Type)NegotiableMOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
COSSON
Model Number
KS-3618T3P35A
Type
Other, Buzzer, Self drive type
KS-3618T3P35A Self drive type 12v/24v Piezo Buzzer 3.5khz with Three pole sheet steel
1.Specification:
No. |
Item |
Unit |
Specification |
Condition |
1 |
Rated Voltage |
VP-P |
5.0 |
|
2 |
Operating Voltage |
VP-P |
1.0-30.0 |
|
3 |
Frequency of output Signal |
KHZ |
3.0±0.5 |
|
4 |
Rated Current(MAX) |
MA |
2 |
|
5 |
Resonant Resistance |
ohm |
80 |
|
6 |
Static Capacitance |
pf |
28000±30% |
At120HZ |
7 |
Operating Temp |
°C |
-20°C~70 |
|
8 |
Storage Temp |
°C |
-30°C~80 |
|
9 |
Dimension |
mm |
Ø36*18 |
See appearance drawing |
10 |
Weight |
G |
4.2 |
|
11 |
Material identification |
Brass |

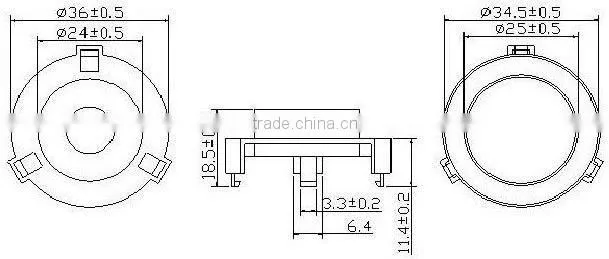

2.Outline drawing:

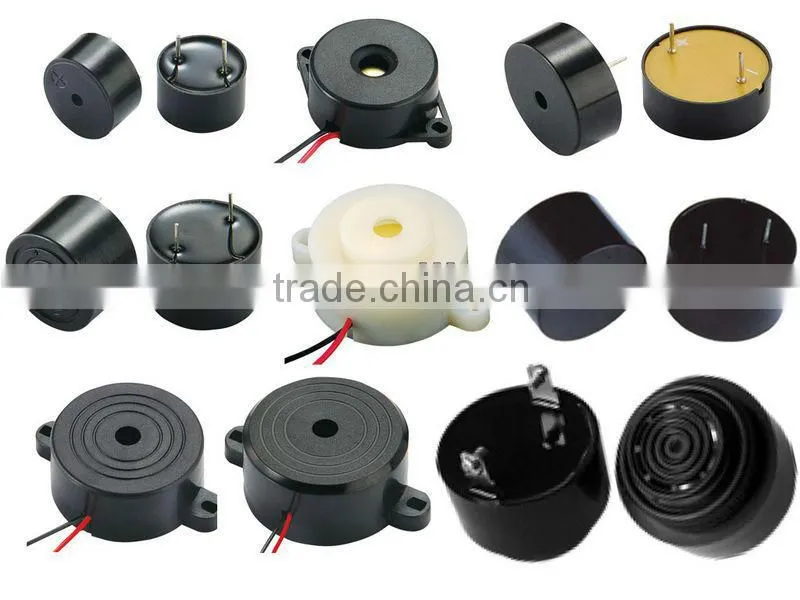

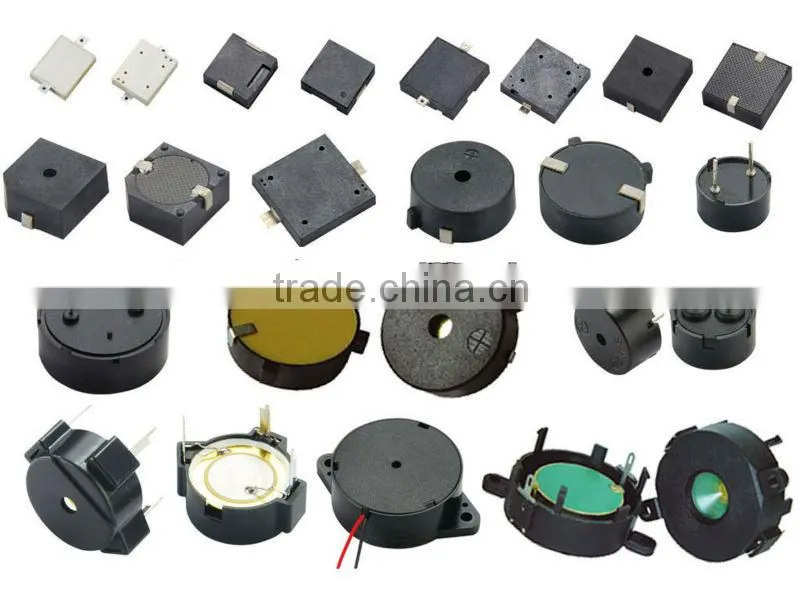

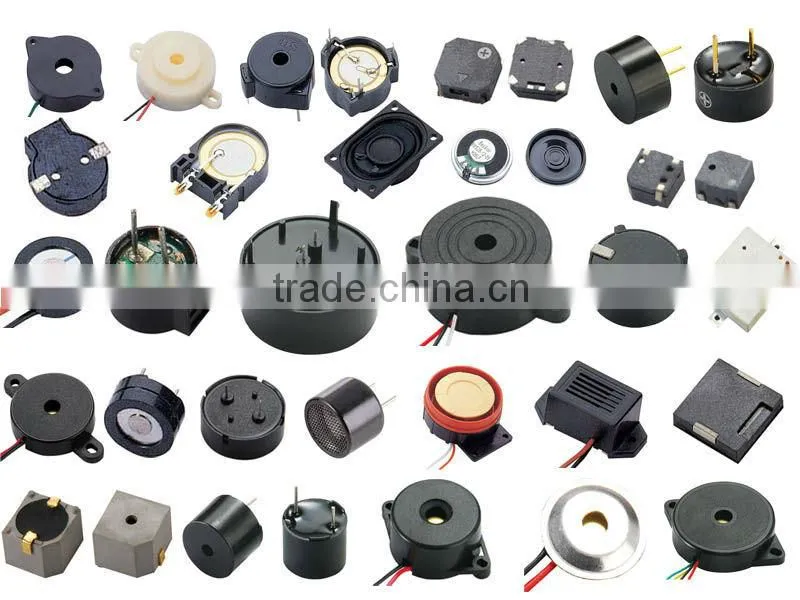

3.our other buzzer:
