Specifications
1,Thermostat sensor2,keep Closed(D type)
3,45C degree
4,Fast Shipping
5,CE&RoHS

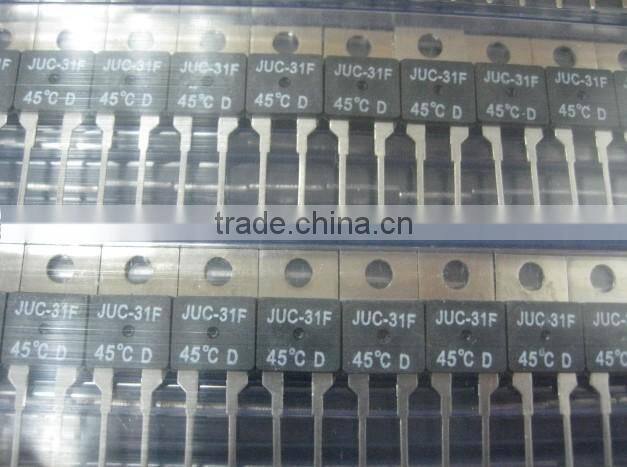

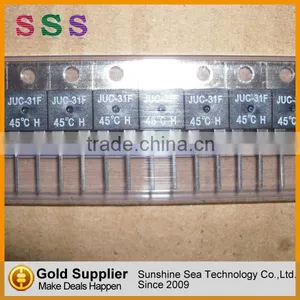

Temperature Control Switches or temperature relay TO-220 controlled fan cooling JUC-31F thermostat sensor
What is Specifications of our thermostat sensor ?
Model : JUC-31F
Technical parameters : System tactile temperature thermostat .
Sensitive and reliable . Suitable for circuit boards for temperature control or thermal overload protection .
1 . Conditions of Use
A,Relative humidity: +20 °C ambient issued at 95%
B, atmospheric pressure :86-106Kpa
C, Working Position: Any
2 . Technical Parameters
A, point form : 1D or 1H
B, contact load : 220VAC 1.5A or 24VDC 1.5A
C, Insulation resistance: ≥ 50MΩ normal temperature and humidity
D, Contact resistance : ≤ 100 mΩ
E, Dielectric strength : ≥ 500VAC
F, weight <2g
Features:
With stable performance , high precision , small size, light weight , high reliability, long life, small radio features dry worries .
Note:
1 , using the contact temperature installation should be charged with the metal cover up snapping apparatus mounting surface , to ensure that the temperature effect , should be coated with thermal grease or other similar thermal properties of the medium in the surface temperature .
2 , the installation can not cover up the top collapsed , loose or deformed , so as not to affect performance.
3, can not allow the liquid to penetrate the internal temperature may not make the shell cracks , are not free to change the shape of the external terminals.
4 , the product is not greater than 5A current in the circuit , chose the copper cross-section 0 5-1 mm 2 wire connection ; . No greater than 10A current in the circuit , chose the cross-section of 0.75-1.5 mm 2 copper wire connection.
5, the product should be less than 90% relative humidity , ambient temperature is below 40 °C ventilated, clean, dry , non-corrosive gases stored in the warehouse .
JUC-31F classification , in accordance with the temperature to points, can also be classified according to the material , you can also follow the installation way points.
According to the nature of the action : the action can be divided into normally open(H Type) and normally closed(D type).
According to the temperature to points, can be divided into : 0 degrees 5 degrees 10 degrees 15 degrees 20 degrees 25 degrees 30 degrees 35 degrees 40 degrees 45 degrees 50 degrees 55 degrees 60 degrees 65 degrees 70 degrees 75 degrees 80 degrees 85 degrees 90 degrees 95 degrees 100 degrees 105 degrees 110 degrees 115 degrees 120 degrees 125 degrees 130 degrees 135 degrees 140 degrees 145 degrees 150 degrees 155 degrees 160 degrees 165 degrees 170 degrees 175 degrees 180 degrees 185 degrees 190 degrees 195 degrees 200 degrees 205 degrees 210 degrees 215 degrees 220 degrees 225 degrees 230 degrees 235 degrees 240 degrees 245 degrees 250 degrees 255 degrees 260 degrees 265 degrees 270 degrees 285 degrees 275 degrees 280 degrees 290 degrees 295 degrees 300 degrees
Material according to points, can be divided into : Bakelite body and the ceramic body
