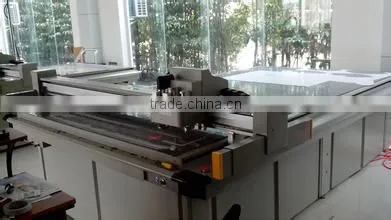

DCZ70 apply whole new design concept to ensure tools perfect interchangeable. Assemble & disassemble among different tools are convenient. Great improve the convenience to operator to ensure the high work efficiency.
The machine is equipped with plotting pen,oscillating cutting tool,creasing tool,drag knife tool which could meet customers’ different requirement. The heavy duty drag knife tool, V cutter tool, foam cutter tool could be selected as an option to special materials of different industry
Knife Tools
No. |
name |
application |
Note |
1 |
16 degree knife |
Used to cut materials between 10mm to 15mm thick. Cutting materials: corrugated board, paper board, Kraft paper, gray board, offset board, honeycomb board, KT board and compound materials, etc. |
|
2 |
20 20 degree knife |
Used to cut materials between 7mm to 10mm thick. Cutting materials: corrugated board, paper board, Kraft paper, gray board, offset board, honeycomb board, KT board and compound materials, etc. |
|
3 |
26 degree knife |
Used to cut materials between 5mm to 7mm thick. Cutting materials: corrugated board, paper board, Kraft paper, gray board, offset board, honeycomb board, KT board and compound materials, etc. |
|
4 |
Drag knife |
Used to cut materials within 3mm thick. Cutting materials:paperboard, Kraft paper, gray board,offset board, self-adhesive paper and compound materials, E corrugated etc. |
|
5 |
Special knife |
Used to cut materials within 2mm thick cutting materials:paperboard, Kraft paper, gray board,offset board and self-adhesive paper,etc. |
|
*6 |
Foam knife |
Used to cut foam and other soft materials less than 30mm thick. |
Option |
*7 |
V cut knife |
Used for making V groove on the Honeycomb board and grey board |
Option |
*8 |
Double edge knife |
Mainly for the thick and hard materials such as grey board, PP etc. |
Option |
*9 |
30 degree knife |
Mainly for the hard material such as carbon gasket, gasket, ruber, grey board, PP etc. |
Option |
Creasing Wheel
No. |
name |
application |
Note |
1 |
3mm creasing wheel |
creasing thickness: between 3mm and 5mm corrugated board. |
|
2 |
5mm creasing wheel |
creasing thickness: between 5mm and 7mm corrugated board. |
|
3 |
7mm creasing wheel |
creasing thickness: between 7mm and 10mm corrugated board. |
|
4 |
2mm creasing wheel |
creasing thickness: within 2mm,such as corrugated board, paperboard, Kraft paper, gray board,offset board, composite materials etc. |
Drawing Tool
No. |
name |
application |
Note |
1 |
Pen |
Drawing |
Specification
|
Model
|
DCZ702516 |
DCZ701713 |
DCZ701310 |
|
Effective cutting area
|
2500*1600mm |
1700*1300mm |
1300*1000mm |
|
Configuration
|
Oscillating knife,pen,creasing tool,drag knife
|
||
|
Max aped
|
1350mm/s |
||
|
Smallest cutting diameter
|
6mm |
||
|
Maximum cutting thickness
|
30mm |
||
|
Servo
|
||
|
Precision
|
≤0.1mm |
||
|
Vacuum
|
5.5kw |
||
|
Data form
|
HPGL,DXF,PDF |
||
|
Voltage
|
220v±10%50Hz |
||
|
Data port
|
parallel port,serial port,USB port
|
||
|
Data Transmission speed
|
10MB/s |
||
|
Input cushion area
|
32MB |
||
|
Occupy dimension(L*W*H)
|
3400*2460*1180mm |
2600*2160*1180mm |
2200*1860*1180mm |
|
Note
|
Other size can be customized.
|
||
