Home > Products > Flatbed digital cutter > Display Flatbed Cutting Machine
Display Flatbed Cutting Machine
- 50 Set / Sets per Month
- Shanghai
- T/T
- Automatic coating machine Coating machine
- Logistics cartonback cover forming unpacking er
- Carton packaging machinery Hardware suppliesopen the carton machine
- Beverage suppliesopen the carton packing equipment Making up plantopen the carton machine
- Logistics cartonback cover forming unpacking er Hardware suppliesopen the carton packing equipment
- Bakery and confectioneryopen the carton machine
Product Details
Condition: | New | Automatic Grade: | Automatic | Usage: | Paper Forming Machine |
Place of Origin: | Shanghai, China | Brand Name: | AOKE | Model Number: | DCZ50 |
Voltage: | 220V | Power(W): | 1500 | Certification: | CE,ISO9001 |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

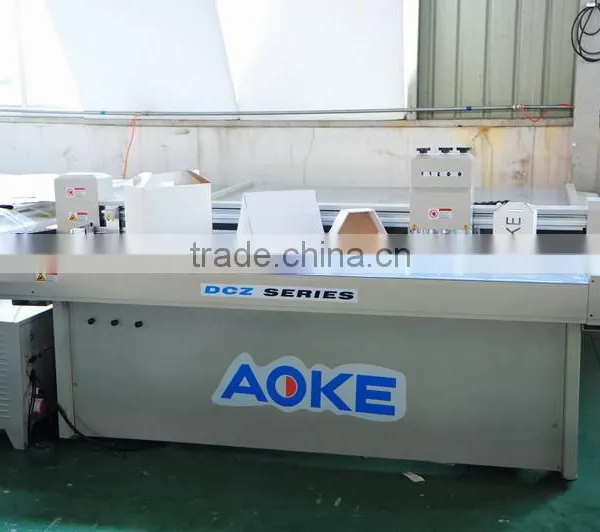

DCZ50 series is equipped with drag knife tool, it enrichs cutting tools application and improve the machine’s capability. It saves time of tool changes, meanwhile the through cutting and half cutting could be done on one sample making work.

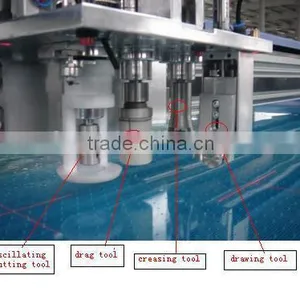

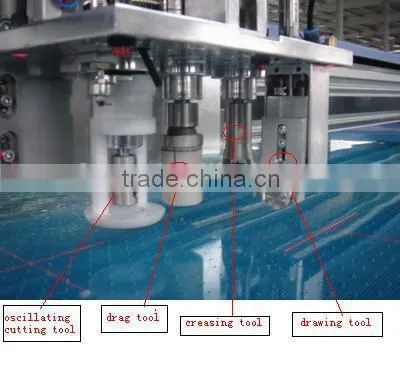

The machine is equipped with plotting pen,oscillating cutting tool,creasing tool, drag knife tool which could meet customers’ different requirement. The heavy duty drag knife tool and the video registration system could be selected as an option to special materials of the sign making industry and for automatically cutting of the printed materials
Specification
Model
| DCZ502516 | DCZ501713 | DCZ501310 |
Effective cutting area
| 2500*1600mm | 1700*1300mm | 1300*1000mm |
Configuration
| Oscillating knife,pen,creasing wheel,drag knife
| ||
Max aped
| 1000mm/s | ||
Smallest cutting diameter
| 6mm | ||
Maximum cutting thickness
| 15mm | ||
Control line and driver
| Servo
| ||
Precision
| ≤0.1mm | ||
Vacuum
| 5.5kw | ||
Data form
| HPGL,DXF,PDF,AI | ||
Voltage
| 220v±10%50Hz | ||
Data port
| PCI port | ||
Data Transmission speed
| 10MB/s | ||
Input cushion area
| 32MB | ||
Occupy dimension(L*W*H)
| 3165*2545*1250mm | 2365*2245*1250mm | 1960*1935*1250mm |
Note
| Other size can be customized.
|
