Home > Products > LED Display > Three Bit 0.56" LED Voltage Digital Display Panel analog dc Voltmeter

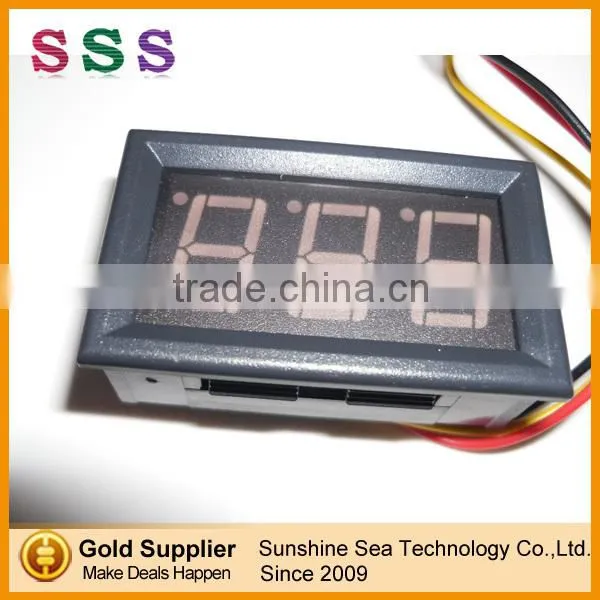

Three Bit 0.56" LED Voltage Digital Display Panel analog dc Voltmeter
USD $4 - $6
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
You May Like
-
Digital DC voltmeter measuring DC0-1000V AMC72-DV/M panel voltage meter 4-20mA analog output
-
AMC48-AV single phase AC voltmeter 220V LED voltage display AC electronic voltmeter
-
voltage meter with RS485 Modbus-RTU AMC48-AV/C single phase AC voltmeter 220V LED voltage display AC electronic voltmeter
-
Digital 220v Panel electric voltmeter AC Single Phase Meter Voltmeter
-
digital current metered AMC72L-AI3 three phase ammeter LCD current display AC electronic meter
-
one analog output AMC72L-AI3/M three phase ammeter LCD current display AC electronic current meter programmable DC4-20mA
Product Details
| Brand Name: | SSS | Model Number: | YB27 | Display Type: | Analog and Digital |
| Measuring Range: | 0-100V | Accuracy Class: | 1% (± 1 word) | Operating Temperature: | -10 ~ +65 ℃ |
| Dimensions: | 0.56INCH |
Product Description
Specifications
1,Original New LED Voltmeter2,4.5-30V
3,Made in China
4,Fast Shipping
5,CE&RoHS
Three Bit 0.56" LED Voltage Digital Display Panel analog dc Voltmeter
What is Specifications of our panel analog dc voltmeter ?
Specifications:
The LED Voltage's volume is small, range DC0-100V,need to add auxiliary power supply to work.The auxiliary supply voltage range wide up to 4.5-30v, it can work at 5v,9v,12v,24v, etc.,without the regulation.It has three bit and easy access to connect the lines of the car/motorcycle/battery car,with the reverse polarity protection,the line will not burn even reversed. It can use for monitor the battery voltage and know the voltage status in time, and can use for measure the other product's voltage. Please note the top voltage can not be exceed 30v, or it will burn.
Technical parameters:
Working voltage: 4.5 ~ 30V (with reverse polarity protection)
Test voltage: 0 ~ 99.9V
Working current: <20mA
Display: 0.56 "LED, red color
Dimensions: 48 × 29 × 21 mm
Mounting hole: 45.5 × 26.5 mm
Measuring rate: ≥ 500mS / times
Accuracy: 1% (± 1 word)
Extreme working conditions:
Minimum operating voltage: +4.5 V
Maximum Operating Voltage: +30 V
Operating Temperature: -10 ~ +65 c
Operating Humidity: 10 ~ 80% (non-condensing)
Operating Pressure: 80 ~ 106kPa
Sunlight: No direct exposure
Main features:
1 product stability, high accuracy measurement
2.Overall standard size, easy installation
3 power supply with polarity protection circuit
The LED Voltage's volume is small, range DC0-100V,need to add auxiliary power supply to work.The auxiliary supply voltage range wide up to 4.5-30v, it can work at 5v,9v,12v,24v, etc.,without the regulation.It has three bit and easy access to connect the lines of the car/motorcycle/battery car,with the reverse polarity protection,the line will not burn even reversed. It can use for monitor the battery voltage and know the voltage status in time, and can use for measure the other product's voltage. Please note the top voltage can not be exceed 30v, or it will burn.
Technical parameters:
Working voltage: 4.5 ~ 30V (with reverse polarity protection)
Test voltage: 0 ~ 99.9V
Working current: <20mA
Display: 0.56 "LED, red color
Dimensions: 48 × 29 × 21 mm
Mounting hole: 45.5 × 26.5 mm
Measuring rate: ≥ 500mS / times
Accuracy: 1% (± 1 word)
Extreme working conditions:
Minimum operating voltage: +4.5 V
Maximum Operating Voltage: +30 V
Operating Temperature: -10 ~ +65 c
Operating Humidity: 10 ~ 80% (non-condensing)
Operating Pressure: 80 ~ 106kPa
Sunlight: No direct exposure
Main features:
1 product stability, high accuracy measurement
2.Overall standard size, easy installation
3 power supply with polarity protection circuit
What is Advantages of our panel analog dc voltmeter ?
- Competitive factory price.
- Professional purchase team to serve you.
- All our productions are checked by QC before shipping.
What is Refund & Replacement of our panel analog dc voltmeter ?
- We provide 30 days warranty for brand new goods only.
- If the item you purchase from us are not same as we promised, that is they don't work to manufacturers specifications, model mistake, simply return them to us for replacement or refund.
- If the items is defective, pls notify us within 3 working days on receiving it.
- Our sales representative will be here always serve for you.
