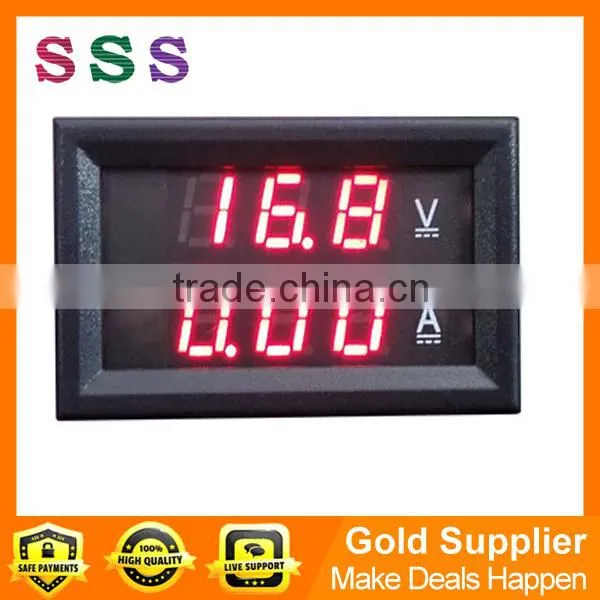

Three Bit Dual LED Digital DC4.5-30V 0-100A Voltmeter Ammeter Voltage Amps Meter Power DC4.5~30V
US$ 2 - 3.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SSS
Model Number:
YB27va
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Three Bit LED Voltage Amp Digital Display Analog DC VoltmeterUS$ 2 - 3.5MOQ: 1 Piece -
Voltmeter&Ammeter LED Digital Dual Display DC4.5-30V AC0-2A,5A,10A,50A,100A MeterUS$ 2 - 3.5MOQ: 1 Piece
-
0.28"LED Dual Display USB Voltage 3.20-15.0v and Current 0-3A Detector MeterUS$ 2 - 3.5MOQ: 1 Piece
-
DC0-100V Digital Dual Display DC Voltmeter and AmmeterUS$ 2 - 3.5MOQ: 1 Piece
-
0.56inch DC4.5-30V Two-wire LED Digital dc VoltmeterUS$ 4 - 6MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
SSS
Model Number
YB27va
Display Type
Analog and Digital
Measuring Range
DC4.5-30V
Accuracy Class
1% (± 1 word)
Operating Temperature
-10 ~ +65 ℃
Dimensions
0.28 Inch
Three-wire Dual LED Digital DC100V 10A Voltmeter Ammeter Voltage Amps Meter Power DC4.5~30V
What is Specifications of our digital dc voltmeter ?
-Brand New
-2 in 1 function Voltmeter Ammeter
- Dual color LED Display (Blue andRed)
- Voltages and Amps reading at the same time in display
-This meter test of Voltages and Amps, power supply can taken from the test circle, no additional power supply
- Power supply DC 4.5~30V range (Attention: The maximum of input voltage cannot be exceed of 30V, otherwise would be burnt)
-This meter have three wire for easy to connect a car /battery car/ motorcycle car which can monitor to the battery voltage status. Another products can also use for voltage and current measurement intent.
Features:
-Dual 0.28 " LED, display (Blue and Red) colors
-Power supply DC4.5V~30V
-Measuring range: DC0V~100V (Resolution: 0.1V), DC0~10A (Resolution: 0.01A),50A,100A( Resolution: 0.1A)
-0-10A No need use shunt for measure amps,More than 10A need use shunt
-Measurement rate: ≥ 500mS / times
-Measurement accuracy: 1% ± 1
-Operating Current <60mA
-Operating Temperature: -10°C to +65°C
-Operating Humidity: 10 to 80% (non-condensing)
-Working pressure: 80 ~ 106kPa
-Sun exposure: no direct exposure
-Dimensions: 48 × 29 × 21 mm
-Cutout: 45.5 × 26.5 mm
Hot Spot:
Volts: 3.5-30 Vdc. Amps: 0-5A. Volts and Amps on the same compact digital panel meter. Built in shunt. Bright, red LED display. Easy to connect; three-wire friction-lock connector plugs into back of meter. Snap-mounts into 46 x 27mm (1.80" x 1.05") rectangular cut-out. Black bezel, 47.5 x 28.5mm.
