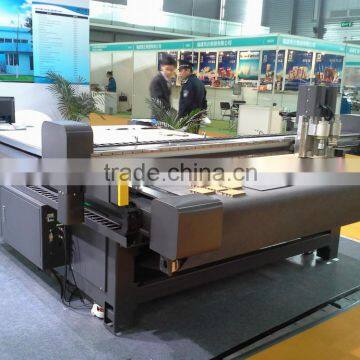

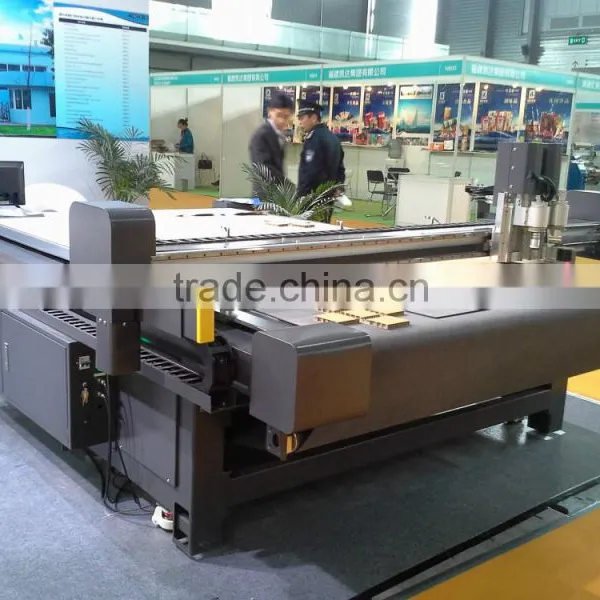

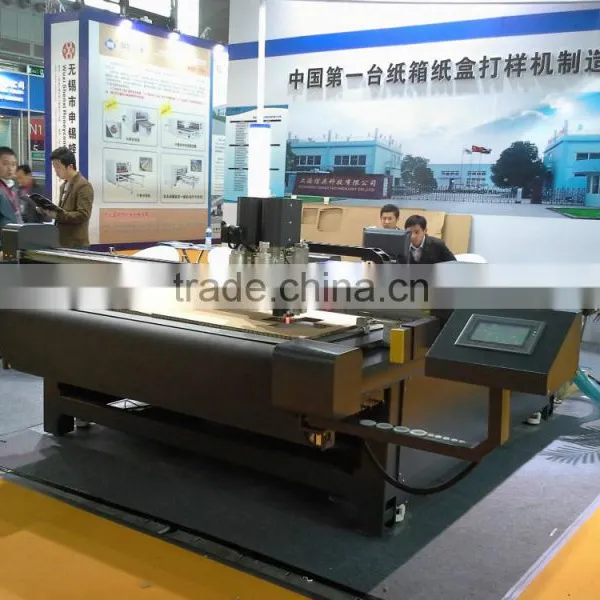

DCZ75 series high speed flatbed digital cutter is AOKE new generation cutting system for the industry such as carton packaging, printing, signage&graphics, display&stands, etc. It has two independent module design to assure the good expansibility and convenient tools exchange. It is equipped with versatile tools like: High frequency oscillating knife, creasing tool, V cutting tool, foam cutting tool, drawing tool, drag knife. This flatbed cutter can cut materials up to 60mm. And it is capable with a variety of materials cutting such as corrugated board, card board, grey board, honeycomb board, K board, PP foam board, PE foam, EVA foam, plastic sheet, and other printed sheet.
DCZ75 takes the whole new design with steel structure machine body, this greatly improves the stability of the working performance and the life of the machine. Meanwhile, the DCZ75 has tool height auto-adjust system which makes the tool cutting height adjustment convenient.
The main features of DCZ75 as below:
1. New steel frame machine body to improve the working stability and prolong the machine life;
2. Auto tool height adjusting system to make the tool hight adjustment convenient;
3. Media cutting depth up to 60mm, boarden the cutting range of materials;
4. New vacuum zone design, improve sucking energy to assure the cutting performance
Specification:
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Knife tool
|
No. |
name |
application |
Note |
|
|
1 |
16 degree knife |
Used to cut materials between 10mm to 15mm thick. Cutting materials: corrugated board, paper board, Kraft paper, gray board, offset board, honeycomb board, KT board and compound materials, etc. |
|
|
|
2 |
20 degree knife |
Used to cut materials between 7mm to 10mm thick. Cutting materials: corrugated board, paper board, Kraft paper, gray board, offset board, honeycomb board, KT board and compound materials, etc. |
|
|
|
3 |
26 degree knife |
Used to cut materials between 5mm to 7mm thick. Cutting materials: corrugated board, paper board, Kraft paper, gray board, offset board, honeycomb board, KT board and compound materials, etc. |
|
|
|
4 |
Drag knife |
Used to cut materials within 3mm thick. Cutting materials:paperboard, Kraft paper, gray board,offset board, self-adhesive paper and compound materials, E corrugated etc. |
|
|
5 |
Foam knife |

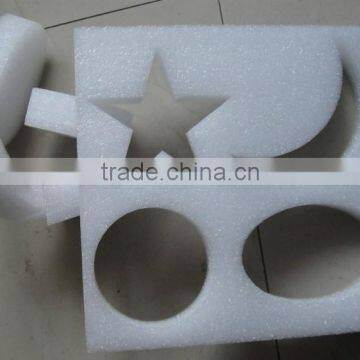

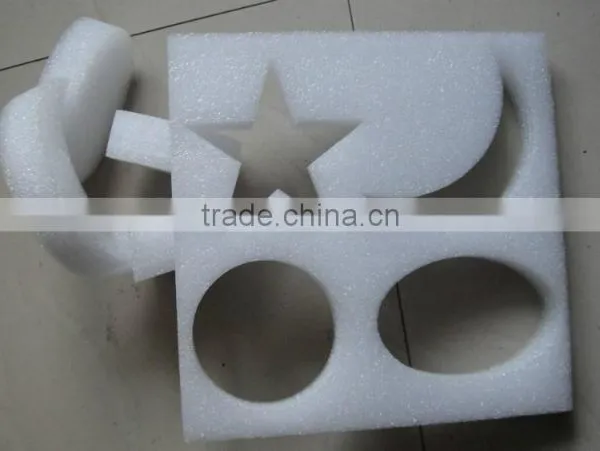

Used to cut foam and other soft materials less than 60mm thick. |
|
|
6 |
V cut knife |
Used for making V groove on the Honeycomb board and grey board |
|
|
7 |
Double edge knife |
Mainly for the thick and hard materials such as gray board, PP etc. |
||
Creasing wheel
|
No. |
name |
application |
Note |
|
1 |
3mm creasing wheel |
creasing thickness: between 3mm and 5mm corrugated board. |
|
|
2 |
5mm creasing wheel |
creasing thickness: between 5mm and 7mm corrugated board. |
|
|
3
|
7mm creasing wheel |
creasing thickness: between 7mm and 10mm corrugated board. |
|
|
4 |
2mm creasing wheel |
creasing thickness: within 2mm,such as corrugated board, paperboard, Kraft paper, gray board,offset board, composite materials etc. |
