Terry towel rapier loom weaving machine 737
- 500 Set / Sets per Month
- Ningbo or Shanghai
- T/T
Product Details
Condition: | New | Production Capacity: | 100 meters per day, 500g-800g per square meter | Place of Origin: | Zhejiang, China |
Brand Name: | GOLDEN GULF | Model Number: | 737 | Voltage: | 380v |
Power(W): | 1.8-2.2KW | Dimension(L*W*H): | 4706*1936*2220MM(230cm/90") | Weight: | 1900KG-2300KG |
Certification: | ISO9001 | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

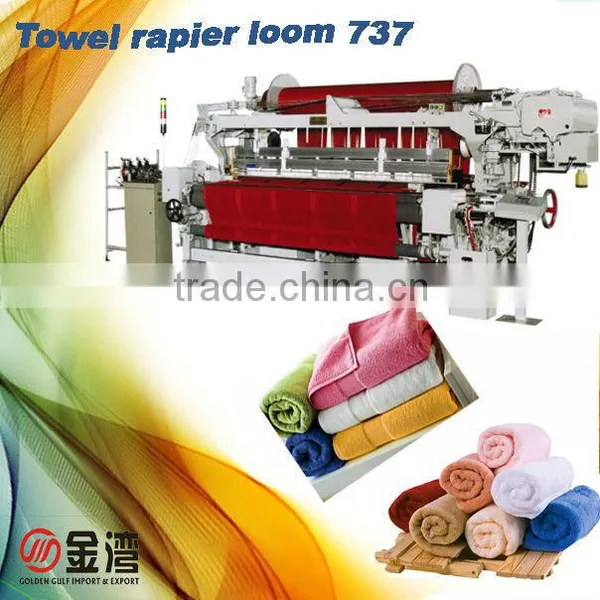

Model 737 Towel rapier loom
Main datas:
Reed width (cm) | 200(78'') 230(90'')260(102'')280(110'') |
Rotation speed (R.P.M) | 240RPM (78'') |
Weft selection | 6,8 colors |
Yarn count: | cotton: 7Ne-60Ne |
wool: 12Nm-100Nm | |
chemical fabric: 100D-650D | |
Dia of warp beam(mm) | terry 600mm ground 600mm |
Dia of rolling up(mm) | 400mm |
Let-off type | up: positive electric let-off |
down: intermittent mechanical let-off | |
Terry rising type | cam type movable read terry rising |
Height of terry(mm) | step less adjustment from 2 to 12times |
Shedding mechmism | upper placed mechanical dobby spring reversing(24pages of shaft) |
Number of heddle frame | 16pages |
Weft stop | piezoelectric control |
Warp stop | 2rows electric warp stop |
Electric control | P.l.C |
Motor power(KW) | 1.8KW-2.2KW |
Weight (KG) | 1900KGS-2300KGS |
Overall size(mm)LxWxH | 4706x1936x2220(230/90'') |
Feature:
1. Adopts the cam with eccentric shaft structure for making terry motion and replaces the old type of knocking bill motion structure. It assures the machine having high reliability of making terry and regulating conveniency.
2. Adopts shout crank arm beating-up motion, increasing greatly the beating-up force during weaving that assures the enough strength the weave the heavy towel.
3. Thicker weft beating shaft assures enough beating rigidity, it can weaving the wide fabric more than 2800mm.
4. Adopts optimized six linkages weft insertion structure, make the weft insertion curve more soft.
5. The two electromagnets which controlled the terry raising, controlled by technical program which set by electric control system, It can weaving high and low terry.
6. The reed seat and other main parts made up of aluminum alloy, make the machine running faster more stable, more than 200rom speed make it the perfect model to replace the low speed towel rapier loom.

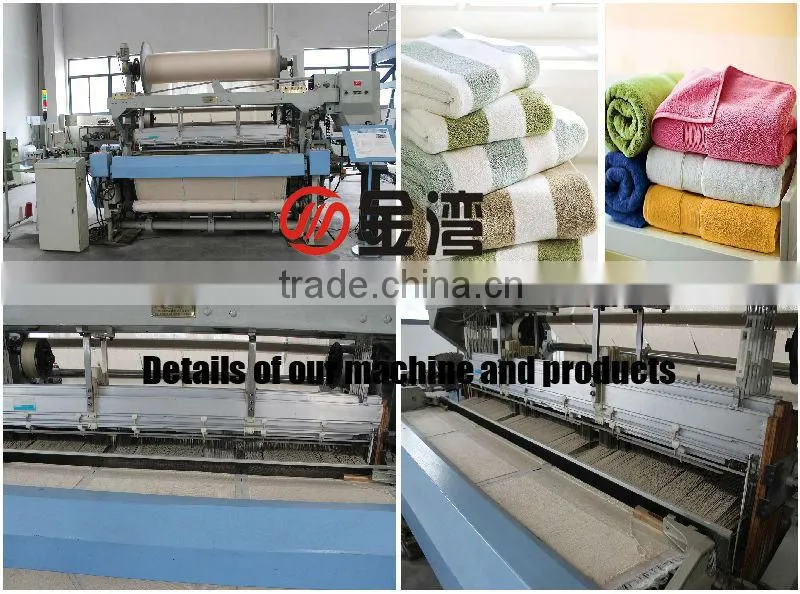

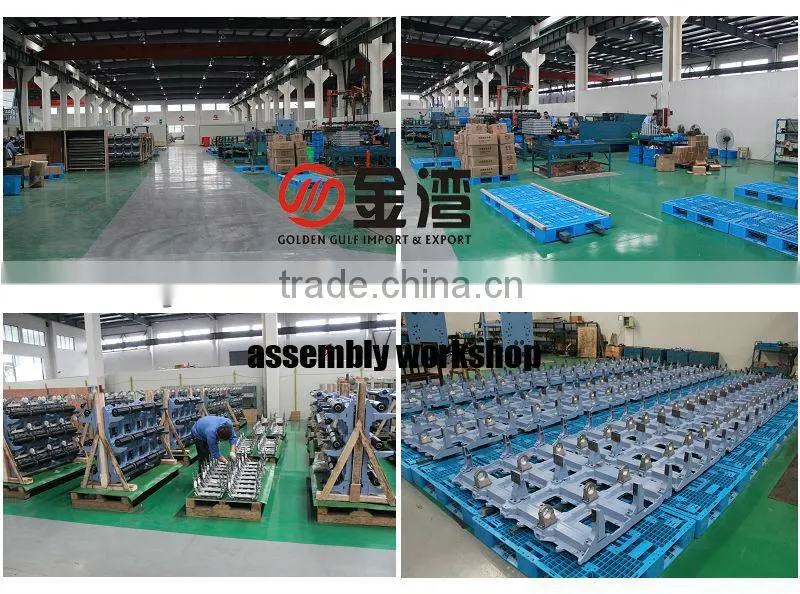

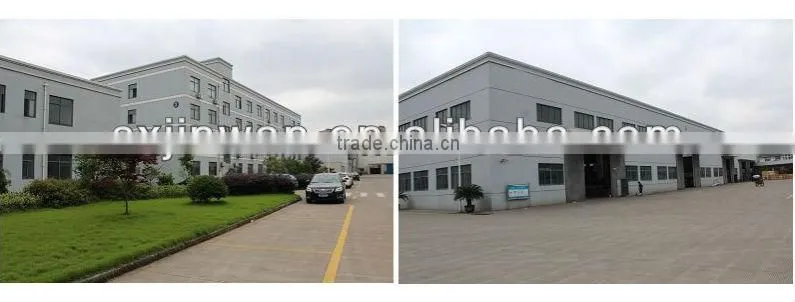

OUR FACTORY, MACHINE, ASSEMBLY WORKSHOP,AND SAMPLE ROOM SHOW OUR SOLID STRENGTH AND TECHNOLOGY
