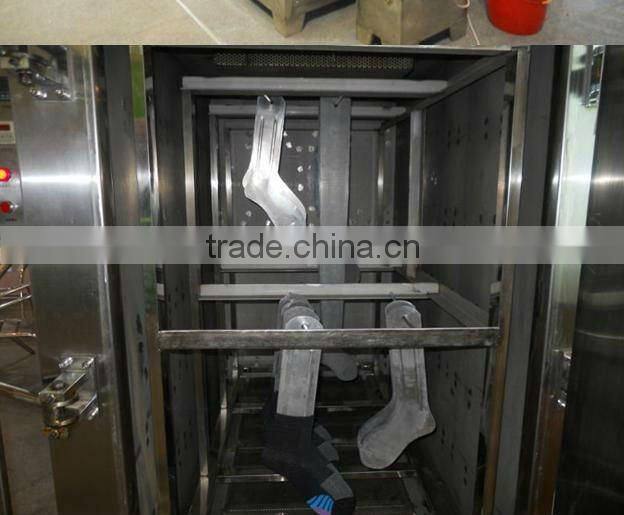

Steam Socks Setting Machine 100-electric heating
Fuel Model Comparison Table: | ||
Dimension | Unit | Data |
Inner dimension | mm | 1000*800*1200 |
overall dimension | mm | 2000*1100*1800 |
Main Technical Parameters: | ||
Name | Unit | Data |
Elecreicity | KW | 16 |
Blower | KW | 1 |
Working temperature | °C | 60-200 |
Power | V / Hz | 380/50 |
Weight | Kg | 500 |
The temperature into the boiler pressure to comparison table: | ||||
Boiler pressure | 1kg | 2 kg | 3 kg | 4 kg |
Temperature | 118°C | 130°C | 145°C | 151°C |
Boiler pressure | 5 kg | 6 kg | 7 kg | 8 kg |
Temperature | 158°C | 163°C | 166°C | 171°C |
Remind: This product should be coupled with stereotypical box shape 10 degrees Celsius | ||||
Features
With two series including electric heating and fuel type for your option ,adopt special air-intake mode and circulate air design to even the indoor temperature effectively.
Features for electric heating type
With flexible and convenient operations ,each of wet-apray, setting and drying time can be regulated individually to meet different requirement of different woven fabrics and guarantee the setting effect so that the customers requirements can be satisfied ,At the same time ,adopt intellingigent monitoring so that the system can be protected when under overheating or water-lacking state, so it is safe and reliable ,in addition, there are many models for your option ,also special order are available.
Features for setting machines
The main features for full-automation setting machine with high-temp steam drying are shown as follows:
1)Safety---Compared other high-pressure boiler, there is no any safety hiding-trouble absolutely
2)Beauty Made of purified stainless steel
3)Environmental protection adopt diesel oil as fuel, so it is cleaner when compared
4)Energy-saving available to control the machine as actual demand so that the energy wasting can be avoided effectively
5)High-efficiency Integrate wet-spray,high-temperature setting,dehydrating and alike
